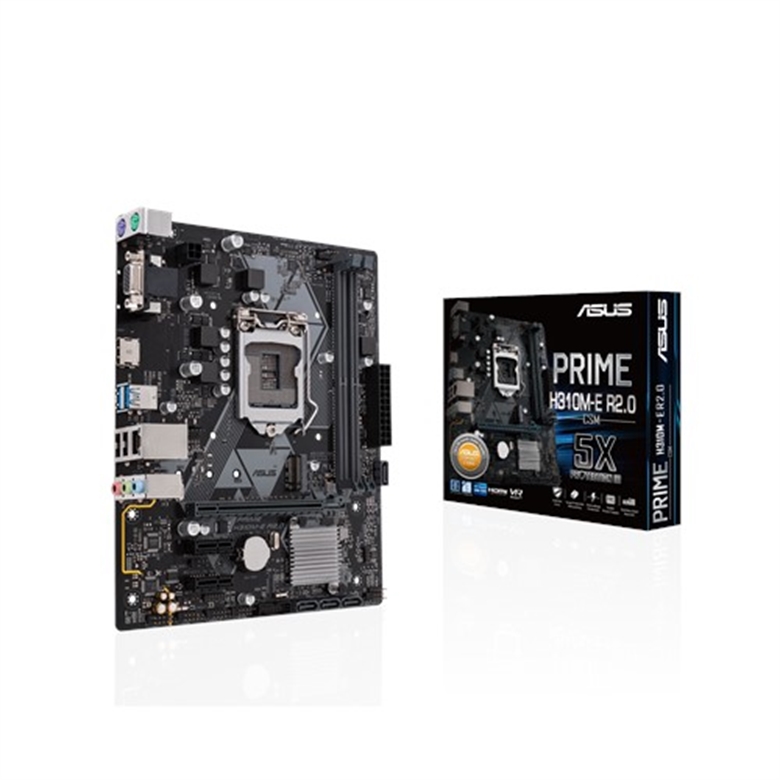

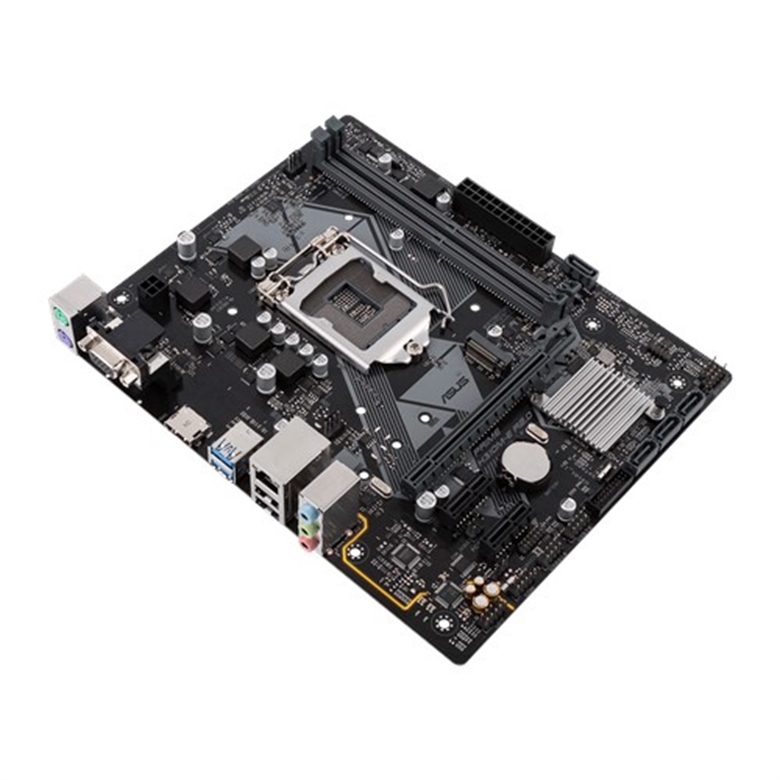

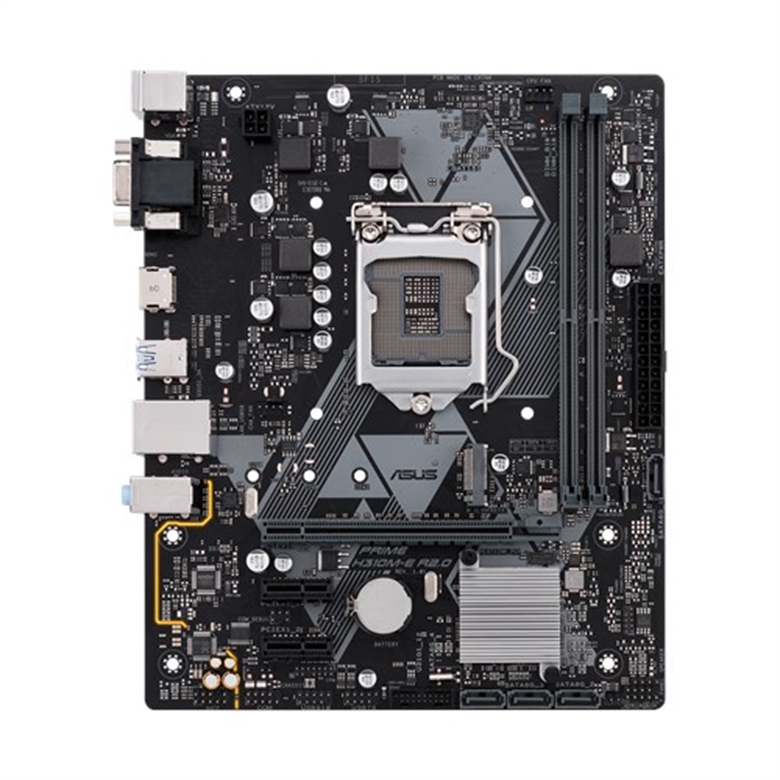

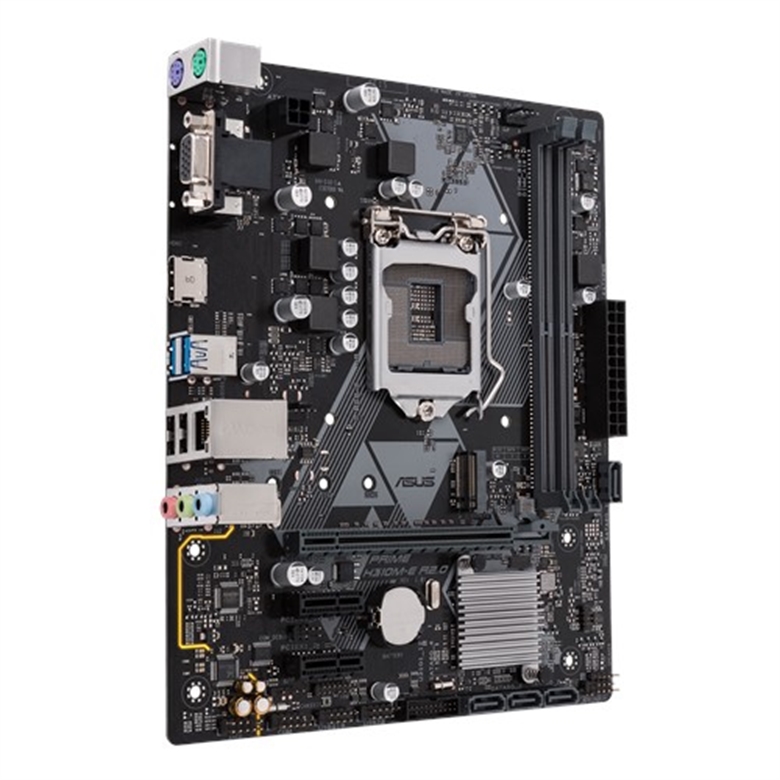

ASUS PRIME H310M-ER2.0 - Motherboard, Intel Socket 1151, mATX, HDMI 1.4b, DVI-D, USB 3.1 Gen1, M.2 & Sata 6Gb/s, 32GB DDR4 Max Memory
-
ASUS PRIME H310M-ER2.0Out of stock$70.33* Taxes not included
ASUS Prime 300 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into the latest 8th Generation Intel® Core™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime 300 Series motherboard, you build smart, easy and affordably.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | ASUS |
| Series | PRIME |
| Model | H310M-ER2.0 |
| Part Number | PRIME H310M-ER2.0 |
| Chipset | Intel |
Supported CPU |
|
| CPU Socket | LGA 1151 |
| CPUs Supported | 9th/8th gen Intel Core, Pentium and Celeron |
Memory |
|
| Memory Slots | 2x slots |
| Memory Type | DDR4
|
| Maximum Memory | 32 GB |
| Channel Support | Dual-Channel |
Expansion Slots |
|
| PCIe 3.0 | 1 x PCIe 3.0/2.0 x16 (x16 mode, gray) |
| PCIe 2.0 | 2 x PCIe 2.0 x1 |
Storage |
|
| SATA 6Gb/s | 4x SATA 6Gb/s |
| M.2 | 1x M.2 Port |
| SATA RAID | No |
| Intel Optane | No |
| U.2 | No |
Onboard Audio |
|
| Audio Chipset | Realtek® ALC887 CODEC |
| Audio Channels | 7.1 Channel |
Video |
|
| Onboard Video Support | Intel HD Graphics support |

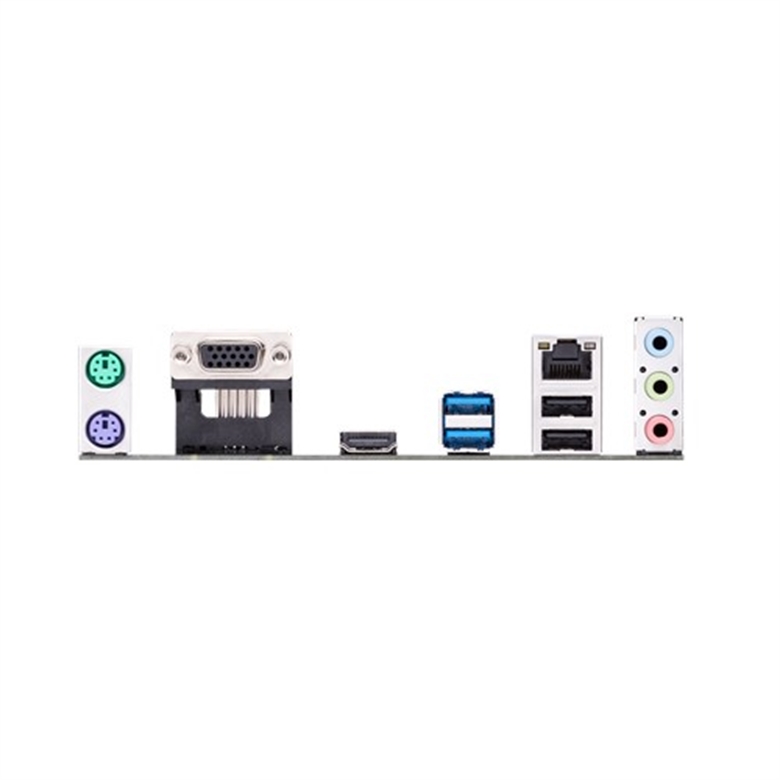

Rear Panel Ports |
|
| Rear Panel Ports | 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps 2 x USB 2.0 3 x Audio jack(s) |
Internal Connectors |
|
| Onboard USB | 1x USB 3.1 Gen 1(up to 5Gbps) (connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin))2 x USB 2.0 (connector(s) support(s) additional 4 USB 2.0 port(s)) |
| Power Pins | 1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s) |
| Other connectors | 1 x TPM header
1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) |
Physical Specifications |
|
| Form Factor | Micro ATX |
| Dimensions(cm) | 22.6 x 18.5 cm |
| LED Lighting | No |
Features |
|
| Multi-GPU Support | No |
| BIOS | 1x 128 Mb flash, UEFI AMI BIOS |
| Special Features | ASUS 5X Protection III
ASUS OptiMem ASUS EPU ASUS Quiet Thermal Solution ASUS EZ DIY ASUS Q-Design |
Included in Package |
|
| Included in package | User´s manual
I/O Shield, 2 x SATA 6Gb/s cable(s) 1 x M.2 Anchor 1 x Supporting DVD |
