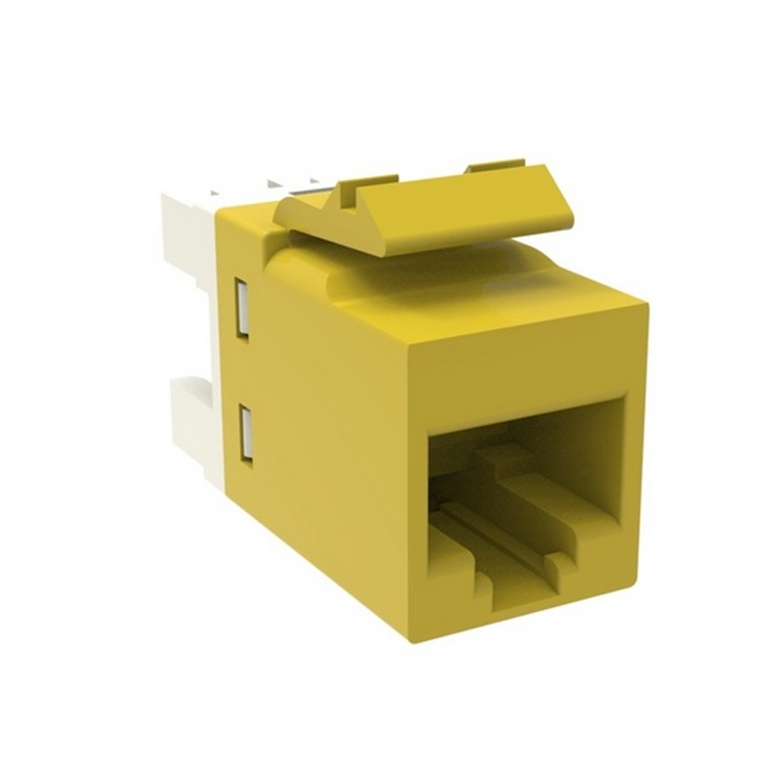

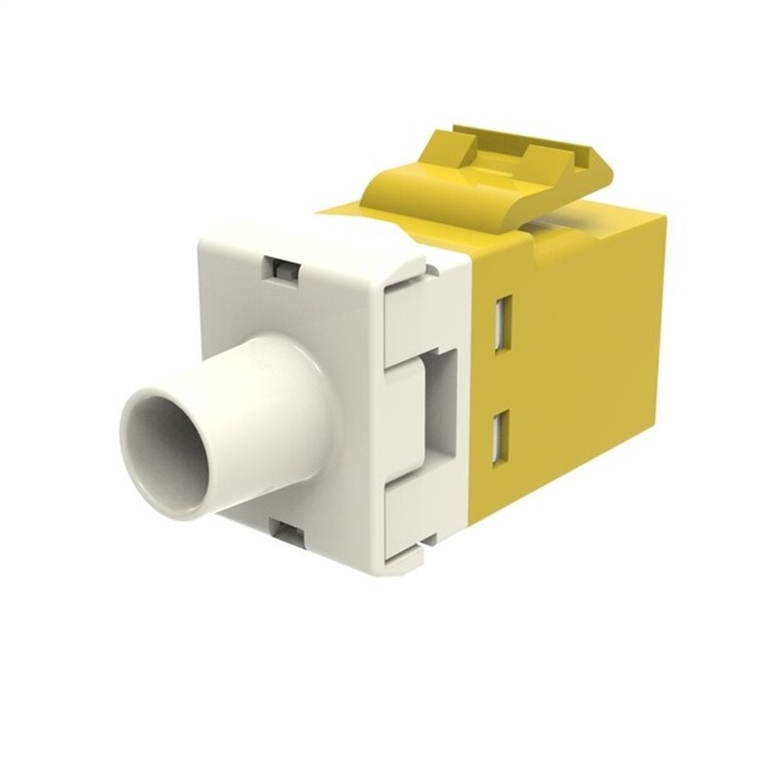

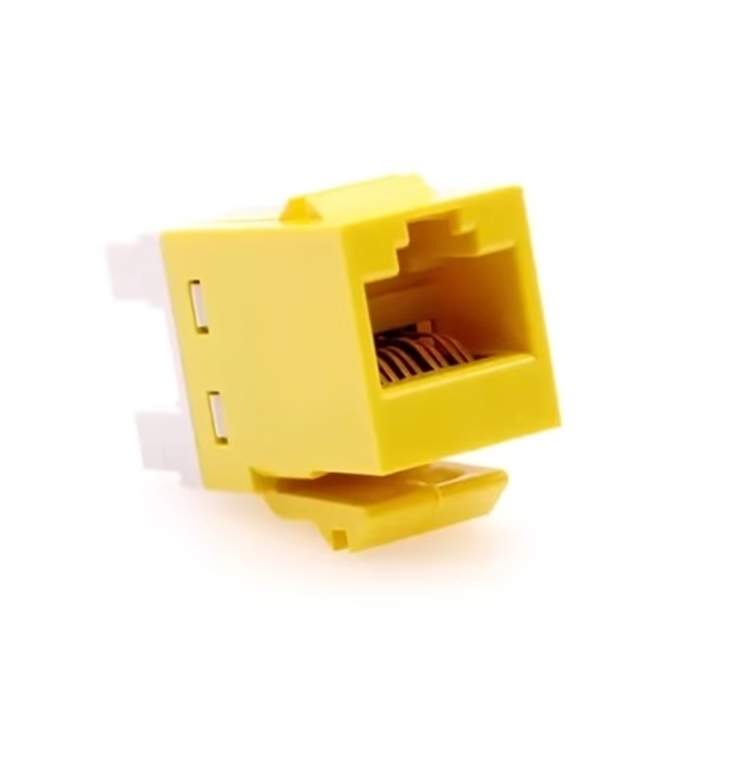

CommScope 1375055-8 - Cat 6 U/UTP RJ45 Modular Jack, Unshielded, Yellow, Without Dust Cover
-
CommScope 1375055-8 | Cat 6 | RJ45 | YellowIn stock$8.35
-
In stock$11.42
The CommScope 1375055-8 SL Series RJ45 Modular Jack is designed for telecommunications racks, blank patch panels, and faceplates in corporate networks. Thanks to its Category 6 performance and IDC termination type, it offers excellent support for high-speed Gigabit data transmission, as well as a fast and efficient installation. In addition, it features a vibrant yellow color ideal for visual subnet organization and gold-plated contacts that ensure maximum durability against corrosion and wear.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | CommScope |
| Model | 1375055-8 |
| Type | Jack |
Details |
|
| Quantity | 1x Unit |
| CAT Category | CAT 6 |
| Specifications | - Cable Type: Unshielded
- Conductor Type: Solid | Stranded - Integrated Dust Cover Type: None - Mounting: SL Series faceplates and panels - Operating Temperature: -10 C to +60 C (+14 F to +140 F) - Remote Powering: Fully supports IEEE 802.3bt (Type 4) - Termination Punchdowns, minimum: 20 times - Termination Tool: 110 Punchdown tool | JTT Termination tool - Termination Type: IDC - Transmission Standards: ANSI/TIA-568.2-D | ISO/IEC 11801 Class E - Wiring: T568A | T568B |
Features |
|
| Features | - Compatible Cable Diameter, maximum: 0.58 cm
- Compatible Insulated Conductor Diameter, maximum: 0.145 cm - Contact Plating Thickness: 1.27 µm - Flammability Rating: UL 94 V-0 - PoE Durability: Supports Type 4 (90 W) applications greater than 3000 cycles - Safety Standard: cULus |
Dimensions |
|
| Dimensions(cm) | - Height 16.13 mm | 0.635 in
- Width 14.48 mm | 0.57 in - Depth 30.48 mm | 1.2 in |
Warranty
Warranty:
CommScope Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with CommScope for you. You may also contact CommScope directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by CommScope and are final.
