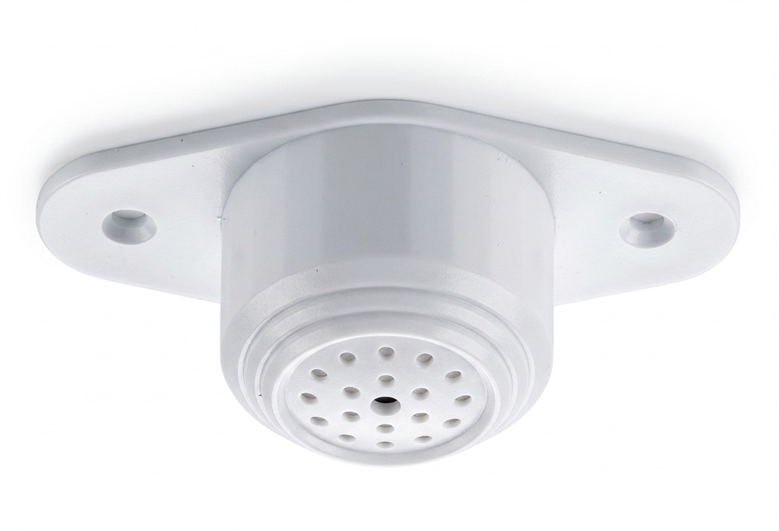

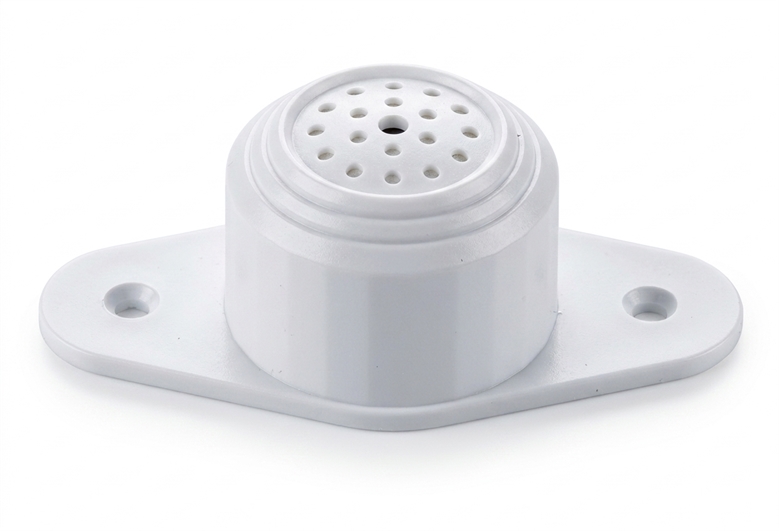

Dahua DH-HAP100 - Omnidirectional Pinhole CCTV Microphone, High Fidelity, 20Hz-20kHz, 5-40m, 12V DC
-
Dahua DH-HAP100 | Pinhole CCTV Microphone | Omnidirectional | 20Hz-20kHzIn stock$13.26* Taxes not included
Capture high-fidelity audio to complement surveillance systems with cameras or storage devices that support audio. The Dahua DH-HAP100 is an omnidirectional condenser pinhole microphone designed for sound acquisition in areas from 5 to 40 m, featuring a 20Hz20kHz frequency response and 70dB signal-to-noise ratio. Its compact design enables discreet installation, while built-in protection helps guard against ESD, lightning, and power-supply polarity reversal.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Dahua |
| Model | DH-HAP100 |
| Type | Microphone |
Specifications |
|
| Specifications | - Scope: 540 m
- Sensitivity: -40 dB (-45 to -20 dB adjustable) - Frequency Response: 20 Hz20 kHz - Directional Characteristic: Omni-directional - SNR: 70 dB (1 m, 40 dB sound source SPL) - Dynamic Range: 104 dB (1 kHz at Max dB SPL) - Maximum Sustainable Sound Pressure: 120 dB SPL (1 kHz, THD 1%) - Output Impedance: 600 (non-equilibrium) - Output Signal Amplitude: 2.5 Vpp / -25 dB - Working Voltage: DC 12 V (915 V) - Working Current: 60 mA (50100 mA) - Working Temperature: -30 C to +70 C - Color: White - Outer Shell: PC - Interface: RCA male connector and DC power connector - Certification: CE/FCC |
Features |
|
| Features | - High-fidelity omni-directional condenser microphone
- Pinhole design for discreet and hidden installation - Designed for sound acquisition within 540 m - 20 Hz20 kHz frequency response - 30 kV air/contact ESD protection - Built-in lightning protection - Power supply reverse-polarity protection - Electrostatic protection - Compatible with cameras or storage devices with audio functionality |
Dimensions |
|
| Dimensions(cm) | 6.3 × 3.0 × 2.2 cm |
| Weight | 0.034 kg (0.07 lb) |
Warranty
Warranty:
Dahua Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Dahua for you. You may also contact Dahua directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Dahua and are final.
