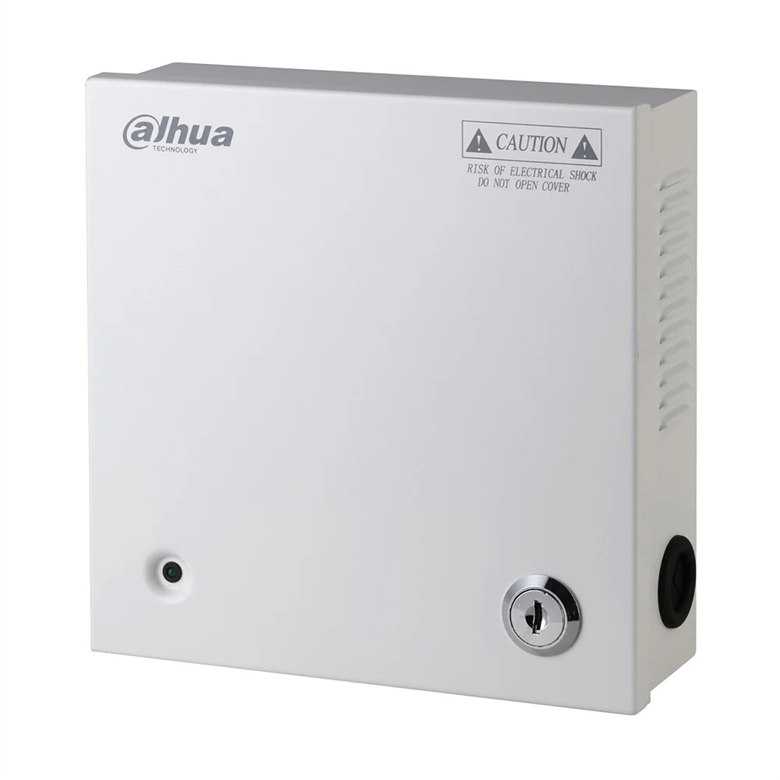

Dahua DH-PFM341-9CH - CCTV Distributed Power Supply Box, 9 Channels, 12V DC, 5A, Lockable Metal Enclosure
-
Dahua DH-PFM341-9CH | 9-Channel CCTV Power Supply BoxIn stock$38.64* Taxes not included
Power up to 9 security cameras from a single reliable and organized power source. The Dahua DH-PFM341-9CH features 9 independent 12V DC outputs, 5A total output capacity, individual LED indicators, and protection against overload, overvoltage, and overcurrent for dependable operation. Its lockable metal enclosure helps secure connections from unauthorized access. Ideal for professional CCTV surveillance installations.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Dahua |
| Model | DH-PFM341-9CH |
| Type | Power Adapter |
Specifications |
|
| Specifications | - Input Voltage Range: AC90~264V
- Outputs: 9 × 12VDC (-3% ~ +7%) - Maximum Output Current: 5A - Output Protection: 9 replaceable fuses, max. 2.5A per output - Efficiency: 84% - No Load Power Consumption: <0.5W - Internal ON/OFF Power Switch: Yes - Individual LED Output Indicator: Yes - Surge Protection: - Line-to-Ground: 4000V - Line-to-Line: 2000V - ESD Protection: - Contact Discharge: 6000V - Air Discharge: 8000V - Operating Temperature: -20C to +45C - Operating Humidity: <90% RH - Installation: Wall Mount - Certifications: - CE (EN55032, EN55020) - FCC Part 15 Class B - ISED ICES-003 Issue 6 |
Features |
|
| Features | - 9-channel CCTV power distribution box
- Individual LED indicator for each output - Metal enclosure with lock and key - Wide AC90~264V input voltage range - Overload, over-current and over-voltage protection - Anti-static and anti-interference protection - Replaceable fuse protection on each channel - Professional wall-mount design - High reliability with factory quality testing and aging test |
Dimensions |
|
| Dimensions(cm) | 16.5 × 16.5 × 5 cm |
| Weight | 0.9 kg |
Warranty
Warranty:
Dahua Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Dahua for you. You may also contact Dahua directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Dahua and are final.
