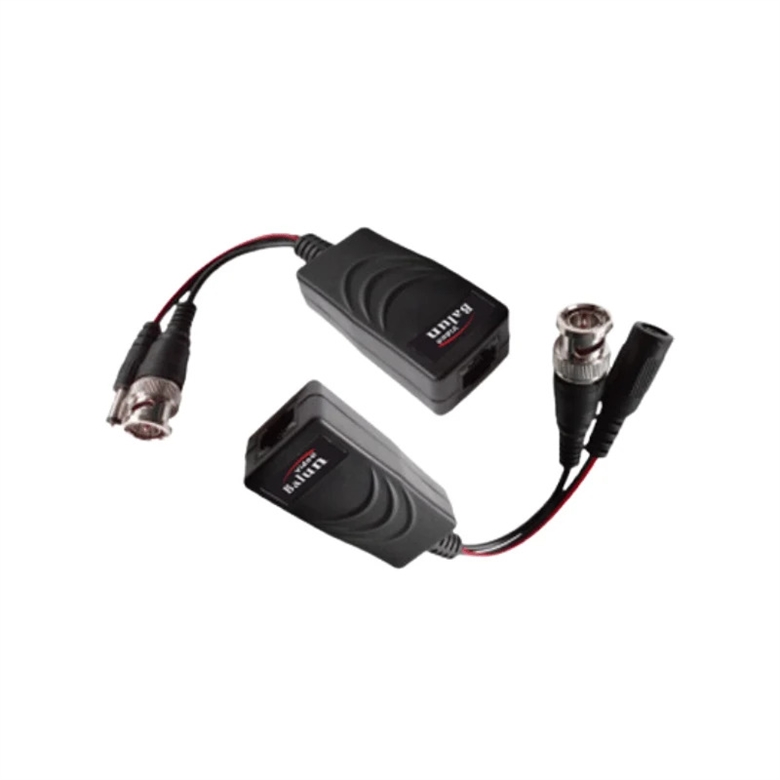

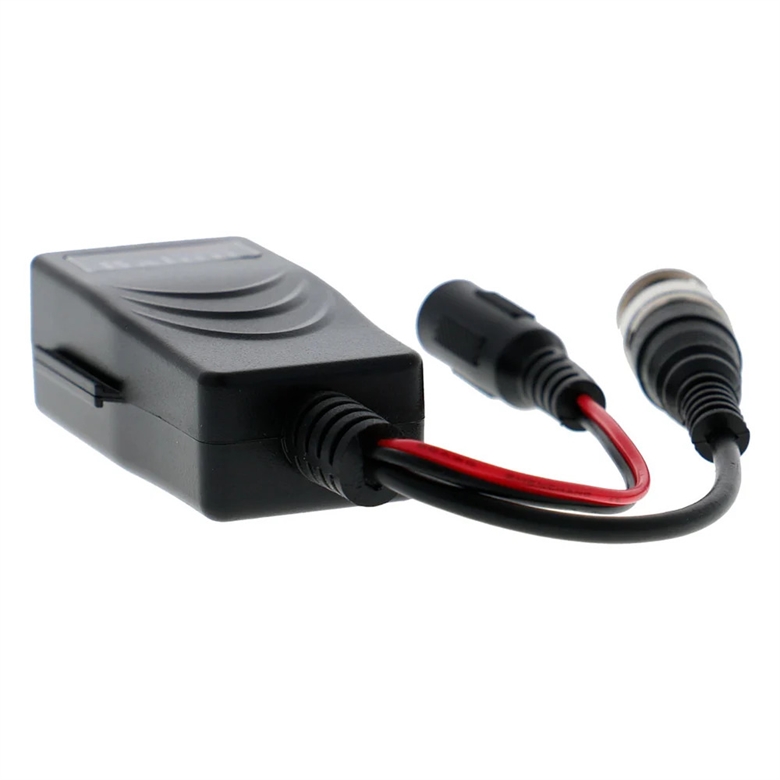

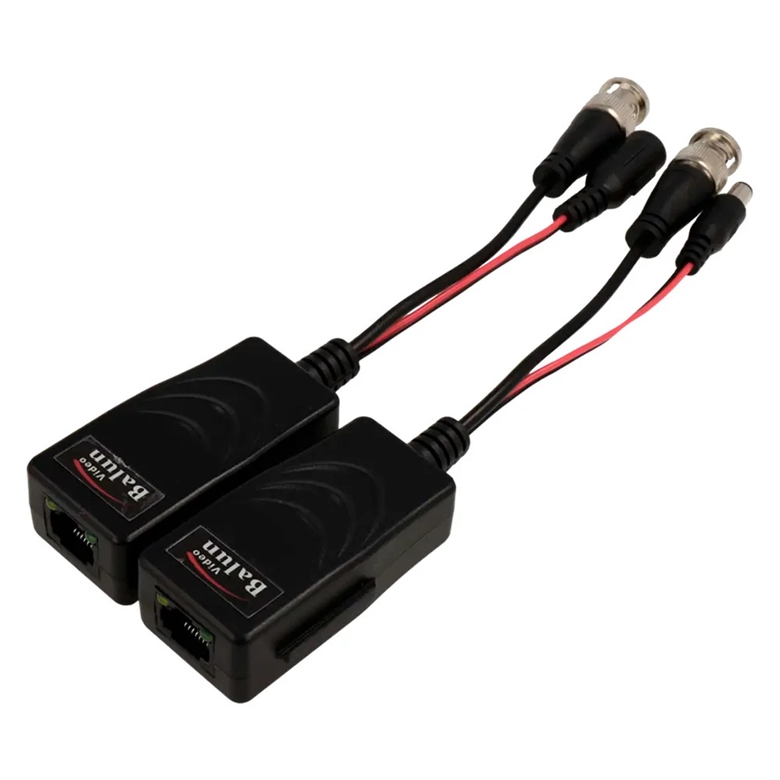

Dahua DH-PFM802 - 1-Channel Passive Video Balun with Power, 4MP, HDCVI/TVI/AHD/CVBS, BNC to RJ45, Black
-
Dahua 4MP 1-CH | HDCVI/TVI/AHD/CVBS | BNC to RJ45 | BlackIn stock$6.82* Taxes not included
Simplify surveillance installations with the Dahua DH-PFM802 passive video balun. It transmits both video and power through a single CAT5e/CAT6 UTP cable, reducing wiring complexity and installation costs. Compatible with HDCVI, HDTVI, AHD, and CVBS systems, it supports resolutions up to 4MP and features BNC-to-RJ45 connectivity. Built-in surge and interference protection helps ensure stable and reliable signal transmission.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Dahua |
| Model | DH-PFM802 |
| Type | Video Balun |
Details |
|
| Quantity | 1x Unit |
| CAT Category | CAT 5E, CAT 6 |
| Specifications | - Product Type: Passive Video Balun with Power
- Transmission: 1-CH video and 1-CH DC power - Power Supply: DC 1215V - Transmission Media: UTP CAT5E/6, Cu conductor - Video Connector: BNC-M - Connection Type: RJ45 - Compatible Formats: HDCVI / TVI / AHD / CVBS - Resolution: 720P / 1080P / 4MP - BNC Impedance: 75 ohms - UTP Impedance: 100 ohms - ESD Protection: IEC61000-4-2 - Surge Protection: IEC61000-4-5 - Shell Material: ABS - Color: Black |
Features |
|
| Features | - Real-time transmission of 1-CH video signal and 1-CH DC power through a single UTP CAT5E/6 network cable.
- No-delay video transmission. - Compatible with HDCVI, TVI, AHD and CVBS formats. - Supports 720P, 1080P and 4MP resolutions. - Provides DC 1215V power input for remote camera power supply. - RJ45 standard interface connection. - Excellent anti-thunder, anti-static and anti-interference capabilities. - Compact ABS engineering plastic housing. |
Dimensions |
|
| Dimensions(cm) | 3.35 × 2.05 × 6.15 cm |
| Weight | 0.085 kg |
Warranty
Warranty:
Dahua Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Dahua for you. You may also contact Dahua directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Dahua and are final.
