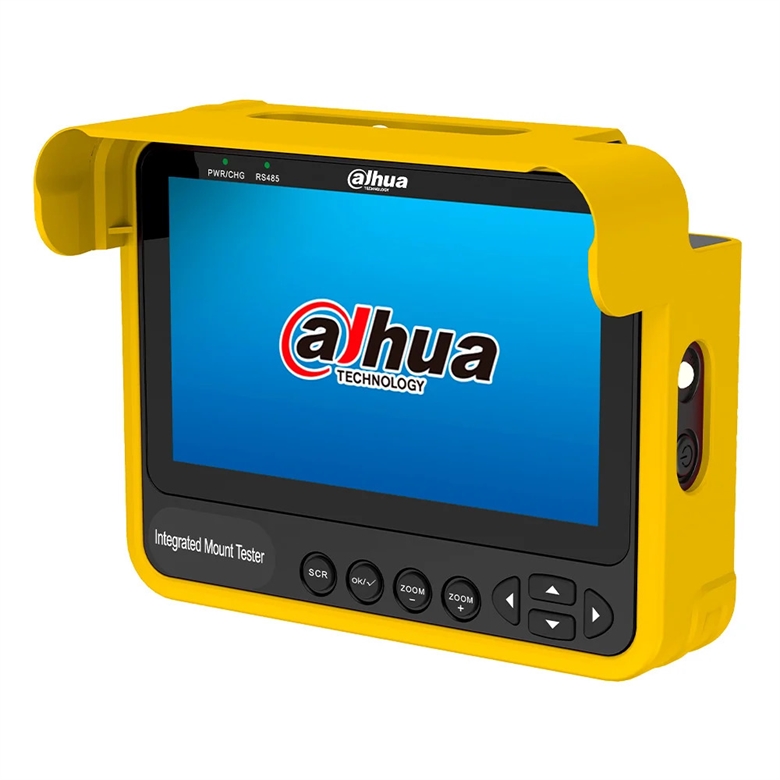

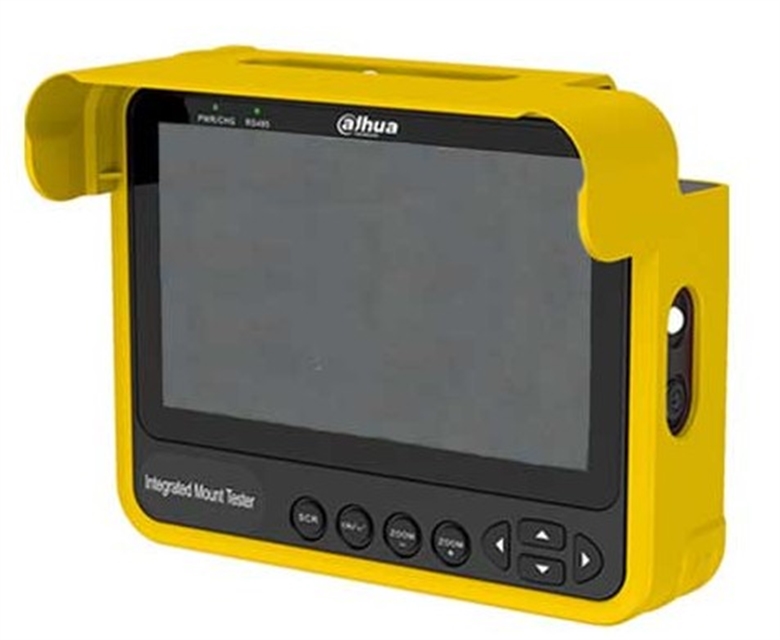

Dahua DH-PFM904 - Portable CCTV Camera Tester, 4.3" Display, HDCVI/TVI/AHD/CVBS, RS-485, Rechargeable Battery
-
Dahua DH-PFM904 | CCTV Camera Tester | 4.3" | HDCVI/TVI/AHD/CVBSIn stock$95.84* Taxes not included
Simplify CCTV installation and maintenance with a professional portable testing tool. The Dahua DH-PFM904 supports real-time video display for HDCVI, HDTVI, AHD, and CVBS cameras, audio testing, PTZ control through RS-485, and 12V DC camera power output. Featuring a 4.3" TFT display, built-in rechargeable battery, and compact handheld design, it helps technicians and installers perform efficient field diagnostics and camera setup.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Dahua |
| Model | DH-PFM904 |
| Type | Surveillance Controller |
Specifications |
|
| Specifications | - Linux operating system
- Multi-language interface - Keyboard operation mode - Auto standby/shutdown - Enable/disable keyboard sound - 4.3" TFT display, 480 × 272 resolution - 8 control keys + power button - 3 × 35 lm LED lights - Local firmware update - HDCVI / HDTVI / AHD / CVBS video testing - Live video display - OSD menu display - PTZ control - RS-485 communication - Supports more than 30 PTZ protocols including Pelco-D/P, Samsung, Panasonic, Lilin and Yaan - Baud rates: 150 bps to 19200 bps - Audio input test (1 channel) - Camera power output: 12V DC / 1A - ESD protection: 8KV air discharge, 6KV contact discharge - USB Micro-B charging/data port - Rechargeable battery: 2 × 18650 lithium-ion batteries - Battery capacity up to 14.8 Wh - Operating time approximately 8 hours - Operating temperature: -10C to +55C - Operating humidity: 30%95% RH - Certifications: CE (EN 55032), FCC Part 15 Subpart B |
Features |
|
| Features | - Integrated mount tester for analog surveillance cameras
- Supports HDCVI, HDTVI, AHD and CVBS standards - Built-in 4.3" TFT screen - RS-485 PTZ camera control - 12V/1A camera power output - Audio testing capability - Portable wrist-mounted design - USB charging and data interface - Replaceable 18650 lithium-ion batteries - Integrated LED illumination |
Dimensions |
|
| Dimensions(cm) | 12.50 × 10.00 × 6.50 cm |
| Weight | 0.34 kg |
Warranty
Warranty:
Dahua Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Dahua for you. You may also contact Dahua directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Dahua and are final.
