Hikvision AX Hybrid Pro Kit DS-PHA64-Kit-WB - Wi-Fi Access Control Kit with Alarm and Door/Window Sensor
-
Hikvision DS-PHA64-Kit-WB | Wi-Fi Access Control Kit with Alarm and Door/Window SensorIn stock$158.25* Taxes not included
The DS-PHA64-Kit-WB is a Hikvision AX Pro hybrid alarm kit designed for security systems that combine wired and wireless zones (up to 64 total), supporting Ethernet communication and optional cellular connectivity, allowing the integration of multiple sensors and accessories to protect homes and businesses with real-time alerts, remote management, and full compatibility within the Hikvision security ecosystem.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Hikvision |
| Model | DS-PHA64-Kit-WB |
| Type | Access Control Panel, Magnetic Sensor, Movement Sensor, Wireless Control |
Specifications |
|
| Specifications | Software Features
Zones: 64 (8 On-board zones, max 8 wired PIRCAM) Area: 32 User: Installer: 1 Administrator: 1 Operator: 62 SMS notification: Support (with GPRS/3G/4G module) Onboard video clips: 4 ARC protocol: ISAPI: Supports iVMS-4200 client software and web client Cloud P2P: Supports cloud P2P privacy protocol DC-09: ARC accessible (ADM-CID/SIA-DCS) CSV-IP: Supports CSV-IP ISUP: Supports ISUP 5.0 Programming tools: Web/iVMS-4200/Hik-Partner Pro/Keypad Firmware upgrade:Web/iVMS-4200/Hik-Partner Pro End of Line Resistance: Support 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K Hardware Features Alarm input: 64 (Including 8 on-board zones) Alarm output: 64 (Including 2 on-board relay outputs and 2 on-board I/O outputs) Power Output: 1. Bellmaximum 12V 1.2A 2. AUXmaximum 12V 1.5A 3/4G on board: Optional GPRS on board: Optional Wi-Fi: 802.11b/g/n (2.4GHz) Bus: 1 Speed-X bus Sounder output: 1 Wired on-board sounder output Tamper-Proof: 1 switch to detect removal from mounting 1 switch to detect front cover open Netowrk interface: 1 RJ45 10M/100M Ethernet interface |
Features |
|
| Features | - Hybrid System
Up to 64 alarm zones supported (8 integrated + expandable wired or wireless). - Multiple Connectivity Internet connection via Ethernet and 2.4 GHz Wi-Fi. Supports optional GPRS/3G/4G modules for redundancy and notifications. - Software and Control Compatible with iVMS-4200 software, Hik-Partner Pro, web browser, and the Hik-Connect app for remote control, notifications, and system management. - Alarms and Outputs 64 alarm inputs and 64 outputs (includes 2 relays and 2 I/O). SMS notifications can be sent if a communication module is installed. - Event Verification Supports onboard video clips and visual verification with compatible cameras to confirm alarms. - Physical Security Tamper detection (open lid or case). - Power & Battery: Operates on 100-240V AC power and can be powered by a 12V 7Ah battery (not always included). With battery backup, it can operate for up to 36 hours during power outages. |

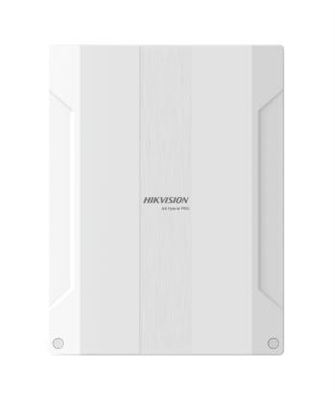

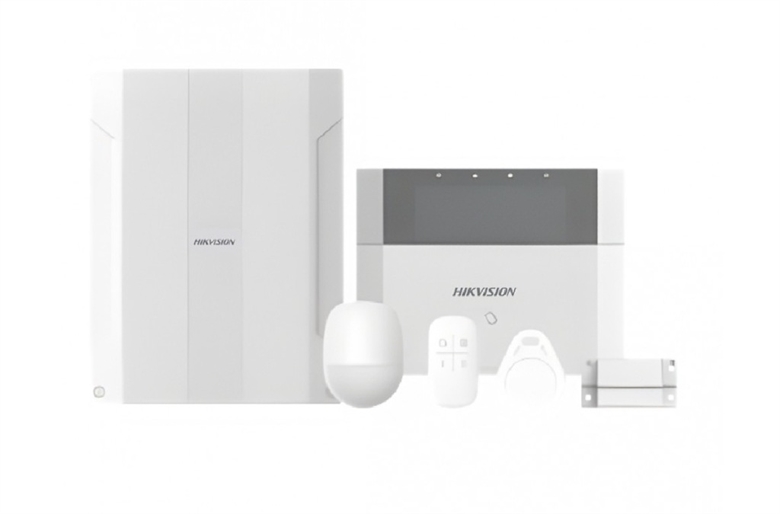

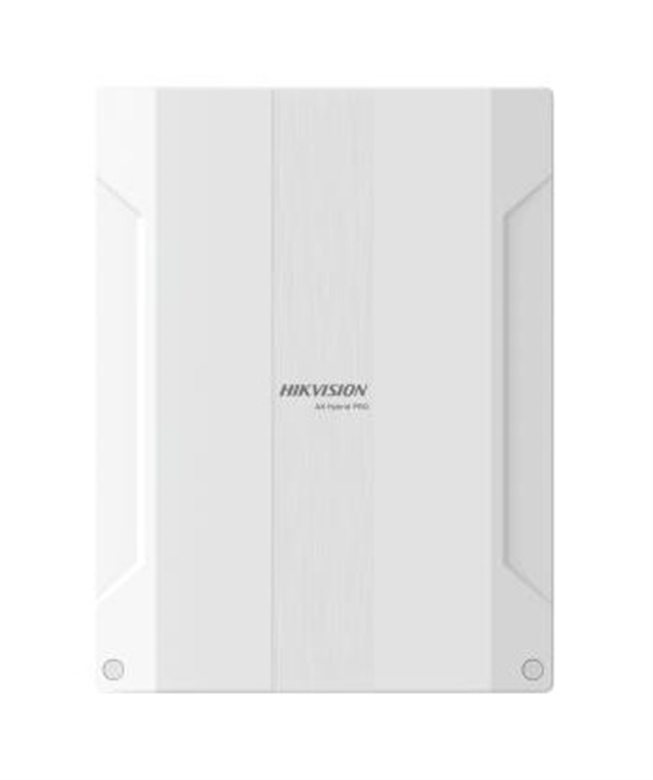

| Package Contents | 1x AX Hybrid Pro DS-PHA64-LP(B)

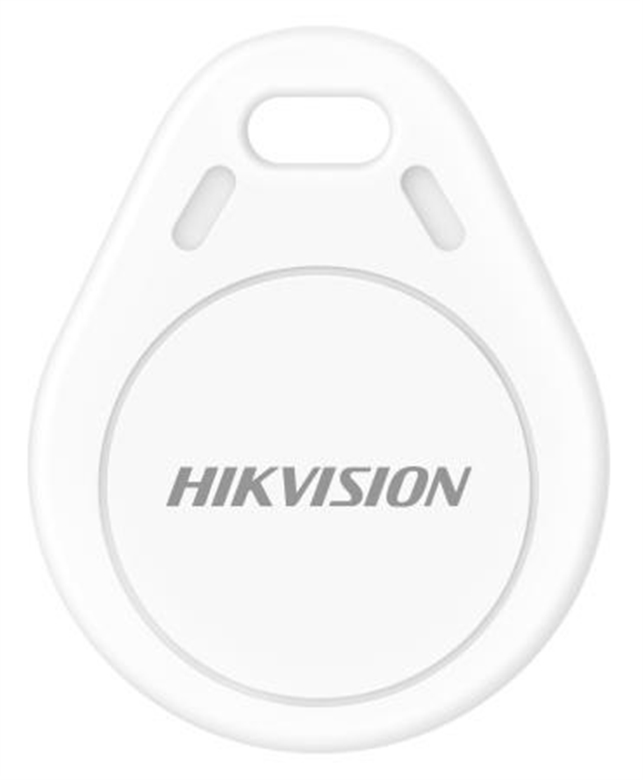

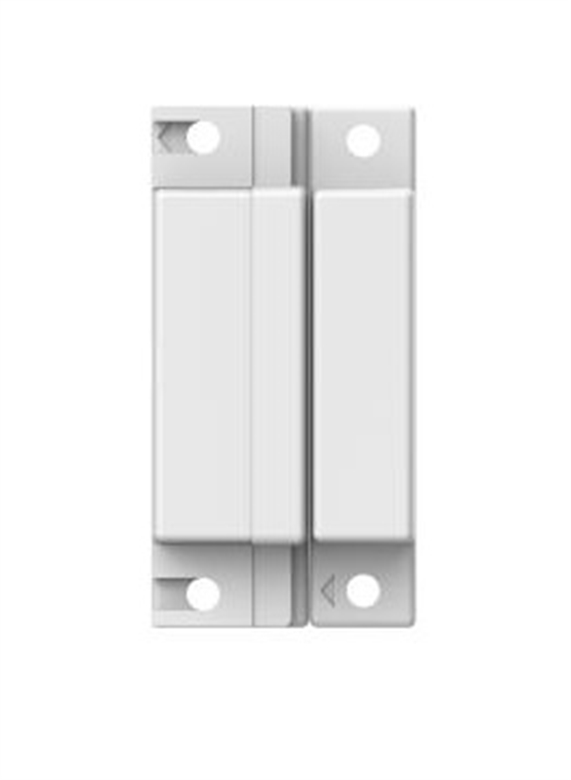

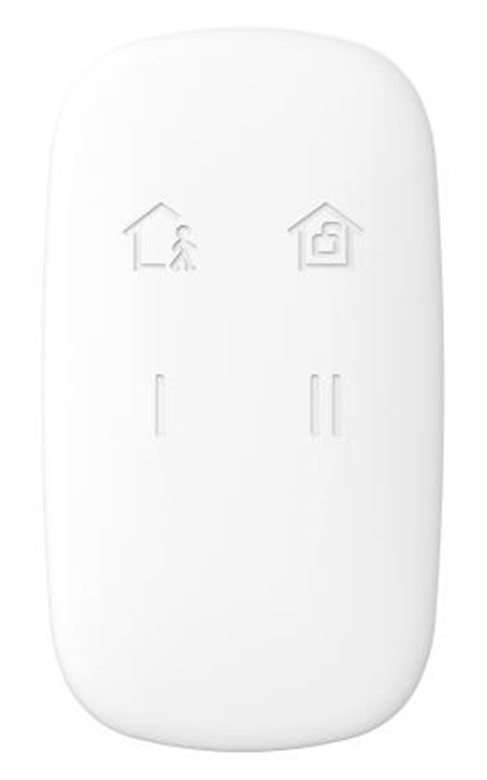

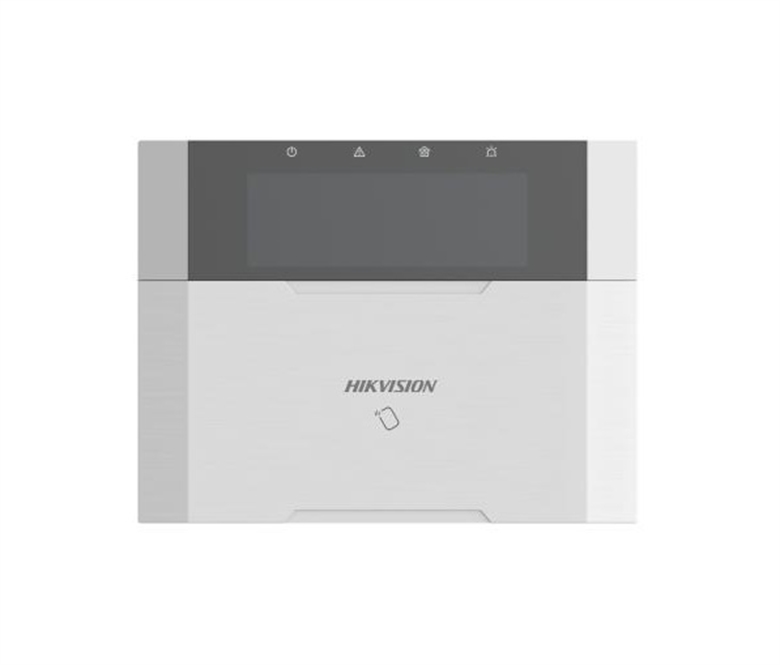

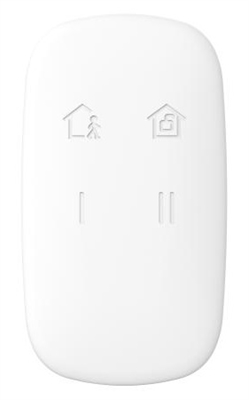

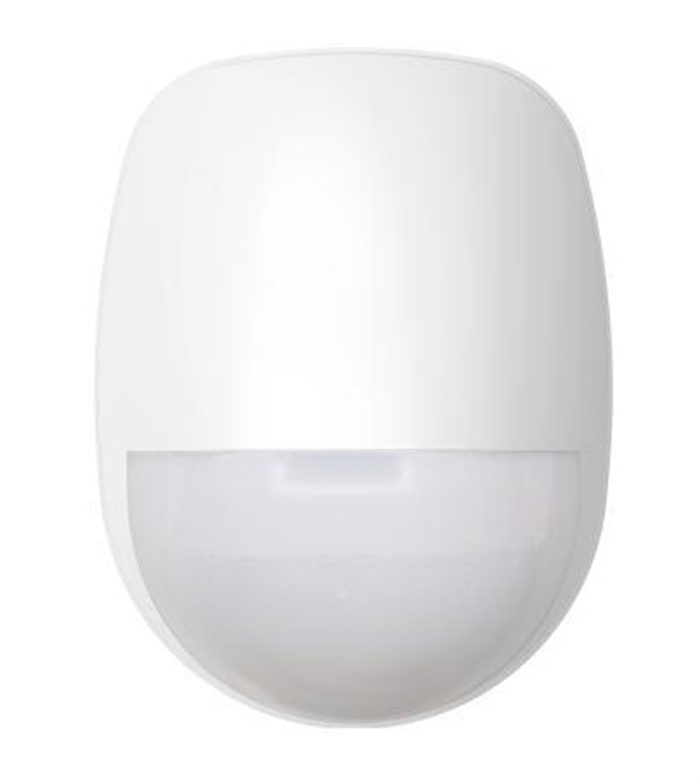

1x Wired LCD Keypad DS-PK1-LRT-HWB 1x Surface Mount Magnetic Contact DS-PD1-MC-WS 2x Wired PIR Detectors DS-PDP18-EG2(B) 1x Wireless Key Fob DS-PKF1-WB 2x Tags DS-PT-M1 |
Dimensions |
|
| Dimensions (mm) | 261 x 199 x 86.4 mm |
| Weight | 997 g |
Warranty
Warranty:
Hikvision Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Hikvision for you. You may also contact Hikvision directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Hikvision and are final.
