Hikvision DS-K1T807MBFWX-E1(O-STD) - Fingerprint Access Control, Card Reader, PIN, Black
-
Hikvision DS-K1T807MBFWX-E1(O-STD) | Fingerprint Access Control | BlackIn stock$94.11* Taxes not included
Brand: Hikvision
Model: DS-K1T807MBFWX-E1(O-STD)

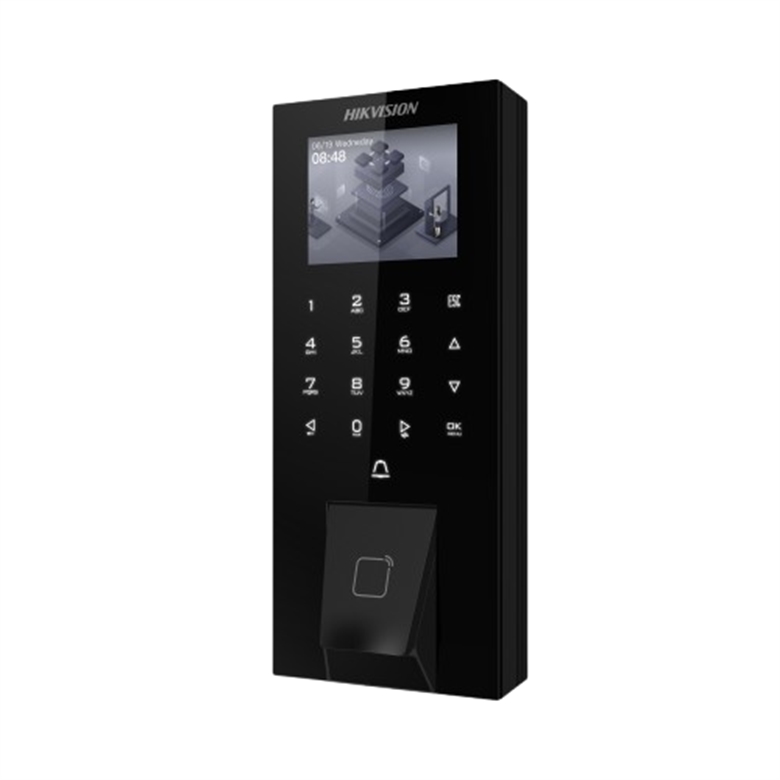

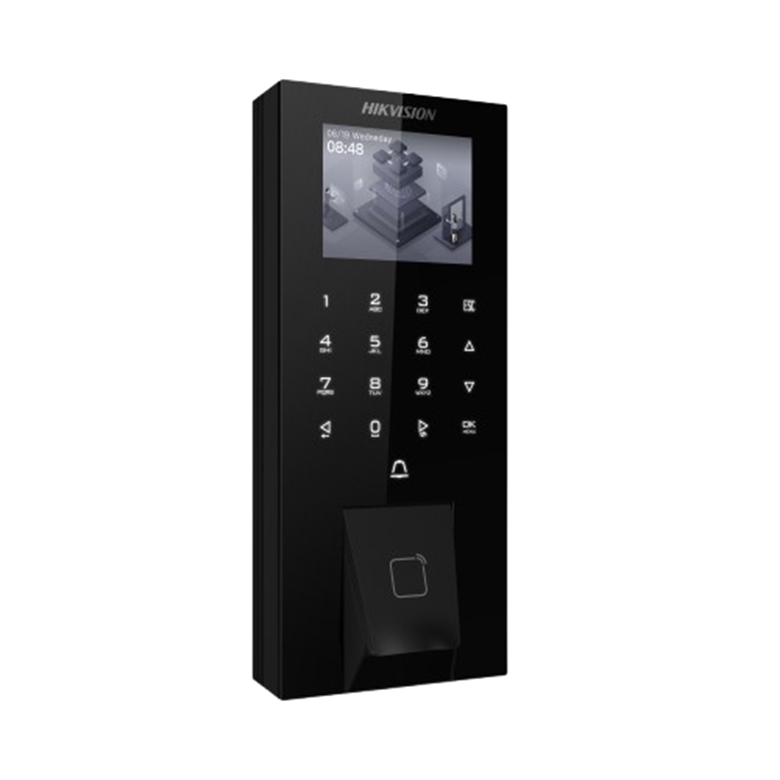

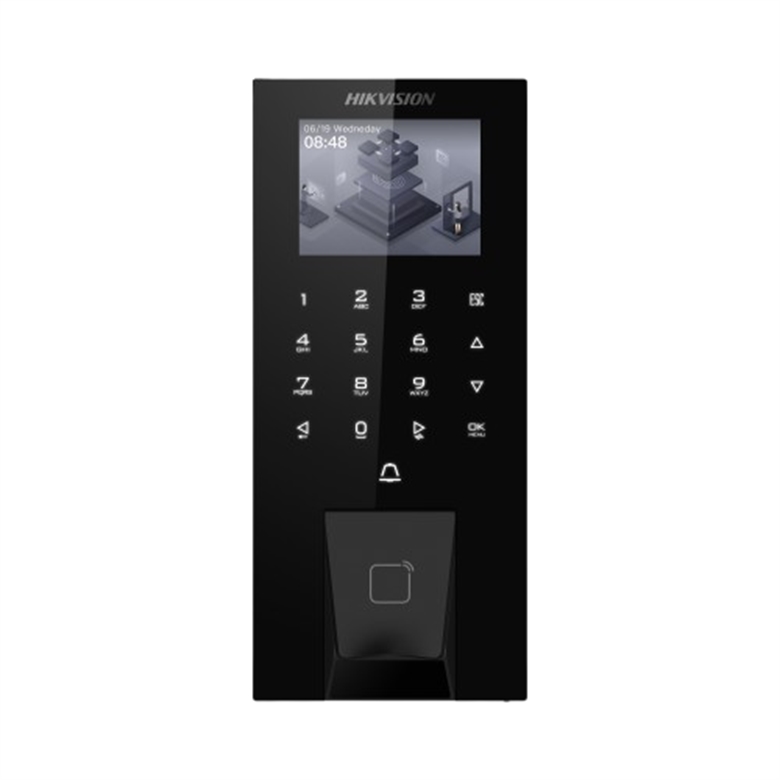

The Hikvision DS-K1T807MBFWX-E1(O-STD) is an access control terminal with touch buttons, offering a more technological appearance. It supports fingerprint, Bluetooth, card, and other authentication methods, making it easy to use. Setup is also simplified thanks to compatibility with mobile web mode and AP mode.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Hikvision |
| Model | DS-K1T807MBFWX-E1(O-STD) |
| Type | Fingerprint Reader |
Specifications |
|
| Specifications | System
-Operating system: Linux -ROM: 64MB -RAM: 64MB -CPU: 640 MHz Display -Screen size: 2.4 inch -Type: LCD -Resolution: 320 × 240 Audio -Audio output: Support Network -Network protocol: ISAPI, ISUP 5.0 -Wired network: Support -Wi-Fi: Support, 2.4 G, 802.11b/g/n -Bluetooth: Support Interface -Network interface: 1 RJ-45, 10/100 M -self-adaptive -Lock control: 1 -Exit button: 1 -Door contact input: 1 -Alarm input: 2 -TAMPER: 1 -Alarm output: 1 -RS-485: 1 RS-485 (Half duplex, HIKVISION) -Wiegand: 1 Wiegand (W26, W34) -USB: 1 -PoE: Support Capacity -Fingerprint capacity: 5000 -Card capacity: 5000 -Event capacity: 150,000 Authentication -Card type: M1 card -Card reading distance: 0 to 5 cm -Card reading duration: 1 s -Fingerprint module: Optical fingerprint module -Fingerprint recognition duration: 1 s -Fingerprint comparing mode: 1:1 and 1:N -Fingerprint FAR: 0.001 % -Fingerprint FRR: 0.01 % General -Power supply: 12 VDC Supports power supply by battery in the bracket -Power consumption: 6 W -Working temperature: -30 C to 60 C (-22 F to 140 F) -Working humidity: 0 to 90% (No condensing) -Language: English, Spanish (South American), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese(Brazil), Turkish, Ukrainian, Italian, French -Keypad: Support -Protective level: IP 65 |
Features |
|
| Features | -2.4-inch LCD screen
-Multiple authentication methods, including fingerprint, card (M1 card), and PIN, etc. -Max. 5000 cards, 5000 fingerprints and 150,000 events. -Supports ISAPI and ISUP 5.0 protocols. -Configuration via web client. -Supports wired network and Wi-Fi (AP mode). -Supports wiring with secure door control unit or card reader via RS-485. -Supports powered by 12 VDC or PoE and supports powering for device and door lock. |
Dimensions |
|
| Dimensions (mm) | 172 mm × 76 mm × 27.5 mm |
| Weight | Net weight: 0.377 kg
Rough weight: 0.562 kg |
Warranty
Contact Pana Compu for warranty details.
