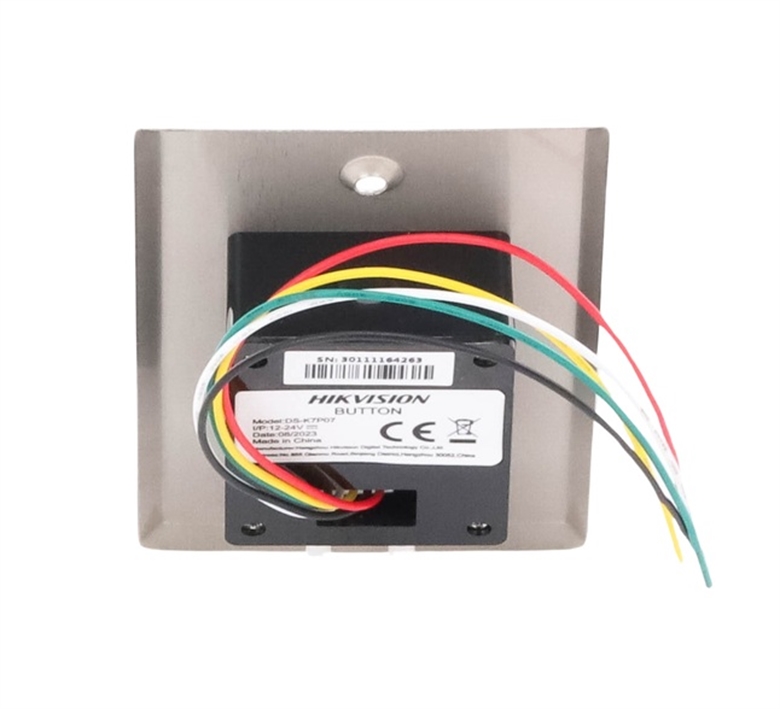

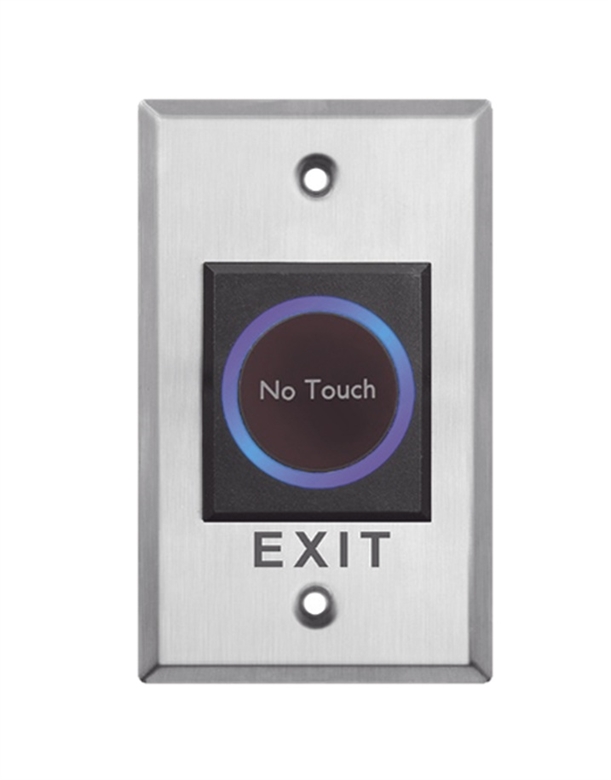

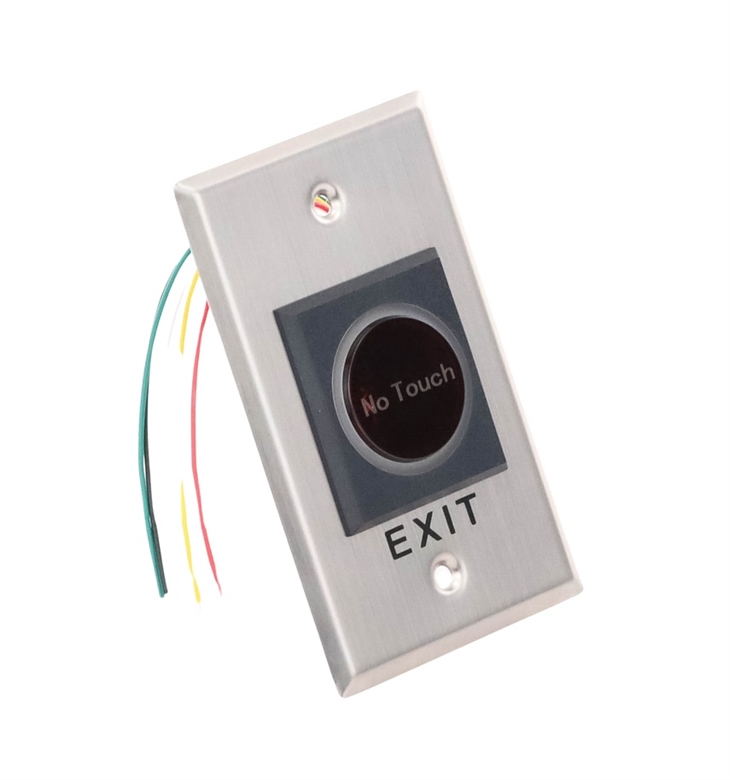

Hikvision DS-K7P07 - Contactless Exit Button with LED for Access Control Systems
-
Hikvision | DS-K7P07In stock$10.61* Taxes not included
The Hikvision DS-K7P07 is a contactless exit button designed for access control systems. Made of durable stainless steel, it features a bi-color LED indicator that displays the button's status. It allows for the safe and quick activation of electric or magnetic locks without physical contact, making it ideal for environments requiring hygiene and efficiency. Compatible with most Hikvision access control systems, it installs easily on standard doors and frames.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Hikvision |
| Model | DS-K7P07 |
| Type | Button |
Specifications |
|
| Specifications | - Type: Button (Access Control).
- Power Supply: DC 1224V. - Contact Output: NO / NC / COM (Normal Open / Normal Closed / Common). - Operating Temperature: -20C to 55C. - Operating Humidity: 0-95% (noncondensing). - Material: Stainless Steel (frontal panel). - Dimensions: 115 × 70 × 16mm. - Weight: 0.13kg (aprox. 0.2kg con empaque). - Indicator: Bicolor LED (green/blue) for status. - Mounting: Concealed / standard door frame installation. - Application: Activation of electric or magnetic locks in access control systems. |
Features |
|
| Features | - Contactless: Activates electric or magnetic locks without touching the button.
- LED Indicator: Bicolor (green/blue) that shows the button's status (active/standby). - Durable Material: Wear- and corrosion-resistant stainless steel front panel. - Easy Installation: Compatible with standard door frames for concealed or surface mounting. - Compatible with Hikvision Systems: Works with most Hikvision access control systems. - Safety and Hygiene: Ideal for environments requiring minimal physical handling. - Configurable Contacts: NO/NC/COM outputs for integration with different types of locks. |
| Package Contents | 1× Hikvision DS-K7P07 Button (Contactless Exit Button).
1× User Manual / Quick Start Guide. Installation Screws and Accessories. |
Dimensions |
|
| Dimensions (mm) | 115 × 70 × 16 mm |
| Weight | 0.2kg |
Warranty
Warranty:
Hikvision Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Hikvision for you. You may also contact Hikvision directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Hikvision and are final.
