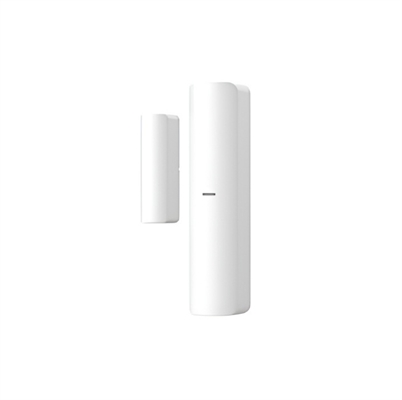

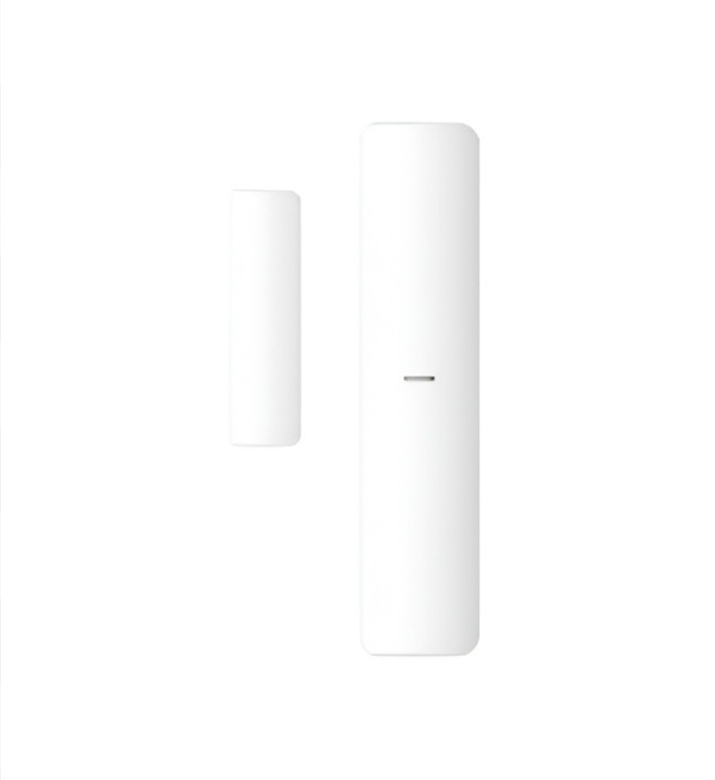

Hikvision DS-PD201MC-WB - Wireless Magnetic Door/Window Sensor for Home and Office
-
Hikvision | DS-PD201MC-WB | Wireless Magnetic SensorIn stock$19.69* Taxes not included
Brand: Hikvision
Model: DS-PD201MC-WB
Wireless magnetic sensor for doors and windows, designed for residential and commercial alarm systems. Detects openings and sends alerts to the security panel, with long-range communication and low power consumption.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Hikvision |
| Model | DS-PD201MC-WB |
| Type | Magnetic Sensor |
Specifications |
|
| Specifications | - Detection Method: Magnetic contact (door/window opening)
- Maximum Detection Gap: 25mm - Wireless Frequency: 433.1433.7MHz - Modulation: 2GFSK - Wireless Transmission Range: Up to 1,200m (open space) - Transmission Power: 25mW (max) - Power Supply: 1 × AA battery - Current Consumption: Maximum: 140mA Standby: 1µA - Battery Life: Up to 2 years - LED Indicator: Yes - Operating Temperature: 10C to 55C - Operating Humidity: 10% 90% - Dimensions (Sensor): 24 × 104 × 23.5mm - Dimensions (Magnet): 14.4 × 50 × 17.5mm - Weight: 49g - Compliance / Features: Long-range wireless, low power consumption, LED status indicator |
Features |
|
| Features | - Long-range wireless communication (up to 1,200m in open space).
- Low power consumption with up to 2 years of battery life. - Magnetic detection of door and window openings (gap 25mm). - LED indicator for sensor status. - Compact and discreet design for indoor installation. - Compatible with residential and commercial alarm systems. - Frequency hopping for greater stability and interference resistance. - Easy installation and maintenance. |
| Package Contents | 1× DS-PD201MC-WB Wireless Magnetic Sensor
1× Magnet 1× AA Battery (pre-installed or included depending on version) 1× User Manual / Installation Guide Mounting screws and adhesives |
Dimensions |
|
| Dimensions (mm) | Main sensor: 24 × 104 × 23.5 mm
Magnet: 14.4 × 50 × 17.5 mm |
| Weight | 49g |
Warranty
Warranty:
Hikvision Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Hikvision for you. You may also contact Hikvision directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Hikvision and are final.
