Hikvision - ds-pm1-i8o2-h - Wired Input Expander, 8 zones
-
Alarm | Wired Input Expander | 8 zonesIn stock$29.59* Taxes not included
The Hikvision DS-PM1-I8O2-H is a wired input expander module designed for AX Hybrid Pro alarm systems. It adds 8 additional hardwired zones and 2 programmable outputs, allowing the expansion of security installations with more sensors and control devices. Ideal for scalable intrusion systems in residential, commercial, and industrial environments, it ensures reliable communication via Speed-X bus and seamless integration with Hikvision alarm panels.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date

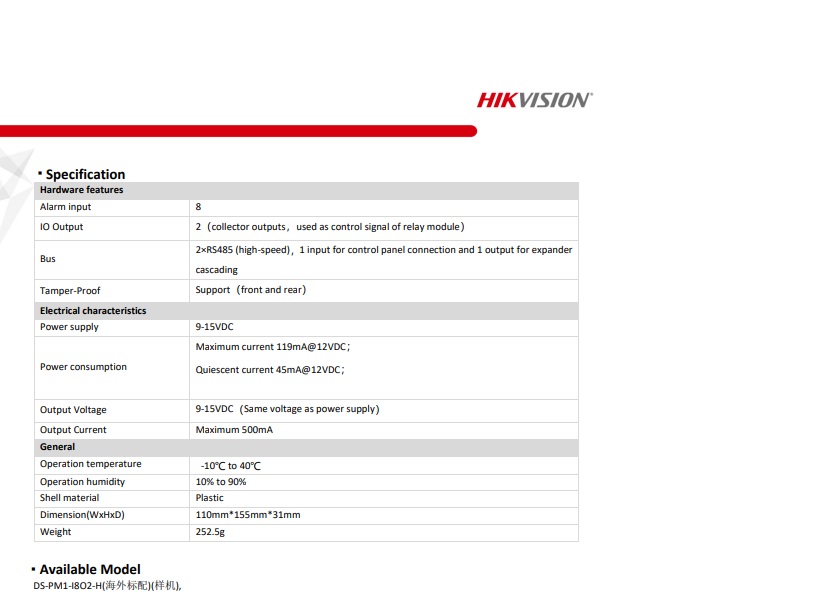

Specifications
Model |
|
|---|---|
| Brand | Hikvision |
| Model | ds-pm1-i8o2-h |
Specifications |
|
| Specifications | -Inputs / Outputs
8 wired alarm inputs (zones). 2 programmable I/O outputs. -Power Power supply: 1124 VDC (12 VDC typical) Max consumption: 119 mA. Standby consumption: 45 mA. Output voltage: 912 VDC. Max output current: 500 mA. -Connectivity Speed-X bus communication. Supports cascade (daisy-chain) installation. |
Features |
|
| Features | -Tamper protection (front and rear).
-Zone supervision (alarm, fault, short circuit, masking). -Supports 3EOL configuration. -Designed for AX Hybrid Pro alarm systems. |
Dimensions |
|
| Dimensions(cm) | 110 × 155 × 32 mm |
| Weight | 260g |
Warranty
Warranty:
Hikvision Standard Warranty
Warranty Period:
3 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Hikvision for you. You may also contact Hikvision directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Hikvision and are final.
