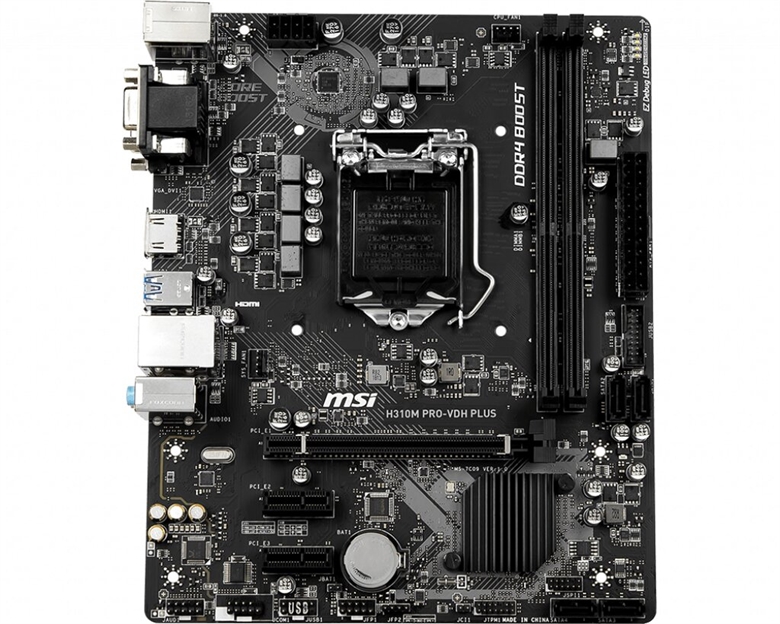

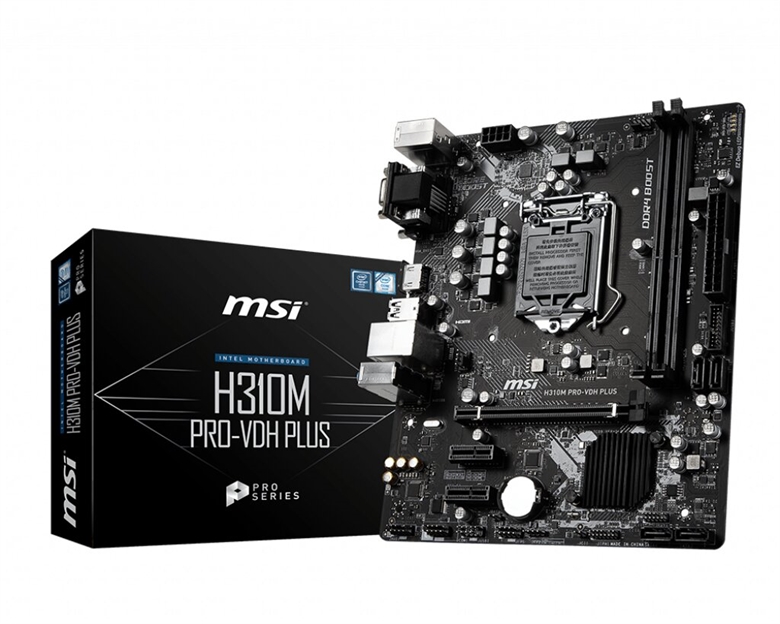

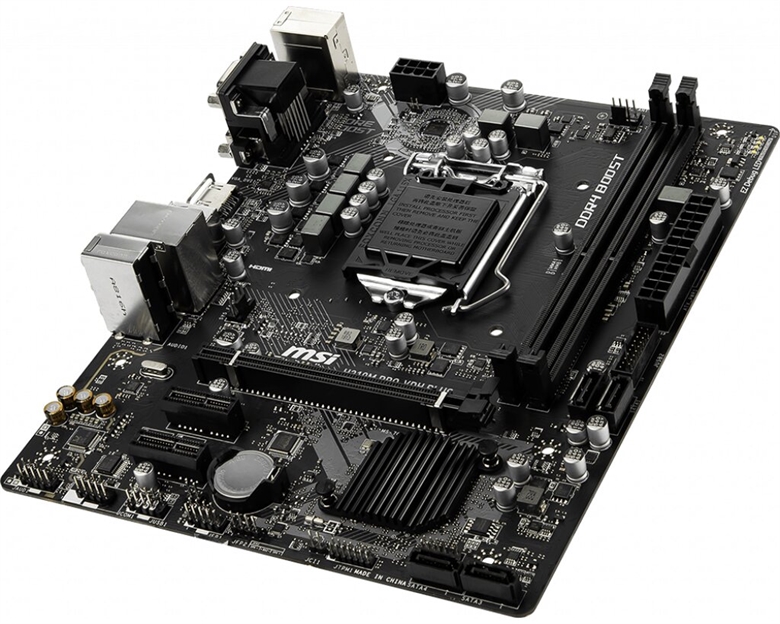

MSI H310MPRO-VDHPLUS - Motherboard, LGA1151, mATX, USB 2.0, USB 3.1, SATA 6Gb/s, PCI-E 3.0, PCI-E 2.0, 32GB DDR4 Max Memory
-
H310MPRO-VDHPLUSOut of stock$70.33* Taxes not included
Combining quality you can rely on with top performance and clever business solutions are key aspects of the MSI PRO SERIES motherboards. Engineered to gratify even the most demanding professional, these motherboards will fit in any PC. Making your life easier and supporting your business with super stable, reliable and long-lasting top performance. This motherboard is designed to fully utilize the Intel® Coffee Lake 6 core processors, ready to deliver world class performance when gaming.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | MSI |
| Series | H310MPRO-VDHPLUS |
| Model | H310MPRO-VDHPLUS |
| Part Number | H310MPRO-VDHPLUS |
| Chipset | Intel |
Supported CPU |
|
| CPU Socket | LGA 1151 |
| CPUs Supported | Supports 8th Generation Intel® Core Processors, Pentium® Gold and Celeron® |
Memory |
|
| Memory Slots | 2x slots |
| Memory Type | DDR4
|
| Maximum Memory | 32 GB |
| Channel Support | Dual-Channel |
Expansion Slots |
|
| PCIe 3.0 | 1 x PCIe 3.0 x16 slot |
| PCIe 2.0 | 2x PCIe 2.0x1 |
Storage |
|
| SATA 6Gb/s | 4x SATA 6Gb/s |
| M.2 | No slots |
| SATA RAID | No |
| Intel Optane | No |
| U.2 | No |
Onboard Audio |
|
| Audio Chipset | Realtek® ALC887 Codec |
| Audio Channels | 7.1 Channel |

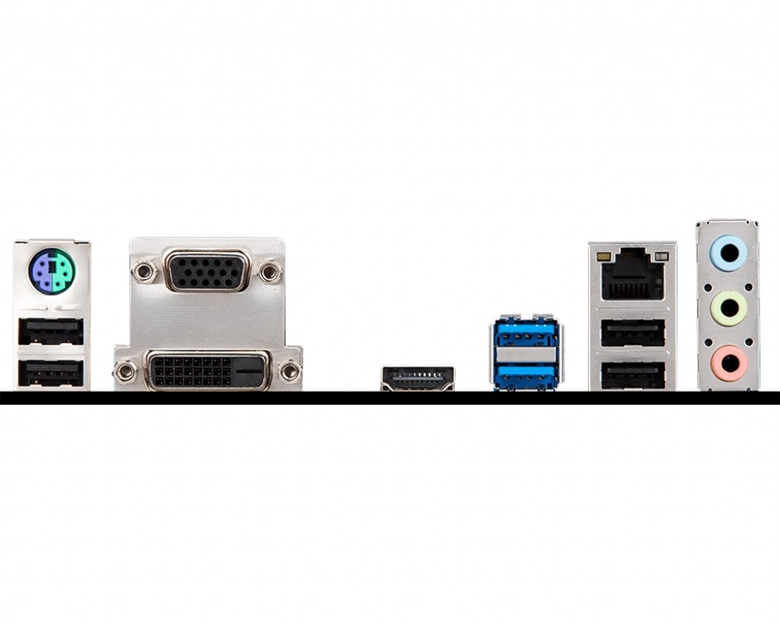

Rear Panel Ports |
|
| Rear Panel Ports | PS/2 Combo Port
VGA Port HDMI Port USB 3.1 Gen1 LAN Port HD Audio Connectors USB 2.0 Port DVI-D Port USB 2.0 Port |
Internal Connectors |
|
| Onboard USB | 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) |
| Power Pins | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector |
| Other connectors | 1 x Clear CMOS jumper
2 x Front panel connectors 1 x Serial port connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Front panel audio connector 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector |
Physical Specifications |
|
| Form Factor | Micro ATX |
| Dimensions(cm) | 22.6 cm x 18.5 cm |
| LED Lighting | No |
Features |
|
| Multi-GPU Support | No |
| Special Features | Supports 9th / 8th Gen Intel® Core / Pentium® Gold / Celeron® processors for LGA 1151 socket
Supports DDR4 Memory, up to 2666MHz Audio Boost: Reward your ears with studio grade sound quality. EZ Debug LED: Easiest way to troubleshoot. X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device. Core Boost: With premium layout and fully digital power design to support more cores and provide better performance. |
Included in Package |
|
| Included in package | Placa base H310M PRO-VDH
Disco del controlador de la placa base Dos cables SATA Manual del usuario Escudo de E/S Sticker |
