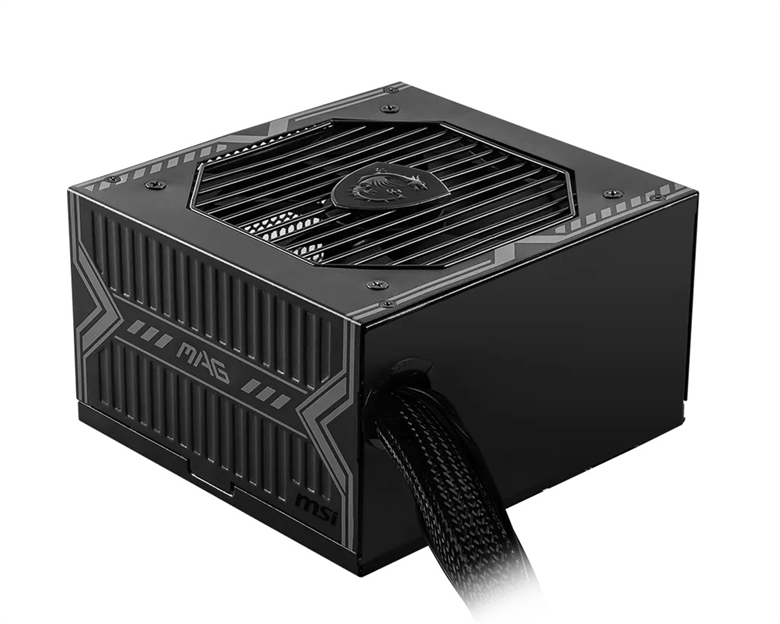

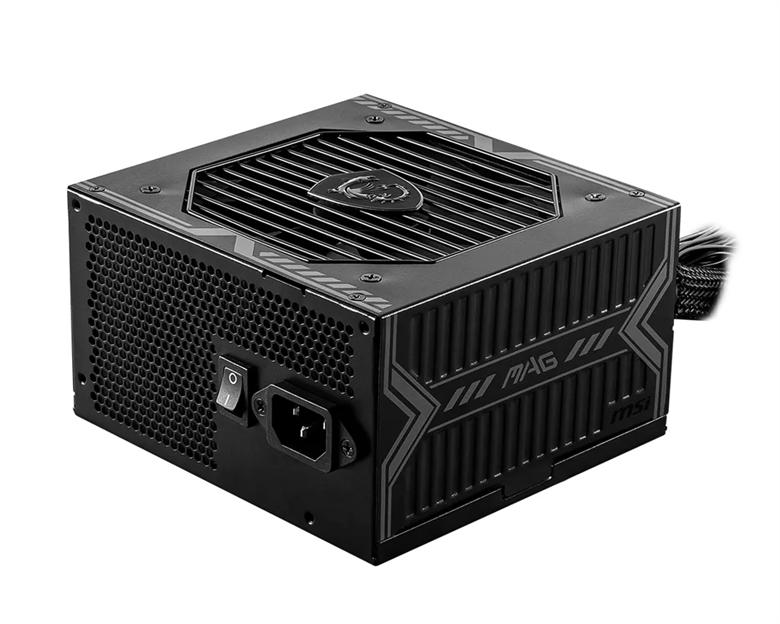

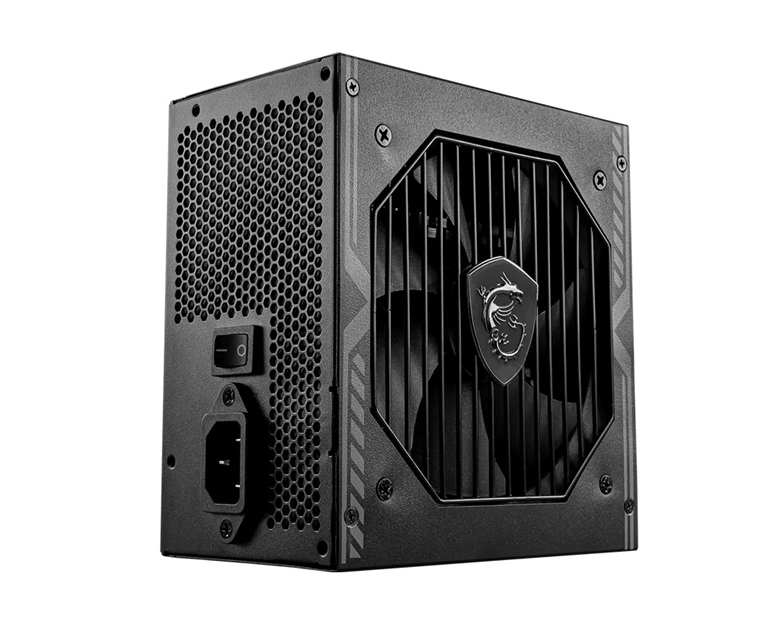

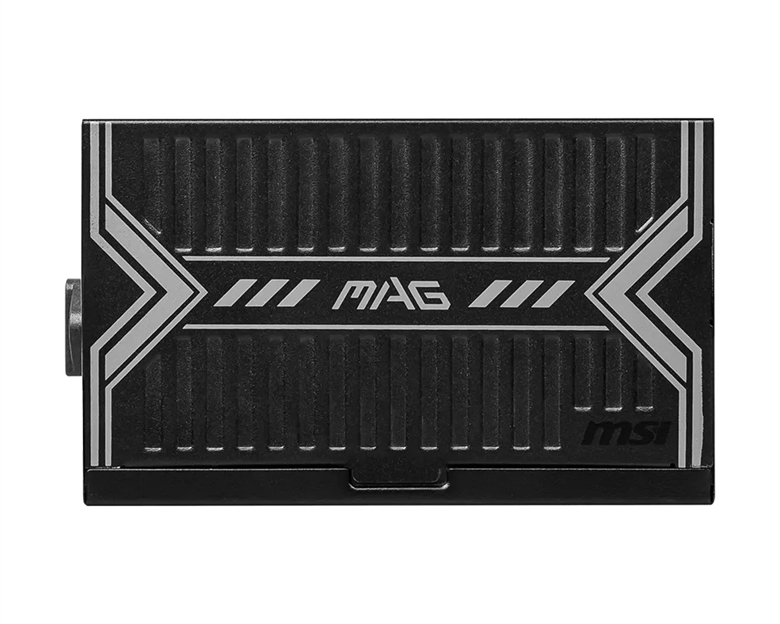

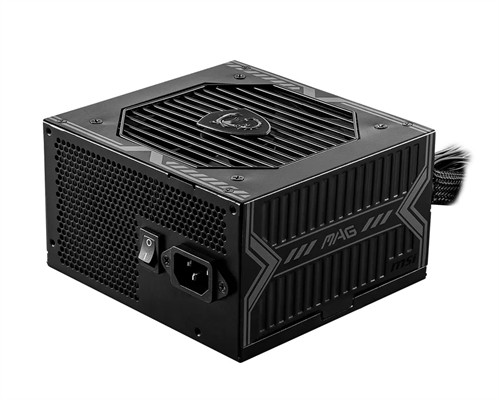

MSI MAG A550BN - Power Supply, ATX, 550W, 80 PLUS Bronze
-
MSI | MAG | A550BN | ATX | 550WIn stock$50.94* Taxes not included
Brand: MSI
Model: 306-7zp2a23-ce0
The MSI MAG A550BN is a 550W ATX power supply with 80PLUS Bronze certification, designed to deliver stable and efficient power to desktop PCs and light gaming PCs. It features a quiet 120mm fan, overload and short-circuit protection, and full connectors for CPU, GPU, and storage. It includes a 5-year limited warranty from MSI.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | MSI |
| Series | MAG |
| Model | A550BN |
Details |
|
| Form Factor | ATX12V |
| Wattage | 550W |
| Input Voltage | 100 - 240V |
| Input Current | 10A (maximum) |
| Input Frequency | 50 - 60Hz |
| DC Output | +3.3V 22A
+5V 20A +12V 43A -12V 0.3A +5Vsb (standby) 3A |
| Operating Temperature | 0C to 40C |
| Efficiency | 80 Plus Bronze |
| MTBF | 100,000 Hours |
Connectors |
|
| Connectors | - ATX 24-pin - for the motherboard
- EPS 4+4-pin - for the CPU - PCIe 6+2-pin ×2 - for graphics cards - SATA ×5 - for hard drives and SSDs - Molex ×2 - for peripherals - FDD ×1 - for a floppy disk drive (optional) |
| Modular | Non-Modular |
| Cable Length | - ATX 24-pin: 50cm
- EPS 4+4-pin (CPU): 60cm - PCIe 6+2-pin: 55cm - SATA: 45cm + extensions depending on the cable - Molex: 45cm + branches - FDD: 30cm |
Aditional Information |
|
| Special Features | - 80 PLUS Bronze energy efficiency up to ~85%.
- Quiet 120mm fan for efficient cooling and low noise. - Built-in protections: OVP (overvoltage), OCP (overcurrent), OPP (overload), OTP (overtemperature), SCP (short circuit). - DC-to-DC design and Active PFC more stable voltages and greater efficiency. - Non-modular fixed cables for simplicity and reliability. |
| Fan | 120mm, sleeve bearing type |
| Size(cm) | 14 × 15 × 8.6cm |
| Weight | 1.5kg |
Warranty
Warranty:
MSI Standard Warranty
Warranty Period:
5 Years Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with MSI for you. You may also contact MSI directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by MSI and are final.
