MSI PRO B760-P WIFI DDR4 - Motherboard, LGA1700, ATX, Dual-Channel, DDR4, Wi-Fi 6E, LAN 2.5G
-
MSI PRO B760-P WIFI DDR4 | LGA1700In stock$136.31* Taxes not included
The MSI PRO B760-P WIFI DDR4 is an ATX motherboard designed to offer stability, performance, and modern connectivity for high-performance workstations and desktops. Compatible with 12th, 13th, and 14th generation Intel Core processors thanks to its LGA1700 socket, it allows you to take advantage of high-speed DDR4 memory in a dual-channel configuration.
It integrates cutting-edge solutions such as PCIe 4.0 and M.2 Gen4 slots for ultra-fast transfers, 2.5G wired networking, and Wi-Fi 6E wireless connectivity with Bluetooth 5.3. Furthermore, its cooling and thermal protection technologies help keep the system running efficiently even under demanding loads.
A reliable foundation for business PCs, productivity workstations, or advanced configurations.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | MSI |
| Series | PRO Series |
| Model | PRO B760-P WIFI DDR4 |
| Part Number | 911-7D98-129 |
| Chipset | Intel |
Supported CPU |
|
| CPU Socket | LGA 1700 |
| CPUs Supported | Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron (LGA1700) |
Memory |
|
| Memory Slots | 4x slots |
| Memory Type | DDR4
|
| Maximum Memory | 128 GB |
| Channel Support | Dual-Channel |
Expansion Slots |
|
| PCIe 3.0 | 3x PCIe 3.0 x1 |
| PCIe 4.0 | 2x PCIe 4.0 x16 |
| PCIe Slots | 2x PCIe 4.0 x16
3x PCIe 3.0 x1 |
Storage |
|
| SATA 6Gb/s | 4x SATA 6Gb/s |
| M.2 | 2x M.2 Ports |
| SATA RAID | Yes |
| Intel Optane | No |
Onboard Audio |
|
| Audio Chipset | HD Audio (7.1) with Audio Boost |
| Audio Channels | 7.1 Channel |

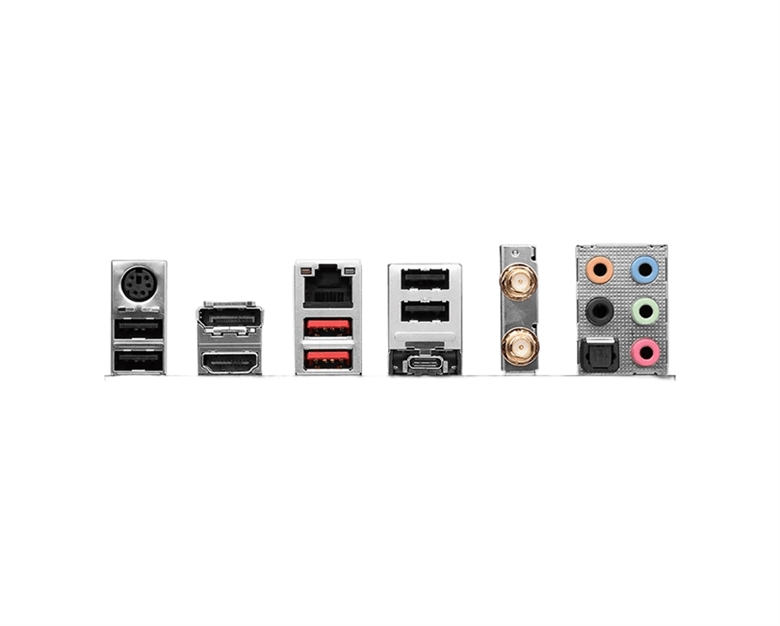

Rear Panel Ports |
|
| Rear Panel Ports | 1× Display Port
1× HDMI 2× USB 3.2 Gen 2 Type-A 1× USB 3.2 Gen 2 Type-C 4× USB 2.0 1× RJ-45 (2.5G LAN) Audio connectors 1× S/PDIF-Out Wi-Fi/Bluetooth antennas |
Internal Connectors |
|
| Onboard USB | 3× USB 3.2 Gen 2
3× USB 3.2 Gen 1 8× USB 2.0 |
| Power Pins | 1× 24-pin ATX (main power)
2× 8-pin CPU power |
Physical Specifications |
|
| Form Factor | ATX |
| Dimensions(cm) | 305 × 244 mm |
| LED Lighting | No |
Features |
|
| BIOS | UEFI |
| Special Features | - Lightning Gen4
- Wi-Fi 6E - Extended Heatsink Design - M.2 Shield Frozr - 2.5G LAN - EZ Debug LED - Frozr AI Cooling - Memory Boost - Core Boost |
Included in Package |
|

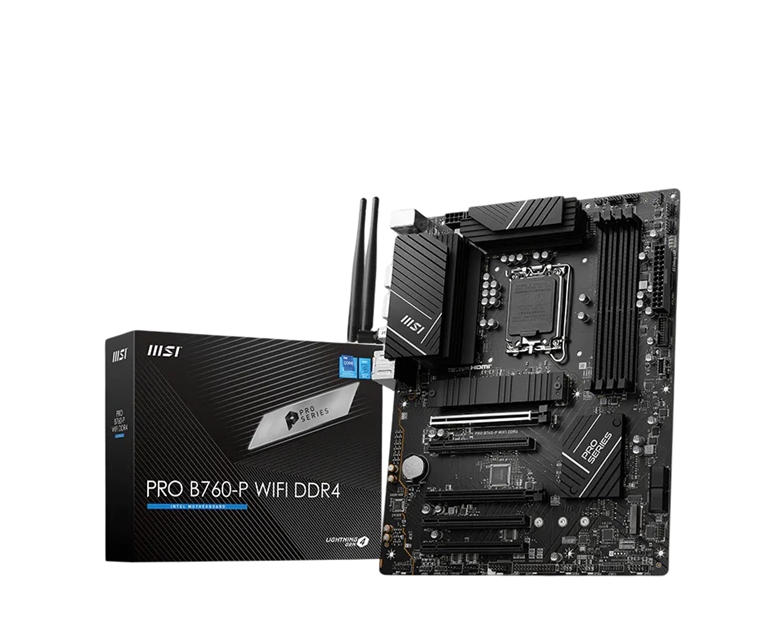

| Included in package | 1× Motherboard
1× User guide / documentation 2× Wi-Fi antennas 2× SATA cables |
Warranty
Warranty:
MSI Standard Warranty
Warranty Period:
3 Years Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with MSI for you. You may also contact MSI directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by MSI and are final.
