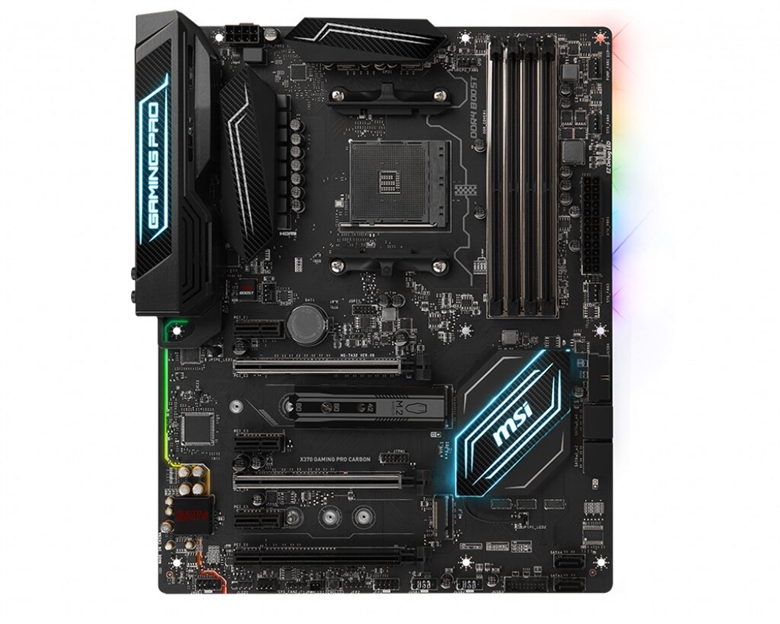

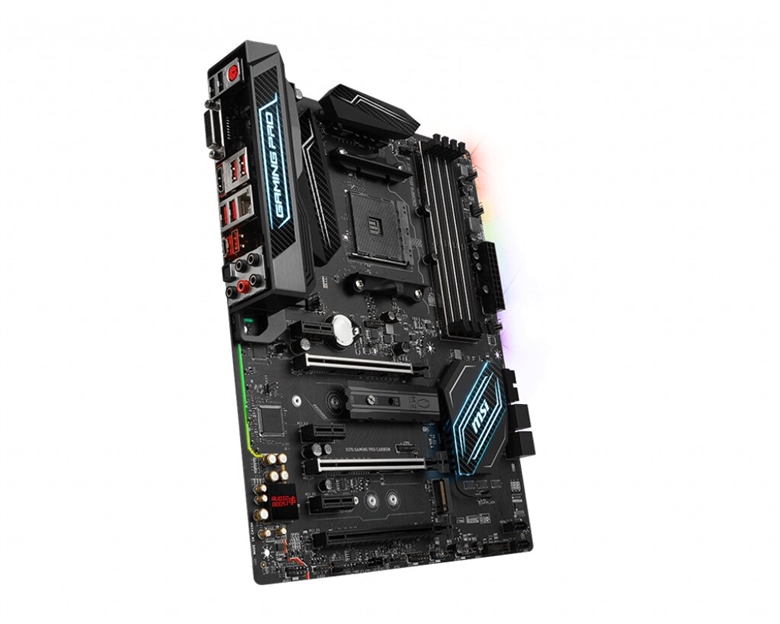

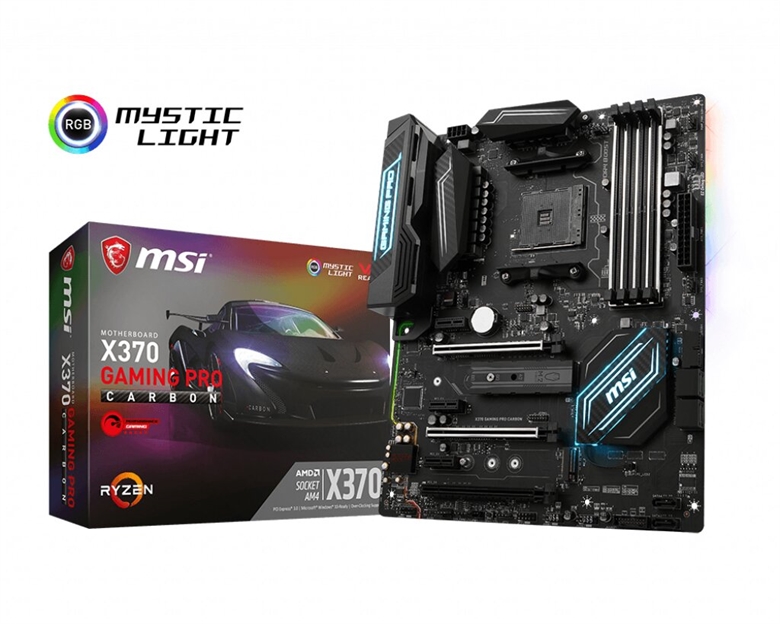

MSI X370 Gaming Pro Carbon - Motherboard, AMD AM4, ATX, HDMI, DVI-D, USB 3.1 Gen2 Type-C and Type-A, 2xM.2 & 6xSata 6Gb/s, 64GB DDR4 Max Memory
-
MSI X370 Gaming Pro CarbonOut of stock$245.20* Taxes not included
Brand: MSI
Model: X370 Gaming Pro Carbon
MSI X370 Gaming Pro Carbon is an ATX motherboard with an AMD socket AM4, comes with HDMI, DVI-D integrated video ports and 1xUSB 3.1 Gen2 Type-C and Type-A, storage interface for 2xM.2 & 6xSata 6Gb/s, SLI & CrossFire support and up to 64GB DDR4 Ram Memory
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | MSI |
| Series | Gaming Pro Carbon |
| Model | x370 Gaming Pro Carbon |
| Part Number | X370 GAMING PRO CARBON |
| Chipset | AMD |
Supported CPU |
|
| CPU Socket | AMD AM4 |
| CPUs Supported | Supports AMD® RYZEN Series processors and 7th Gen A-series / AthlonTM Processors for socket AM4 |
Memory |
|
| Memory Slots | 4x slots |
| Memory Type | DDR4
|
| Maximum Memory | 64 GB |
| Channel Support | Dual-Channel |
Expansion Slots |
|
| PCIe 3.0 | 2x PCIe 3.0 x16 slots |
| PCIe 2.0 | 1x PCIe 2.0 x16 slot (PCI_E6, supports x4 mode).
3x PCIe 2.0 x1 slots |
Storage |
|
| SATA 6Gb/s | 6x SATA 6Gb/s |
| M.2 | 2x M.2 Ports |
| SATA RAID | Yes |
| Intel Optane | No |
| U.2 | No |
Onboard Audio |
|
| Audio Chipset | Realtek® ALC1220 Codec |
| Audio Channels | 7.1 Channel |
Video |
|
| Onboard Video Support | Support Radeon Vega Integrated Graphics |

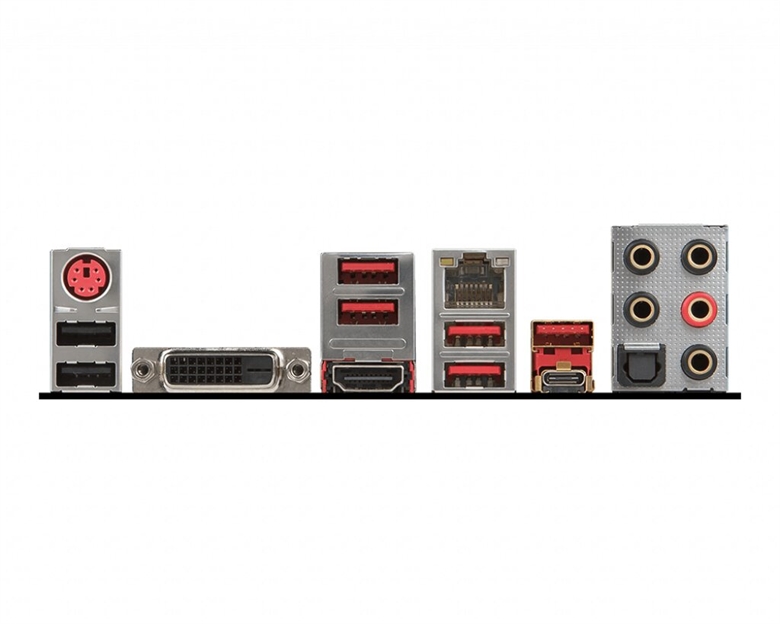

Rear Panel Ports |
|
| Rear Panel Ports | 1x PS/2 keyboard/ mouse combo port
2x USB 2.0 Type-A ports 1x DVI-D port 1x HDMI port 4x USB 3.1 Gen1 Type-A ports 1x LAN (RJ45) port 1x USB 3.1 Gen2 Type-A port 1x USB 3.1 Gen2 Type-C port 5x OFC audio jacks 1x Optical S/PDIF OUT connector |
Internal Connectors |
|
| Onboard USB | 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)2x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports) |
| Power Pins | 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector |
| Other connectors | 1x 4-pin CPU fan connector
1x 4-pin water-pump-fan connector 4x 4-pin system fan connectors 1x TPM module connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED |
Physical Specifications |
|
| Form Factor | ATX |
| Dimensions(cm) | 30.5 x 24.4 cm |
| LED Lighting | No |
Features |
|
| Multi-GPU Support | AMD CrossFire technology ; Nvidia SLI Technology |
| BIOS | 1x 128 Mb flash, UEFI AMI BIOS |
| Special Features | Mystic Light and Mystic Light Sync
Military Class 4 Guard-Pro VR Ready and VR Boost GAMING LAN with LAN Protect, powered by Intel Audio Boost 4 with Nahimic 2 Lightning Fast Game experience: Turbo M.2, M.2 Shield, Lightning USB 3.1 Gen2 |
Included in Package |
|
| Included in package | Motherboard
Drivers & Utilities Disc Motherboard User Guide I/O Shield, Sata Cable x2 SLI Bridge Connector 1 to 2 LED Extension Y Cable 80cm x1 SATA Cable Labels |
Warranty
Warranty:
MSI Standard Warranty
Warranty Period:
3 Years Warranty
