MSI X370 Xpower Gaming Titanium - Motherboard, AMD AM4, ATX, HDMI 2.0, DisplayPort, USB 3.1 Gen2 Type-C and Type-A, 2xM.2 & 6xSata 6Gb/s, 64GB DDR4 Max Memory
-
MSI X370 Xpower Gaming TitaniumOut of stock$374.91* Taxes not included
Brand: MSI
Model: X370 Xpower Gaming Titanium

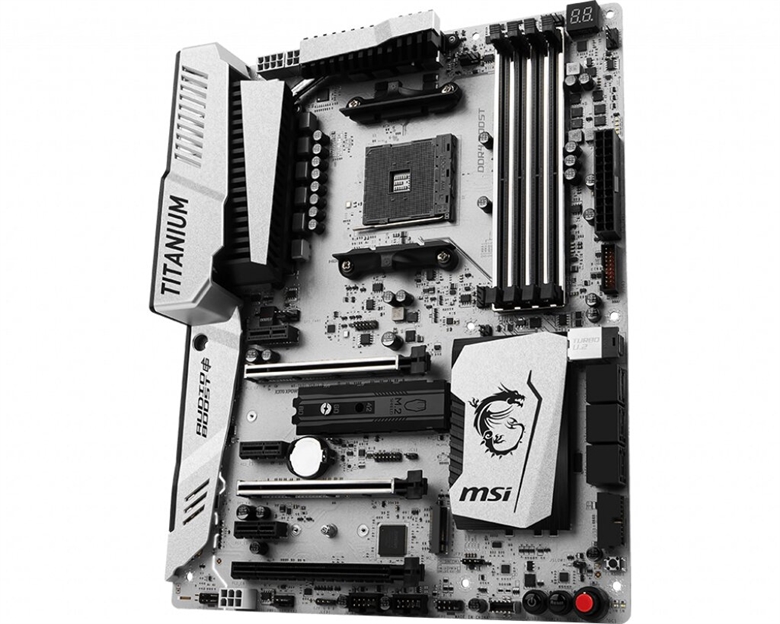

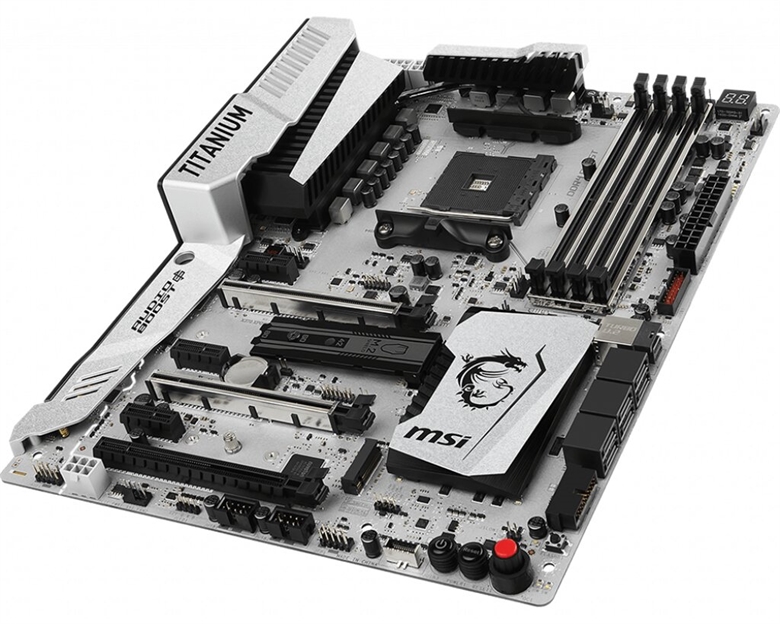

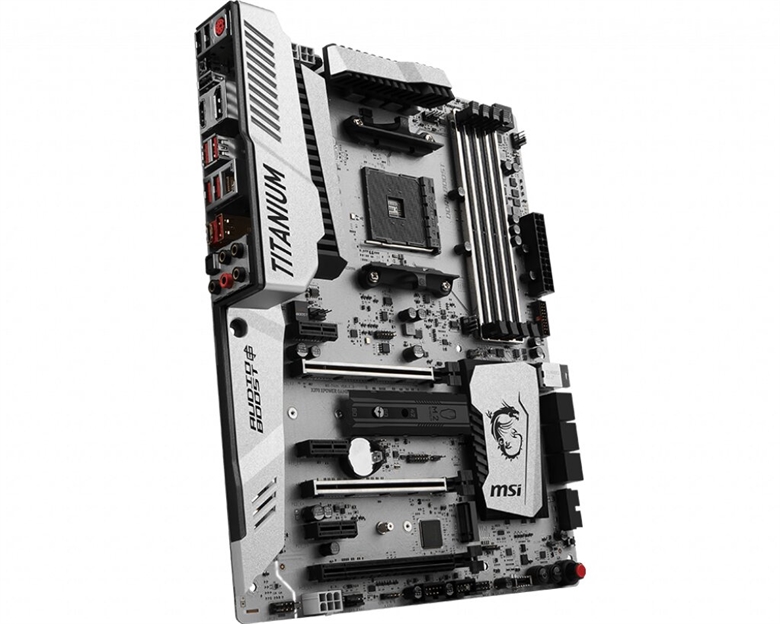

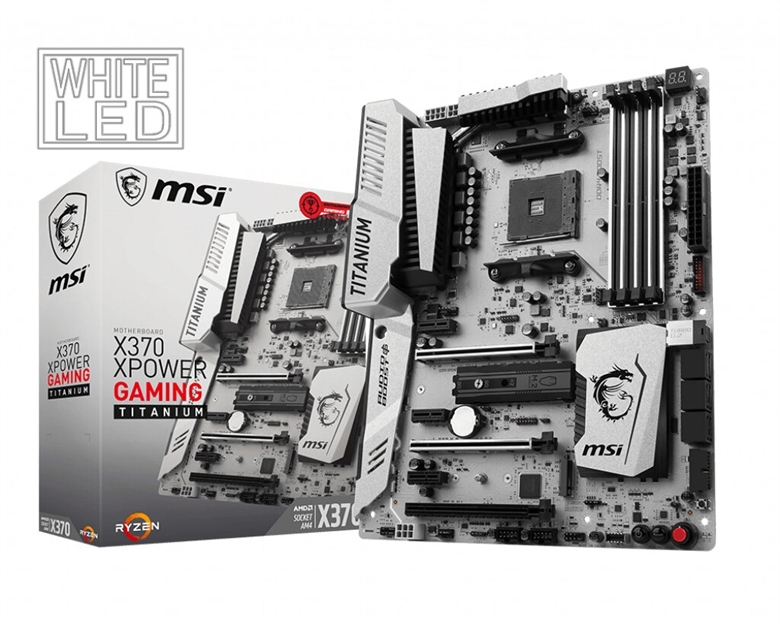

MSI X370 Xpower Gaming Titanium is an ATX motherboard with an AMD AM4 socket, comes with integrated HDMI 2.0, DisplayPort ports, has support for USB 3.1 Gen2 Type-C and Type-A and storage sockets 2xM.2 & 6xSata 6Gb/s. Has great audio drivers with Audio Boost 4 with Nahimic 2. Supports up to 64GB DDR4 at 3200+MHz. NVIDIA SLI and AMD Crossfire Enabled and much more.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | MSI |
| Series | Xpower Gaming Titanium |
| Model | X370 |
| Part Number | X370 XPOWER GAMING TITANIUM |
| Chipset | AMD |
Supported CPU |
|
| CPU Socket | AMD AM4 |
| CPUs Supported | AMD Ryzen, 7th Gen A-series/AthlonTM |
Memory |
|
| Memory Slots | 4x slots |
| Memory Type | DDR4
|
| Maximum Memory | 64 GB |
| Channel Support | Dual-Channel |
Expansion Slots |
|
| PCIe 3.0 | 2x PCIe 3.0 x16 slots |
| PCIe 2.0 | 1x PCIe 2.0 x16 slot(PCI_E6, supports x4 mode)
3x PCIe 2.0 x1 slots |
Storage |
|
| SATA 6Gb/s | 6x SATA 6Gb/s |
| M.2 | 2x M.2 Ports |
| SATA RAID | Yes |
| Intel Optane | No |
| U.2 | No |
Onboard Audio |
|
| Audio Chipset | Realtek® ALC1220 Codec |
| Audio Channels | 7.1 Channel |
Video |
|
| Onboard Video Support | Support Radeon Vega Integrated Graphics |

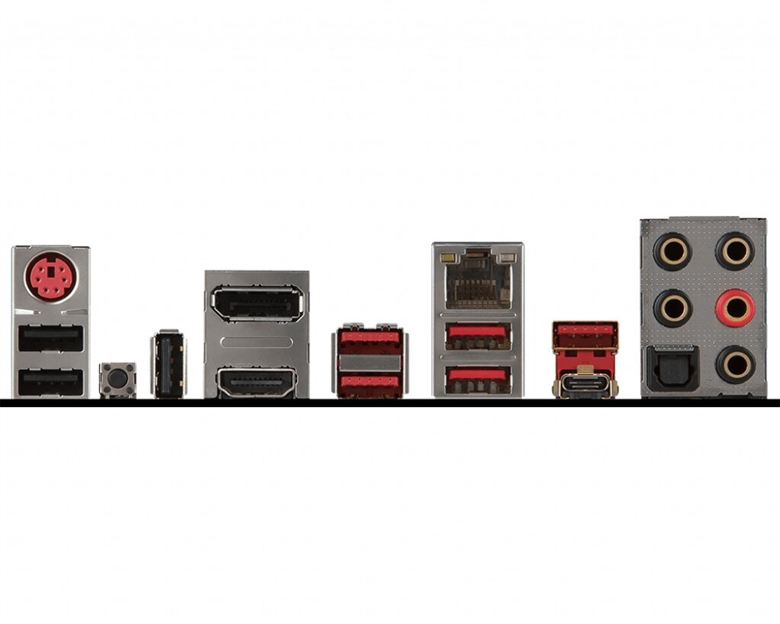

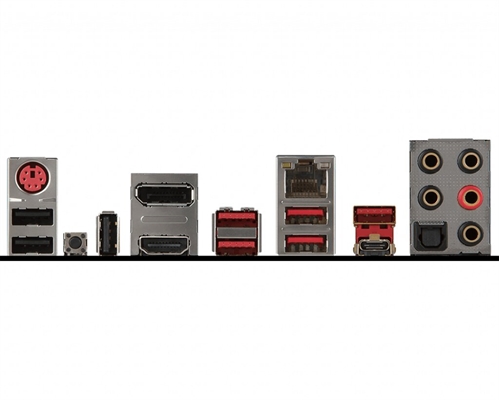

Rear Panel Ports |
|
| Rear Panel Ports | 1x Intel® I211AT Gigabit LAN controller
1x PS/2 keyboard/ mouse combo port 1x Clear CMOS button 3x USB 2.0 Type-A ports 1x DisplayPort 1x HDMI 2.0 port 1x LAN (RJ45) port 4x USB 3.1 Gen1 Type-A ports 1x USB 3.1 Gen2 Type-A port 1x USB 3.1 Gen2 Type-C port 5x OFC audio jacks 1x Optical S/PDIF OUT connector |
Internal Connectors |
|
| Onboard USB | 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)2x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)1x USB 3.1 Gen2 connector (supports additional 1 USB 3.1 Gen2 Type C port) |
| Power Pins | 1x 24-pin ATX 12V power connector
1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin ATX 12V power connector |
| Other connectors | 6x SATA 6Gb/s connectors
1x 4-pin CPU fan connector 1x 4-pin water-pump-fan connector 4x 4-pin system fan connectors 1x LED connector 1x 2-pin Slow mode connector 1x TPM module connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector |
Physical Specifications |
|
| Form Factor | ATX |
| Dimensions(cm) | 30.4 x 24.3 cm |
| LED Lighting | No |
Features |
|
| Multi-GPU Support | AMD CrossFire technology ; Nvidia SLI Technology |
| BIOS | 1x 128 Mb flash, UEFI AMI BIOS |
| Special Features | In-Game Weapons: Game Boost
GAMING Hotkey X-Boost Military Class 5, Guard-Pro Audio Boost 4 with Nahimic 2 Turbo M.2 with M.2 Shield Mystic Light Extension and Mystic Light Sync VR Ready and VR Boost |
Included in Package |
|
| Included in package | Motherboard
Drivers & Utilities Disc Motherboard User Guide I/O Shield Sata Cable x6 SLI Bridge Connector 1 to 2 LED Extension Y Cable 80cm x1 SATA Cable Labels |
Warranty
Warranty:
MSI Standard Warranty
Warranty Period:
3 Years Warranty
