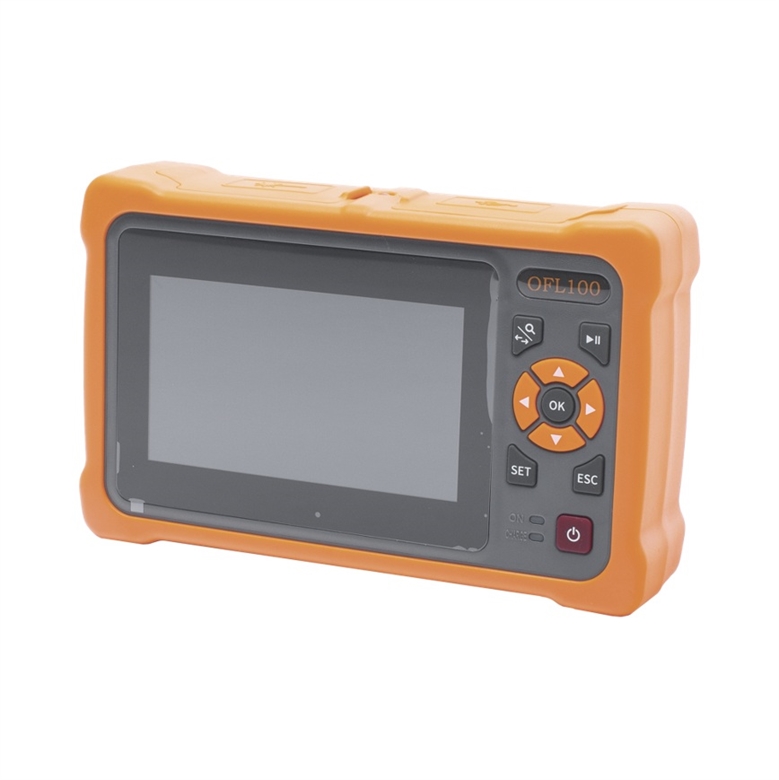

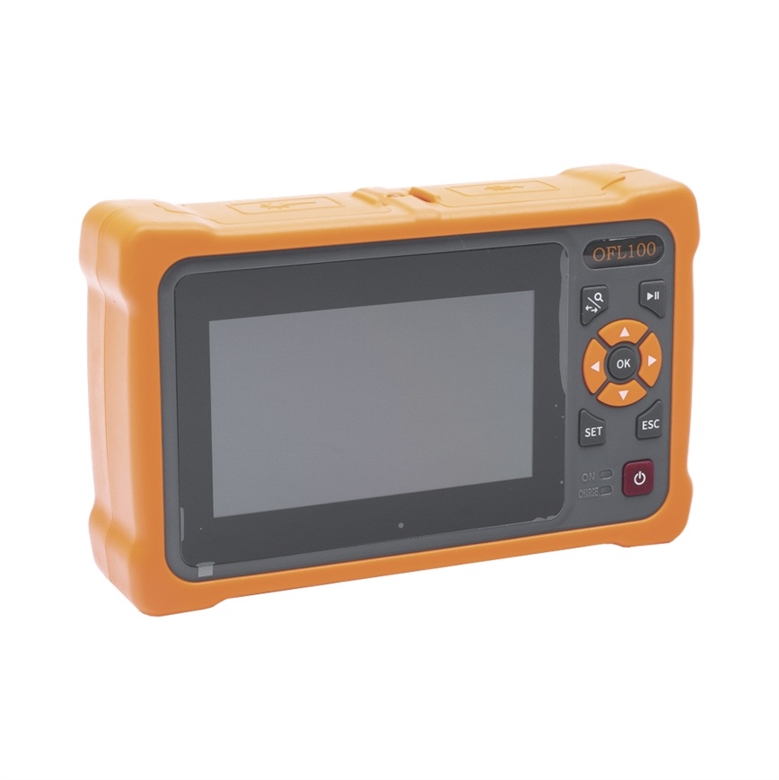

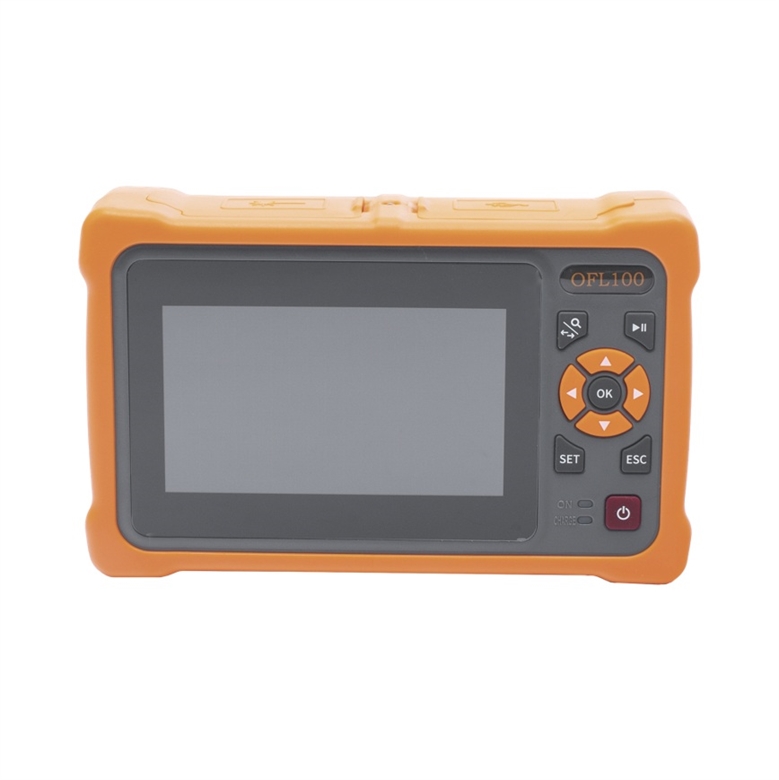

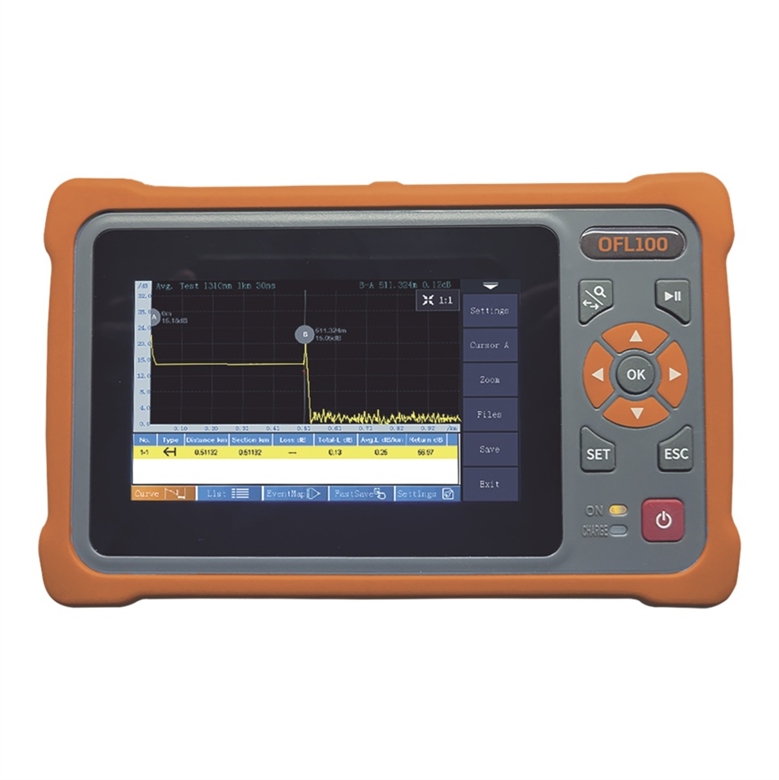

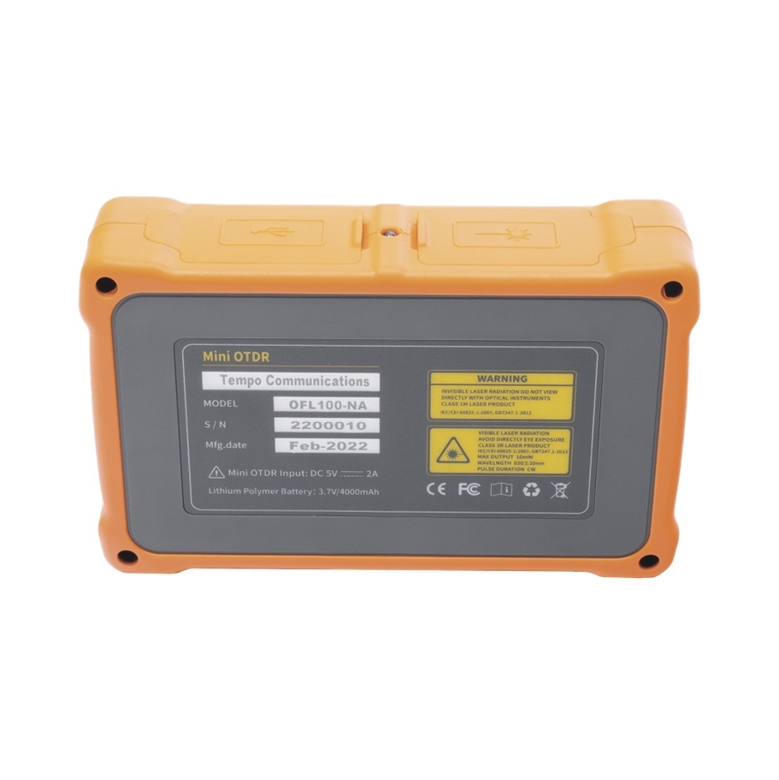

Tempo Communications - Handheld Single-Mode OTDR Reflectometer, 4.3" Touchscreen, 1310-1550nm Wavelengths, Integrated OPM, VFL and SLS Functions, 0.5 kg
-
Tempo Communications | Single-Mode 1310-1550nm | 4.3" Touchscreen | 4-in-1 Multi-ToolIn stock$715.50* Taxes not included
Streamline your fiber optic deployments with the handheld single-mode OTDR engineered for last-mile networks. Its intuitive touchscreen interface and Auto Test mode allow technicians to pinpoint cuts, dirty connectors, and critical faults at the push of a button. By integrating an optical power meter, visual fault locator, and light source into a single rugged 0.5 kg device, you dramatically slash troubleshooting times in the field.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Tempo Communications |
| Model | OFL100 |
| Type | Tool Kit |
Specifications |
|
| Application | Network |
| Specifications | - Battery Lifetime: More than 12 Hours Continuous Test
- Data Storage: Internal 8GB Micro SD Card (Over 200,000 curves) - Display: 4.3-inch 800x400 TFT LCD Touchscreen - Dynamic Range: 26 dB at 1310 nm / 24 dB at 1550 nm - Event Deadzone: 2.5 m - Integrated Functions: OTDR, OPM, VFL, SLS, Flashlight, RJ45 Cable Test - Laser Class: Class 2, Less than 1mW (VFL) - Network Connections: FTTx and Point-to-Point last mile - PC Software: Free Trace Viewer documentation software - Test Modes: Auto OTDR, Expert OTDR, Link Map (Event Map) - Wavelengths: 1310 nm and 1550 nm Monomode (Singlemode) |
Features |
|
| Features | - Auto Mode operation for one-button automated testing
- Dual wavelength testing capability (1310nm/1550nm) - Event Map mode providing linear graphical Pass/Fail analysis - Expert Mode for custom individual parameter configurations - Multi-tool integration reducing the number of devices needed in the field - Ruggedized handheld housing design - Telcordia GR196 compliant SOR data file format |
Dimensions |
|
| Dimensions(cm) | 10.9 x 17.3 x 4.5 |
| Weight | 0.5 kg (Including Battery) |
Warranty
Warranty:
Tempo Communications Standard Warranty
Warranty Period:
2 Years Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Tempo Communications for you. You may also contact Tempo Communications directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Tempo Communications and are final.
