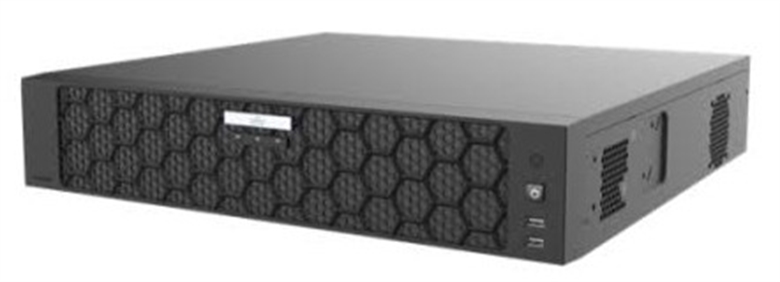

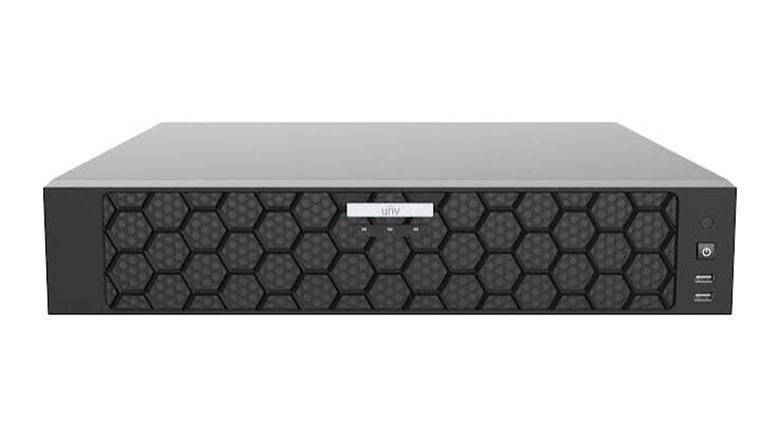

Uniview UN-NVR504-64E-IQ - Network Video Recorder, 64 IP Channels, Dual 4K HDMI, 4 SATA Bays, Up to 16TB
-
Uniview UN-NVR504-64E-IQ | 64-Channel NVR | 16TBIn stock$1,012.87
Built for enterprise-grade video surveillance, the Uniview UN-NVR504-64E-IQ supports up to 64 IP cameras with advanced AI-powered analytics. It features Ultra 265 compression, independent dual HDMI and VGA outputs, recording resolutions up to 32MP, and expandable storage through four SATA drive bays. With IQ functions, intelligent search capabilities, and ONVIF compatibility, it is an ideal solution for large-scale security deployments in commercial, industrial, and institutional environments.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Uniview |
| Model | NVR504-E-IQ Series |
| Serie | UN-NVR504-64E-IQ |
| Type | NVR |
Recording Details |
|
| Channels | 64 Channels |
| Inputs | 1x RJ-45 |
| Audio Inputs | 1 Channel RCA Audio In |
| Disk Slots | 4 x SATA Interfaces |
| Max Capacity | Up to 16TB |
| Max Resolution | 4k |
| Max Frame Rate | Smart Off: 2 x 32MP(30fps), 4 x 16MP(30fps), 5 x 12MP(30fps), 8 x 4K(30fps), 10 x 6MP(30fps), 12 x 5MP(30fps), 16 x 4MP(30fps), 20 x 3MP(30fps), 32 x 1080P(30fps), 64 x 720P(30fps)
Smart On: 1 x 32MP(30fps), 3 x 16MP(30fps), 4 x 12MP(30fps), 6 x 4K(30fps), 8 x 6MP(30fps), 9 x 5MP(30fps), 12 x 4MP(30fps), 16 x 3MP(30fps), 24 x 1080P(30fps), 48 x 720P(30fps), 64 x D1 |
| Compression Format | Ultra 265, H.265, H.264 |
Outputs Details |
|
| PoE | No |
| Audio Outputs | 2 Channel RCA Audio Out |
| Other Ports | 2 × RJ45 Gigabit Ethernet
2 × USB 2.0 (Front) 2 × USB 3.0 (Rear) 1 × RS232 1 × RS485 1 × eSATA 16 Alarm In 10 Alarm Out |
| Video Ports | 2x HDMI 2x VGA |
| Resolution per Ouputs | HDMI:4K(3840x2160)/60Hz, 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
Features |
|
| Features | - Supports 64 IP camera channels
- Ultra 265, H.265 and H.264 compression - AcuSearch intelligent search - Smart Intrusion Prevention (SIP) - Ultra Motion Detection (UMD) - Face Detection support - Vehicle Detection support - People Counting support - Video Metadata support - Traffic Monitoring support - ANR technology - RAID 0, 1 and 5 support - Dual HDMI and dual VGA outputs - Cloud upgrade support - ONVIF Profile S, G and T compatible |
Warranty
Warranty:
UniView Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with UniView for you. You may also contact UniView directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by UniView and are final.
