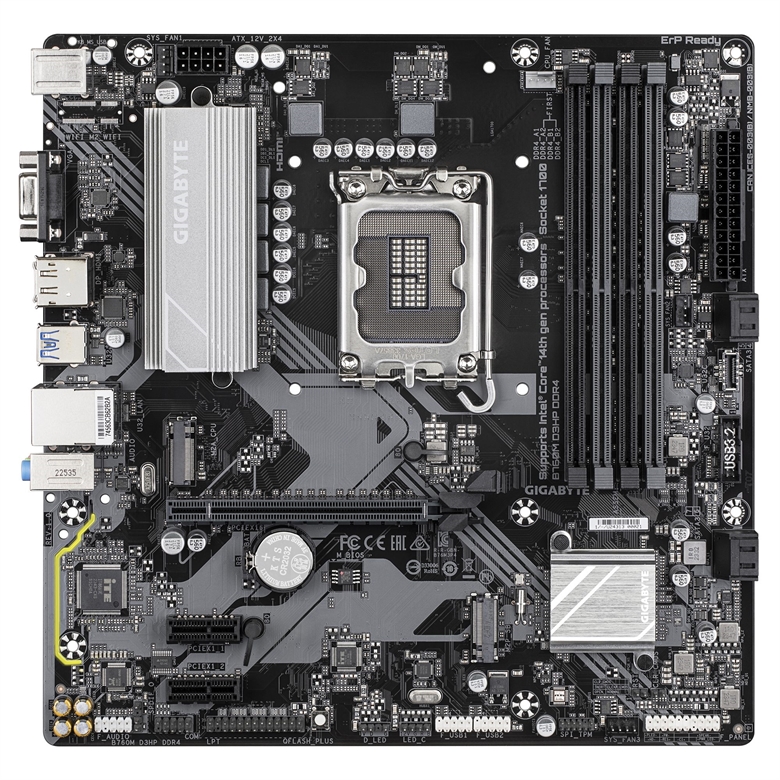

GIGABYTE B760M D3HP DDR4 - Motherboard, LGA 1700, mATX, Dual-Channel, 128GB DDR4 Max Memory
-
GIGABYTE B760M D3HP DDR4 | LGA 1700In stockS/.507.16* Taxes included
Support for DDR4 XMP Up to 5333MHz and Beyond* GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yape or Bank Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Gigabyte |
| Model | B760M D3HP DDR4 |
| Chipset | Intel |
Supported CPU |
|
| CPU Socket | LGA 1700 |
| CPUs Supported | Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
Memory |
|
| Memory Slots | 4x slots |
| Memory Type | DDR4
|
| Maximum Memory | 128 GB |
| Channel Support | Dual-Channel |
Expansion Slots |
|
| PCIe Slots | 1x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
2x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
Storage |
|
| SATA 6Gb/s | 4x SATA 6Gb/s |
| M.2 | 2x M.2 Ports |
| SATA RAID | Yes |
| Intel Optane | No |
Onboard Audio |
|
| Audio Channels | 7.1 Channel |

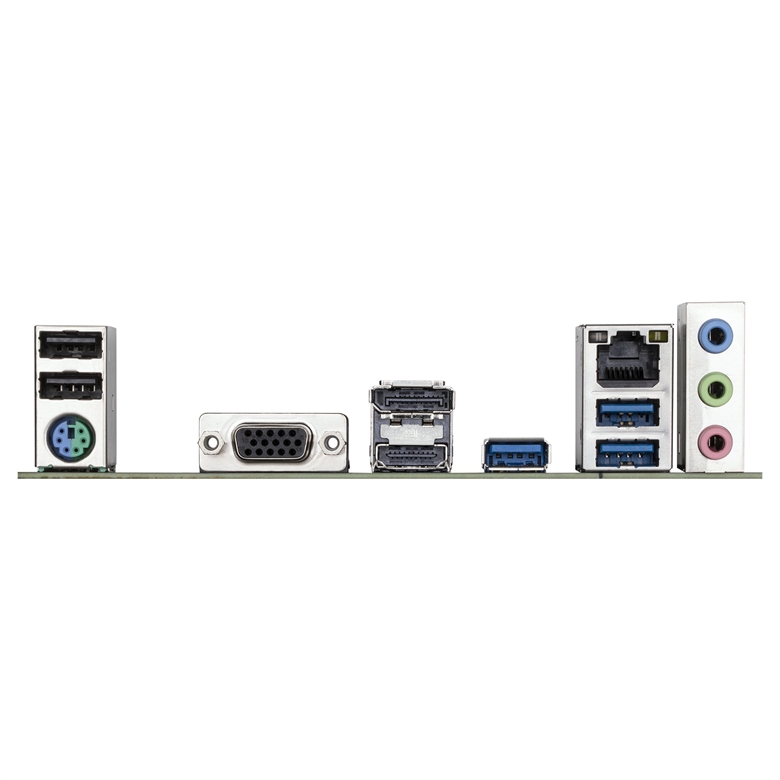

Rear Panel Ports |
|
| Rear Panel Ports | 2x USB 2.0/1.1 ports
1x PS/2 keyboard/mouse port 1x D-Sub port 1x DisplayPort 1x HDMI port 3x USB 3.2 Gen 1 ports 1x RJ-45 port 3x audio jacks |
Internal Connectors |
|
| Power Pins | 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector |
| Other connectors | 1x CPU fan header
3x system fan headers 1x addressable LED strip header 1x RGB LED strip header 2x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB Type-C header, with USB 3.2 Gen 1 support 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1x serial port header 1x parallel port header 1x S/PDIF Out header 1x Q-Flash Plus button 1x reset jumper 1x Clear CMOS jumper |
Physical Specifications |
|
| Form Factor | Micro ATX |
| Dimensions(cm) | 24.4 x 24.4cm |
| LED Lighting | No |
Features |
|
| BIOS | 1x 128 Mbit flash |
| Special Features | Support for GIGABYTE Control Center (GCC)
Support for Q-Flash Support for Q-Flash Plus |
Warranty
Warranty:
Gigabyte Standard Warranty
Warranty Period:
3 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Gigabyte for you. You may also contact Gigabyte directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Gigabyte and are final.
