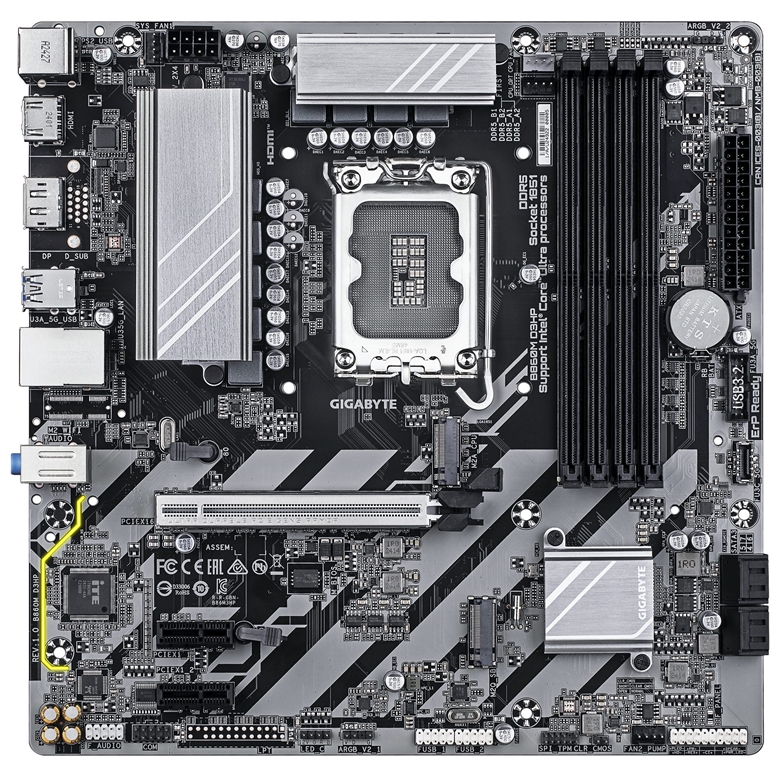

GIGABYTE B860M D3HP - Motherboard, LGA 1851, mATX, Dual-Channel, 256GB DDR5 Max Memory
-
GIGABYTE B860M D3HP | LGA 1851In stockS/.529.09* Taxes included
Brand: GIGABYTE
Model: b860m d3hp
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability. UD motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yape or Bank Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Gigabyte |
| Model | B860M D3HP |
| Chipset | Intel |
Supported CPU |
|
| CPU Socket | LGA 1851 |
| CPUs Supported | Intel Core Ultra Processors |
Memory |
|
| Memory Slots | 4x slots |
| Memory Type | DDR5 |
| Maximum Memory | 256 GB |
| Channel Support | Dual-Channel |
Expansion Slots |
|
| PCIe Slots | 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
2x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
Storage |
|
| SATA 6Gb/s | 4x SATA 6Gb/s |
| M.2 | 2x M.2 Ports |
| SATA RAID | Yes |
| Intel Optane | No |
Onboard Audio |
|
| Audio Channels | 7.1 Channel |

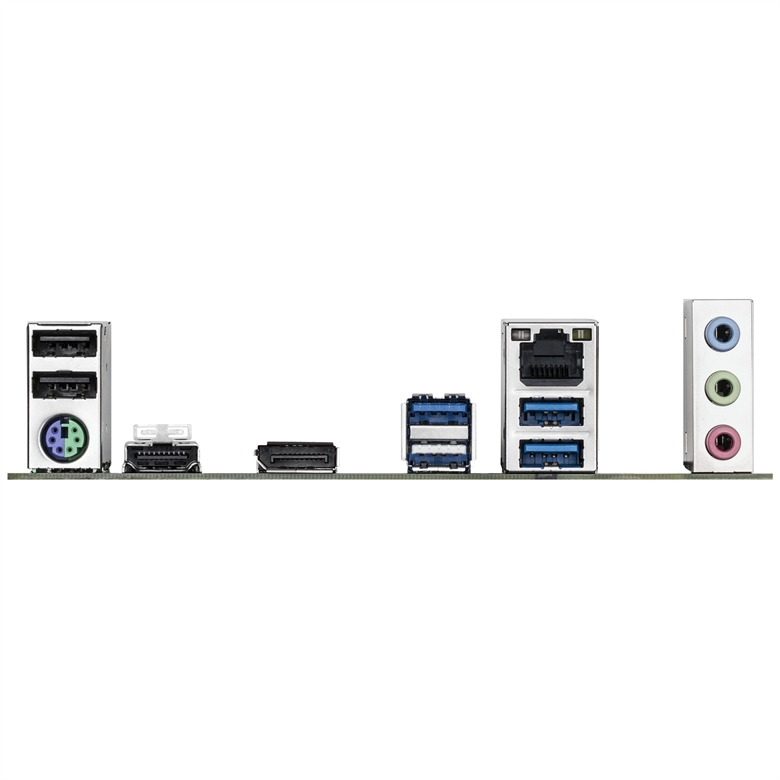

Rear Panel Ports |
|
| Rear Panel Ports | 3x USB 2.0/1.1 ports
1x PS/2 keyboard/mouse port 1x DisplayPort 1x HDMI port 3x USB 3.2 Gen 1 ports 1x RJ-45 port 3x audio jacks |
Internal Connectors |
|
| Onboard USB | 1x USB Type-C header, with USB 3.2 Gen 1 support
1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers |
| Power Pins | 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector |
| Other connectors | 1x CPU fan header
1x CPU fan/water cooling pump header 1x system fan header 1x system fan/water cooling pump header 2x addressable RGB Gen2 LED strip headers 1x RGB LED strip header 2x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1x serial port header 1x Clear CMOS jumper |
Physical Specifications |
|
| Form Factor | Micro ATX |
| Dimensions(cm) | 24.4 x 24.4 cm |
| LED Lighting | No |
Features |
|
| BIOS | AMI UEFI BIOS |
Warranty
Warranty:
Gigabyte Standard Warranty
Warranty Period:
3 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Gigabyte for you. You may also contact Gigabyte directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Gigabyte and are final.
