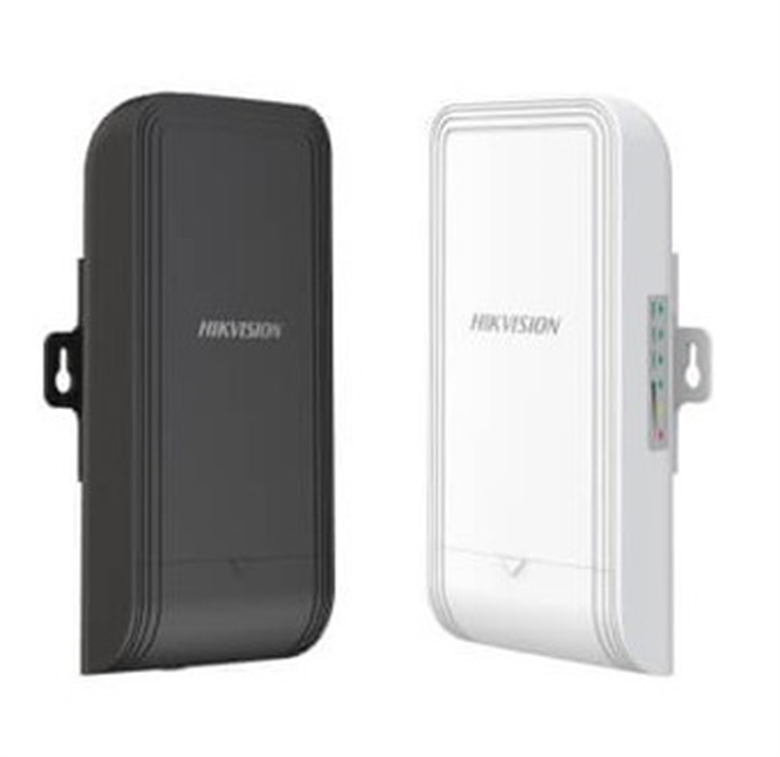

Hikvision DS-3WF0EC-2NT(O-STD) - Wireless Bridge for Elevators, 2.4GHz, 300Mbps, 500m, 2-Unit Kit
-
Hikvision DS-3WF0EC-2NT(O-STD) | 2.4GHz | 300MbpsIn stockS/.196.28
Connect IP cameras and network equipment in elevator systems without relying on long cable runs. The Hikvision DS-3WF0EC-2NT(O-STD) kit includes two wireless bridges for point-to-point links on the 2.4GHz band, delivering speeds of up to 300Mbps and an advertised range of up to 500m. It features built-in 7dBi 2×2 MIMO antennas, two 10/100Mbps RJ45 ports per device, and 1224V passive PoE power. Its IP55 rating makes it suitable for demanding installations.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yape or Bank Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
General |
|
|---|---|
| Brand | Hikvision |
| Model | DS-3WF0EC-2NT(O-STD) |
| Interface | PoE, RJ-45 Fast Ethernet |
| Ports | 2 × 10/100 Mbps RJ45 ports |
| Standards | WIFI 4 |
| Maximum Range | Up to 500 m |
| Type | Pole |
| Antennas | Built-in 7 dBi 2 × 2 MIMO antenna |
| Dimensions(cm) | 9.08 × 5.78 × 18.78 cm |
| Weight | Net weight: 0.26 kg per device |
Key Features |
|
| Band | Single Band |
| Frequency | 2400-2483.5 MHz (2.4 GHz) |
| Data Rate | Up to 300 Mbps |
| Security | WPA2-PSK; hidden wireless network name |
| Features | - Up to 500 m wireless transmission distance.
- 802.11n wireless bridge with a maximum rate of 300 Mbps. - Built-in 7 dBi 2 × 2 MIMO antenna. - Visualized topology management. - Real-time alarm push technology. - Point-to-point (PTP) throughput: 50 Mbps at 0.2 km and 30 Mbps at 0.5 km, using HT40. - 10/20/40 MHz channel width. - Automatic and manual channel selection. - IFM and IPM application functions. - Remote management through Hik-Partner Pro. - IP55 ingress protection rating. |
Warranty
Warranty:
Hikvision Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Hikvision for you. You may also contact Hikvision directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Hikvision and are final.
