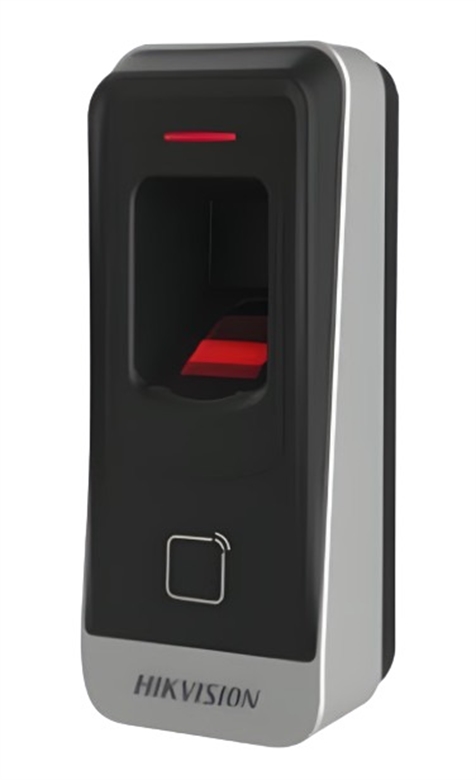

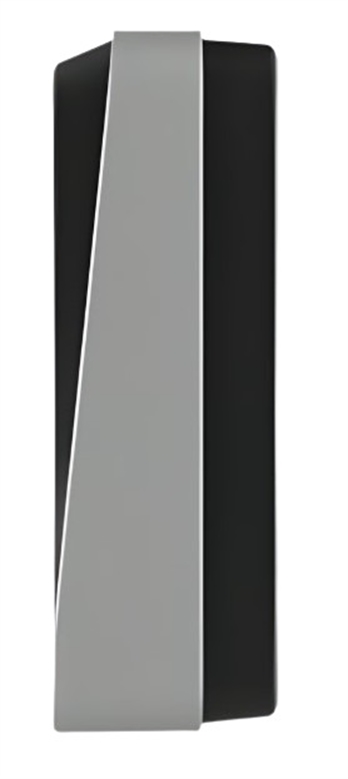

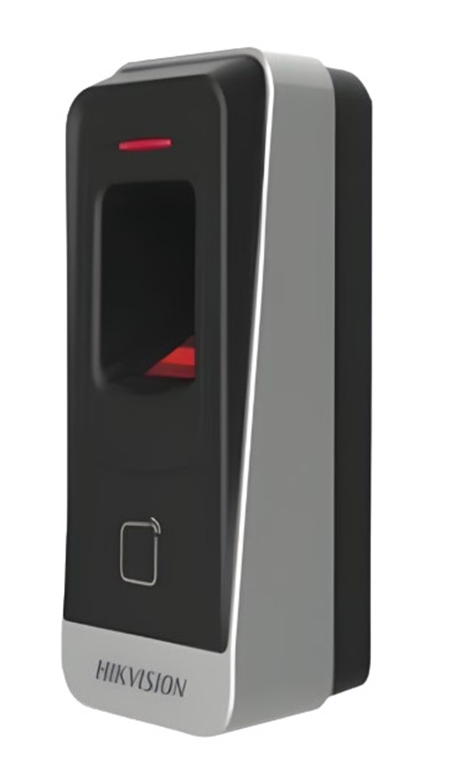

Hikvision DS-K1201AEF - Biometric Access Control Reader, Fingerprint and EM Cards, RS-485, IP65
-
Hikvision DS-K1201AEF | Fingerprint and EM Card ReaderIn stockS/.248.54
Enhance facility security with the Hikvision DS-K1201AEF biometric reader, designed for professional access control systems. It combines fingerprint and EM card authentication, stores up to 5,000 fingerprints, and uses RS-485 communication to connect to compatible access controllers. Its optical sensor, tamper protection, and built-in buzzer support reliable, convenient identification. Integrate it into your Hikvision system for efficient access management.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yape or Bank Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Hikvision |
| Model | DS-K1201AEF(O-STD) |
| Type | Fingerprint Reader |
Specifications |
|
| Specifications | - Product type: Fingerprint and card reader.
- Fingerprint sensor: Optical CMOS. - Fingerprint storage capacity: Up to 5,000 fingerprints. - Fingerprint comparison modes: 1:1 and 1:N. - Card type: EM card. - Card reading distance: 30100 mm. - Communication interface: RS-485. - Communication parameters: 19,200 bps, N-8-1. - Power supply: 12 V DC 10%. - Maximum power consumption: 1.6 W. - Tamper protection: Supported. - Status indicator: Built-in buzzer. - Installation: Surface mounting. - Operating temperature: -40 C to 70 C. - Operating humidity: 10%90%, non-condensing. - Dimensions (W × H × D): 62 × 132 × 44 mm. |
Features |
|
| Features | - Supports fingerprint and EM card authentication.
- Stores up to 5,000 fingerprints. - Optical fingerprint sensor with 1:1 and 1:N comparison. - RS-485 communication with optical isolation and noise suppression. - Tamper protection and built-in status buzzer. |
Dimensions |
|
| Dimensions (mm) | 62 × 132 × 44 mm |
Warranty
Warranty:
Hikvision Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Hikvision for you. You may also contact Hikvision directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Hikvision and are final.
