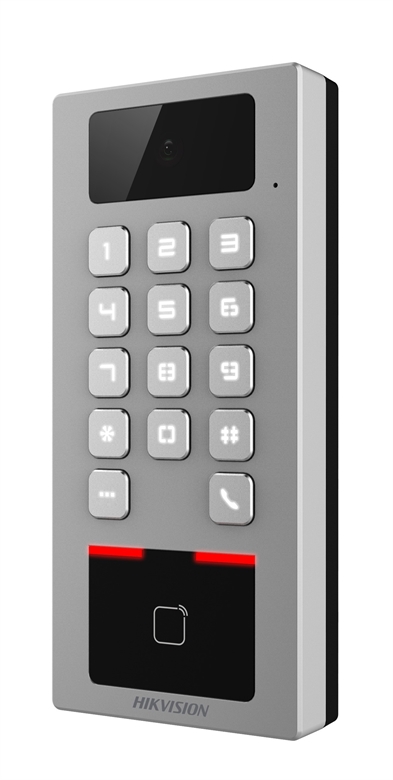

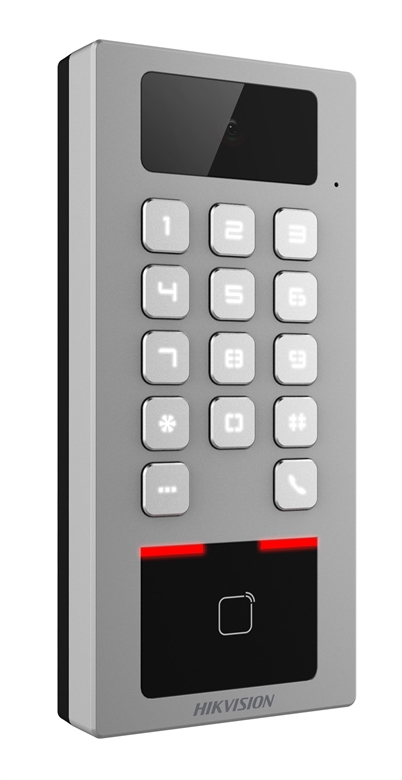

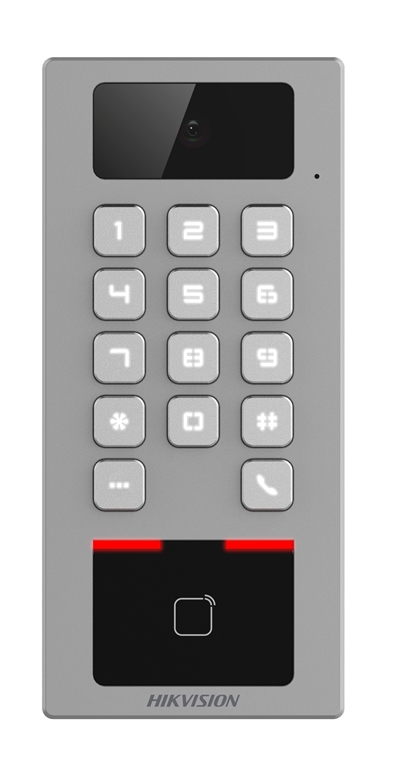

Hikvision DS-K1T502DBWX-C - Access Control Terminal with Keypad, Card Reader, 2 MP Camera and IP Video Intercom
-
Hikvision DS-K1T502DBWX-C | Keypad | 2 MP CameraIn stockS/.548.96
Manage access and communicate with visitors from a single device with the Hikvision DS-K1T502DBWX-C terminal. It combines compatible card and PIN authentication with a 2 MP camera, two-way audio, and IP video intercom functionality. Ethernet, 2.4 GHz Wi-Fi, and Bluetooth connectivity support flexible installation, while the Hik-Connect app enables remote control. Its IP65 and IK09 ratings provide protection against dust, water, and impact, making it suitable for outdoor access control installations.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yape or Bank Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Hikvision |
| Model | DS-K1T502DBWX-C |
| Type | Access Control Panel |
Specifications |
|
| Specifications | - Product type: Access control terminal with video intercom.
- Series: Pro Series. - Operating system: Linux. - ROM: 4 GB. - RAM: 256 MB. - CPU: 960 MHz. - Camera resolution: 2 MP. - Field of view: 110 horizontal, 81 vertical, 122 diagonal. - Video compression: H.264 and H.265. - Audio: Built-in omnidirectional microphone and loudspeaker. - Network: 1 × RJ-45, 10/100 Mbps; Wi-Fi 2.4 GHz, IEEE 802.11b/g/n; Bluetooth 2.1/4.2. - Card types: M1 and DESFire. - Card reading distance: 03 cm. - Card capacity: 100,000. - Event capacity: 300,000. - Interfaces: 1 lock control, 1 exit button input, 1 door contact input, 1 alarm input, 1 alarm output, 1 tamper interface, 1 RS-485 and 1 Wiegand. - Built-in access controller: Yes. - Video intercom: Supported through SIP. - Remote management: Hik-Connect. - Power supply: 1224 V DC, 1 A. - Maximum power consumption: 12 W. - Protection rating: IP65 and IK09. - Operating temperature: -40 C to +70 C. - Installation environment: Indoor or outdoor, subject to installation requirements. |
Features |
|
| Features | - Integrated access control and video intercom.
- 2 MP camera with wide-angle field of view. - Supports M1 and DESFire cards. - Two-way audio communication. - Remote management through Hik-Connect. - Wi-Fi and Bluetooth connectivity. - IP65 ingress protection and IK09 impact resistance. - Supports Wiegand and RS-485 interfaces. |
Dimensions |
|
| Dimensions (mm) | 81 × 177 × 24.1 mm |
Warranty
Warranty:
Hikvision Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Hikvision for you. You may also contact Hikvision directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Hikvision and are final.
