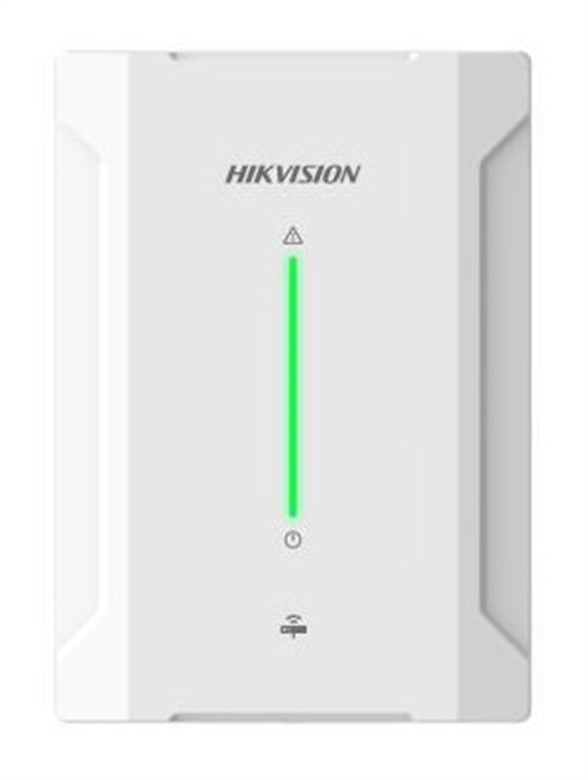

Hikvision DS-PM1-RT-HWB - Tri-X Wireless Receiver for Alarm Panels, 32 Zones, 433 MHz, Up to 1300 m Range
-
Hikvision DS-PM1-RT-HWB | Tri-X Wireless ReceiverIn stockS/.169.26
Expand your alarm system coverage with the Hikvision DS-PM1-RT-HWB wireless receiver, designed for compatible AX Hybrid Pro control panels. Its 433 MHz Tri-X technology supports up to 32 wireless detectors and additional wireless sounders for indoor and outdoor use. It offers a transmission range of up to 1,300 meters under ideal conditions and uses Speed-X Bus to connect to the control panel. Enhance facility security with Hikvision's wireless expansion solution.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yape or Bank Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Hikvision |
| Model | DS-PM1-RT-HWB |
| Type | Wireless Control |
Specifications |
|
| Specifications | - Product type: Tri-X wireless receiver
- Wireless frequency: 433 MHz - Wireless transmission range: Up to 1,300 m - Wired bus: 1 Speed-X bus - Power supply: 928 V DC, 1 A - Typical operating voltage: 12 V DC - Maximum current consumption: 100 mA at 12 V DC - Quiescent current consumption: 40 mA at 12 V DC - Wireless security: Frequency hopping with 128-bit AES encryption - LED indicators: Green for power/find-me; orange for alarm/fault - Supported wireless detectors: Up to 32 - Supported wireless indoor sounders: Up to 4 - Supported wireless outdoor sounders: Up to 8 - Operating temperature: -10 C to 40 C - Operating humidity: 10%90% - Housing material: Plastic - Compatibility: AX Hybrid Pro control panels |
Features |
|
| Features | - Expands wireless detector connectivity for AX Hybrid Pro alarm panels.
- Supports Tri-X wireless communication at 433 MHz. - Connects to the control panel through the Speed-X bus. - Supports up to 32 wireless detectors. - Supports compatible indoor and outdoor wireless sounders. - Uses frequency hopping and 128-bit AES encryption. |
Dimensions |
|
| Dimensions (mm) | 110 × 155 × 32 mm |
| Weight | 233 g |
Warranty
Warranty:
Hikvision Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Hikvision for you. You may also contact Hikvision directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Hikvision and are final.
