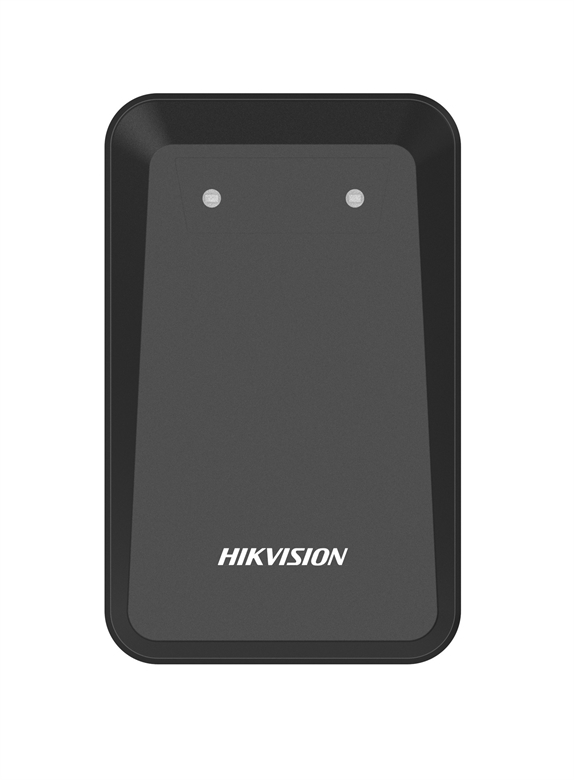

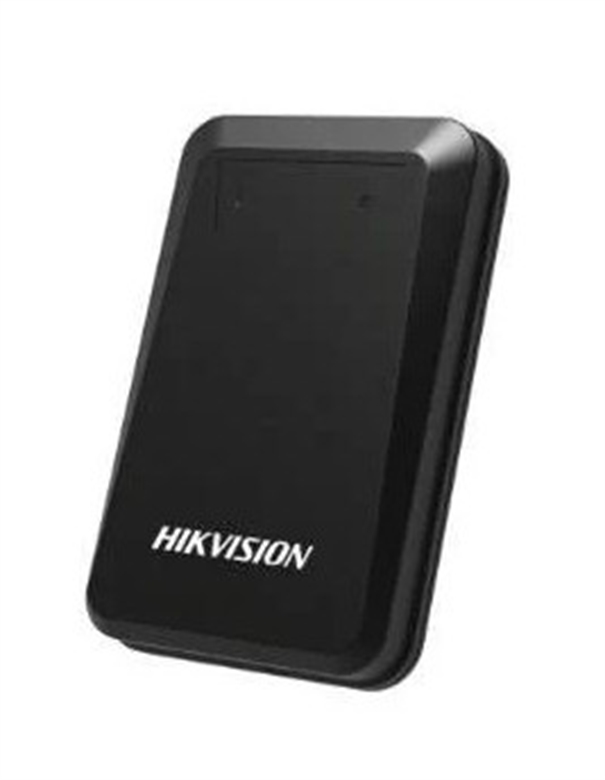

Hikvision DS-TMG035(Anti-fall Radar)(O-STD) - Anti-Fall Radar for Vehicle Barriers, 79 GHz Detection, IP67
-
Hikvision DS-TMG035 | Anti-Fall Radar | 79 GHzIn stockS/.990.57
Enhance vehicle access safety with the Hikvision DS-TMG035 anti-fall radar, designed to detect vehicles and pedestrians and help prevent the barrier arm from lowering while someone is in its path. Its millimeter-wave radar technology provides stable detection, movement-direction recognition, and an adjustable detection range of up to 6 meters. It supports RS-485 or Wi-Fi communication and features LED status indicators and IP67 protection for demanding installations. Improve entrance and exit management with this dedicated Hikvision safety solution.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yape or Bank Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Hikvision |
| Model | DS-TMG035(ANTI-FALL RADAR)(O-STD) |
| Type | Movement Sensor |
Specifications |
|
| Specifications | - Product type: Anti-fall radar for vehicle barriers.
- Radar technology: Millimeter-wave radar (MMIC). - Transmitting frequency: 79 GHz. - Beamwidth: 10 vertical, 38 horizontal. - Response time: 50 ms. - Adjustable trigger distance: 0.16 m. - Adjustable horizontal detection width: 02 m. - Detection targets: Vehicles and people in anti-fall mode. - Adjustable vehicle-following distance: 0.52 m. - Communication and configuration: Serial port/Bluetooth. - Transmitting power: 10 mW. - Operating voltage: 932 V DC (with power adapter). - Operating current: < 0.25 A. - Power consumption: < 3 W. - Protection rating: IP67. - Operating temperature: -40 C to +85 C. - Dimensions (L × W × H): 96 × 60 × 29 mm. - Package dimensions (L × W × H): 148 × 115 × 65 mm. - Packaged weight: 1.1 kg. |
Features |
|
| Features | - Helps prevent barrier arms from lowering while vehicles or people are passing.
- Detects vehicles and pedestrians in anti-fall mode. - Adjustable detection distance and width. - IP67 protection against dust and water. - Supports serial port and Bluetooth configuration. |
Dimensions |
|
| Dimensions (mm) | 96 × 60 × 29 mm |
| Weight | 1.1 kg |
Warranty
Warranty:
Hikvision Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Hikvision for you. You may also contact Hikvision directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Hikvision and are final.
