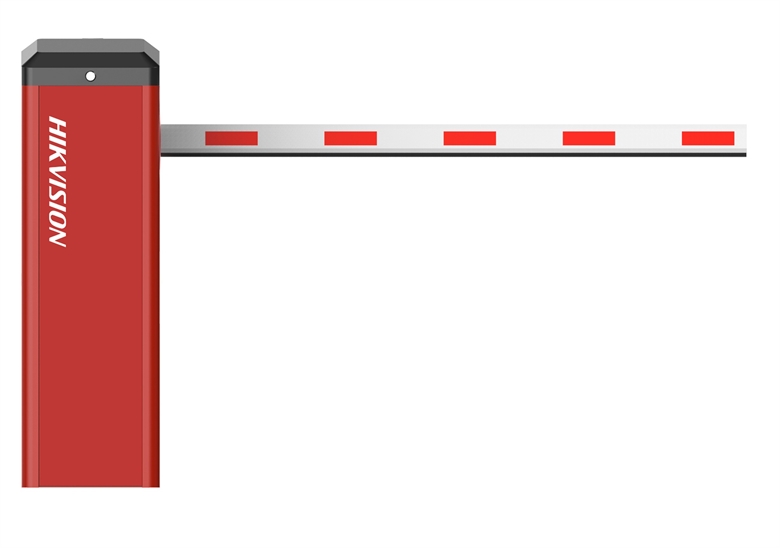

Hikvision DS-TMG520-H/B - Automatic Vehicle Barrier Gate with 3 m Octagonal Boom Arm, Brushless DC Motor
-
Hikvision DS-TMG520-H/B | Automatic Vehicle BarrierIn stockS/.10,395.33
Manage vehicle entry and exit with the Hikvision DS-TMG520-H/B automatic barrier gate, designed for parking facilities, corporate buildings, and vehicle access points. It includes a 3-meter straight octagonal boom arm and a brushless DC motor with adjustable opening and closing speeds to help maintain smooth traffic flow. Its metal housing provides IP54 protection and is designed for up to 5 million operating cycles. Improve access management at your facility with a reliable Hikvision solution.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yape or Bank Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Hikvision |
| Model | DS-TMG520-H/B(3M OCTA) |
| Type | Access Control Panel |
Specifications |
|
| Specifications | - Product type: Automatic vehicle barrier gate
- Boom pole type: Straight octagonal - Boom pole length: 3 m - Motor type: DC brushless motor - Opening speed: 0.9 s by default; adjustable to 0.9, 1.2 or 2 s - Closing speed: 3 s by default; adjustable to 1.5, 2 or 3 s - Working voltage: 220 V AC 15% - Current: 1.5 A - Power consumption: 300 W - Remote control frequency: 433 MHz - Duty cycle: 100% - Number of cycles: 5,000,000 - Protection rating: IP54 - Operating temperature: -30 C to 70 C - Housing material: SGCC steel - Housing thickness: 2 mm - Boom pole material: AL6061 - Boom pole color: White with red stripe - Boom direction: Right by default; reversible - Communication interfaces: RS-485, relay/control inputs and reserved network interface - Anti-collision support: Induction loop, infrared and pressure wave methods |
Features |
|
| Features | - Automatic vehicle access control for entrances and exits.
- Adjustable opening and closing speeds. - Multiple control methods, including remote control, relay and software commands. - Anti-collision functions to help prevent the boom from striking vehicles or pedestrians. - Reversible boom direction. - IP54-rated housing for environmental protection. - Built-in vehicle detector compatible with induction loops. |
Dimensions |
|
| Dimensions (mm) | - Barrier housing: 1248 × 486 × 480 mm (L × W × H)
- 3 m octagonal boom pole: 98 × 45 × 3000 mm - Housing with packaging, without boom pole: 1266 × 504 × 626 mm |
| Weight | - Barrier housing: 59.3 5 kg
- 3 m octagonal boom pole: 2.8 0.3 kg - Boom pole with packaging: 3.11 0.3 kg |
Warranty
Warranty:
Hikvision Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Hikvision for you. You may also contact Hikvision directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Hikvision and are final.
