Ubiquiti UISP-Horn - Directional Horn Antenna, Single-Band, 5.15-6.875GHz, 19.5dBi, 30 Beamwidth, Pole Mount, IPX6
-
Ubiquiti UISP-Horn | 5.15-6.875GHz | 19.5dBi | 30 BeamwidthIn stockS/.1,044.83

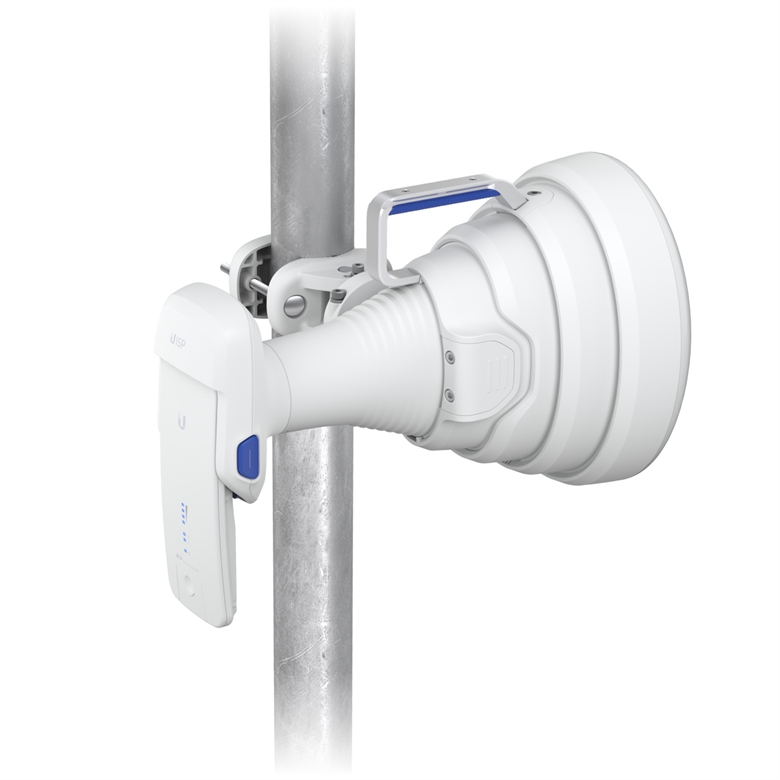

Optimize your point-to-multipoint wireless links with the Ubiquiti UISP-Horn antenna, designed to provide high isolation and reduce interference in congested network environments. It operates across a wide frequency range of 5.15 to 6.875 GHz, with 30 directional coverage and link ranges exceeding 15 km under suitable conditions. Its IPX6-rated weather-resistant enclosure and pole-mount design make it suitable for outdoor installations. It is compatible with selected airFiber 5XHD, LTU Rocket, and airMAX Rocket Prism AC radios.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yape or Bank Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
General |
|
|---|---|
| Brand | Ubiquiti |
| Model | UISP-HORN |
| Standards | No Wi-Fi |
| Maximum Range | 15+ km PtMP link range. |
| Type | Pole |
| Antennas | Directional horn antenna; 30 azimuth beamwidth and 25 elevation beamwidth (at - 6 dB). |
| Dimensions(cm) | 28.2 × 22.4 × 38 cm |
| Weight | Device: 3.06 kg
mount: 0.92 kg. |
Key Features |
|
| Band | Single Band |
| Frequency | 5.15-6.875 GHz |
| Features | - High-isolation horn antenna for point-to-multipoint wireless links.
- Operating frequency range: 5.156.875 GHz. - Azimuth beamwidth: 30 at 6 dB. - Elevation beamwidth: 25 at 6 dB. - Electrical downtilt: 0. - Maximum VSWR: 2:1. - Front-to-back ratio: 4550 dB typical; 40 dB minimum. - IPX6 weatherproofing. - UV-stabilized polycarbonate and aluminum alloy enclosure. - Pole mounting with included alignment mount. - Mechanical adjustment: 20 elevation and 25 azimuth. - Compatible with AF-5XHD, LTU Rocket and Rocket Prism 5AC, using the included WaveGuide adapter. - Wind survivability: up to 200 km/h. - Wind loading: 90 N at 200 km/h. - Pole diameter: 2570 mm. - NDAA compliant. |
Warranty
Warranty:
Ubiquiti Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Ubiquiti for you. You may also contact Ubiquiti directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Ubiquiti and are final.
