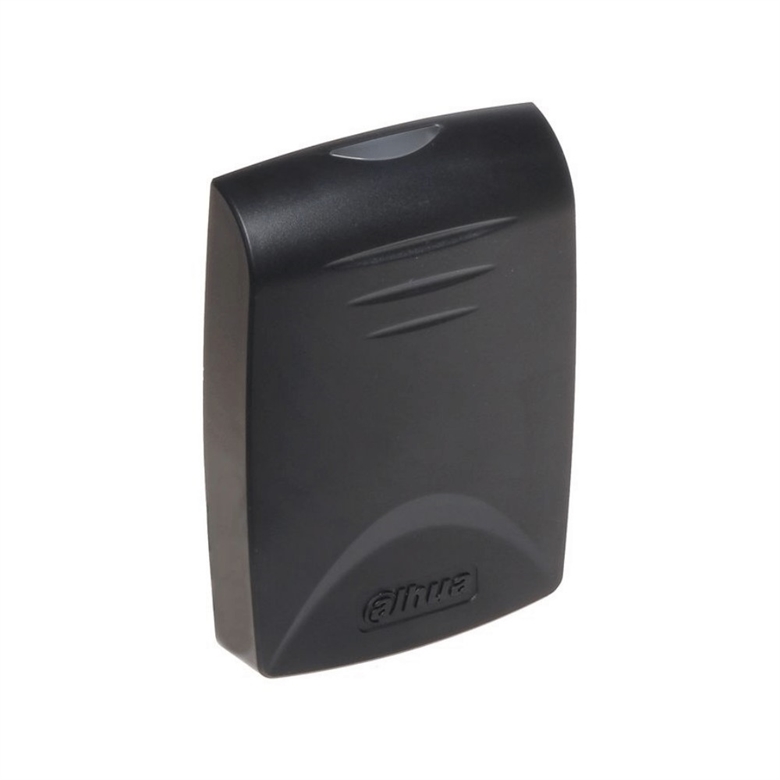

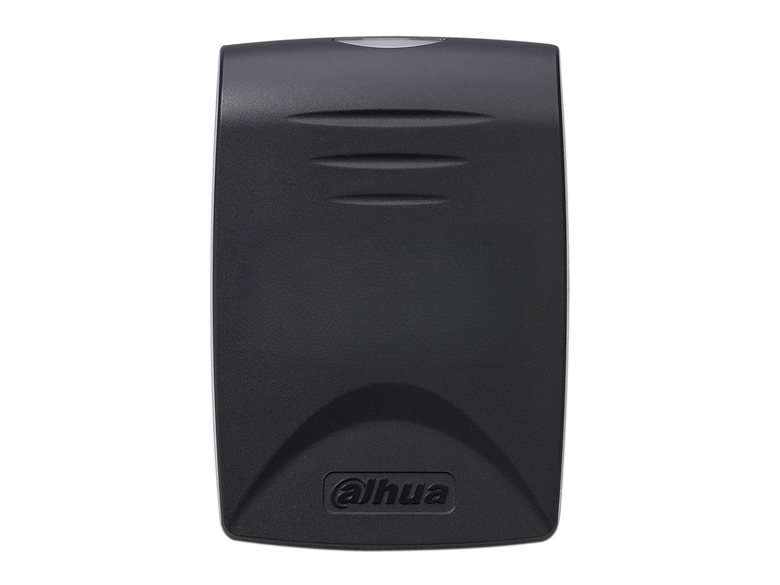

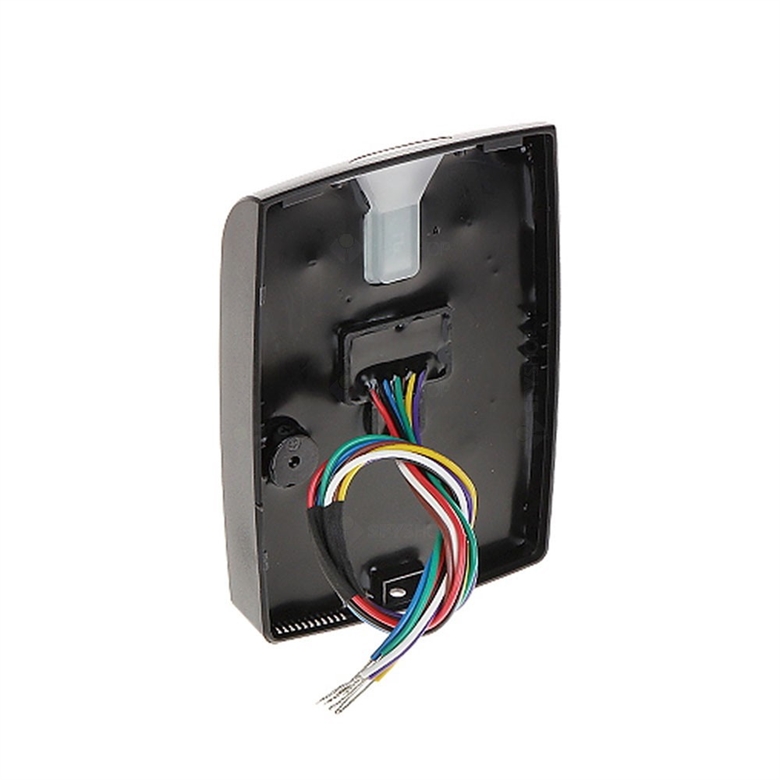

Dahua DHI-ASR1100B - Waterproof RFID Card Reader, MIFARE, 13.56 MHz, Built-in Relay, IP67, Black
-
Dahua DHI-ASR1100B | RFID Card Reader | MIFARE | 13.56 MHz | IP67 | BlackIn stock$28.54* Taxes not included
The Dahua DHI-ASR1100B is a waterproof RFID access control reader designed for reliable MIFARE card authentication in demanding environments. It features contactless 13.56 MHz card reading, Wiegand and RS485 communication, a built-in relay for door lock control, tamper detection, audible and visual indicators, and IP67 protection. Its surface-mount design makes it suitable for outdoor access control installations.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Dahua |
| Model | DHI-ASR1100B |
| Type | Card Reader |
Specifications |
|
| Specifications | - Contactless RFID card reader.
- Compatible with 13.56 MHz MIFARE IC cards. - Maximum reading distance: 68 cm, according to original Dahua documentation. - Response time: less than 0.1 seconds. - Wiegand and RS485 communication. - Built-in relay for lock control. - Watchdog function for tamper/lockup protection. - Buzzer and LED indicators. - IP67 water-resistant protection. - Surface-mount installation. - Operating temperature: -30C to +60C. - Black housing. - Power supply: 915 VDC, 100 mA. - Port overload protection. |
Features |
|
| Package Contents | - Dahua DHI-ASR1100B RFID Reader
- Accessories |
Dimensions |
|
| Dimensions (mm) | 72 × 102 × 18 mm |
| Weight | 0.20 kg |
Warranty
Warranty:
Dahua Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Dahua for you. You may also contact Dahua directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Dahua and are final.
