Nordson Electronic - Waterproof Electromagnetic Lock for Access Control, 544kg Holding Force (1200lbs), IP68 Weatherproof Rated, Premium Stainless Steel Casing, Fail-Safe System
-
Nordson Waterproof Electromagnetic Lock | 544kg Holding Force | IP68 Rated | Stainless SteelIn stock$71.39* Taxes not included
Ultimate weather-proof security for high-traffic entryways! The Nordson electromagnetic lock offers top-tier access control for heavy-duty gates and exterior commercial doors. Engineered with a massive 1200 lbs holding force and an IP68 waterproof rating, it delivers reliable perimeter defense under the harshest environmental conditions. The premium stainless steel housing eliminates mechanical wear, ensuring long-term durability and trouble-free operation with zero maintenance.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Nordson Electronic |
| Model | NS-NW-600 |
| Type | Smart Lock |
Specifications |
|
| Specifications | - Anti-residual magnetism design
- Current draw: 12V/500mA - 24V/250mA - Fail-Safe mode (Power to lock) - Holding force: 600kg (1200lbs) - IP68 Waterproof rating - Operating voltage: 12VDC or 24VDC (Adjustable) - Shell material: Premium stainless steel |
Features |
|
| Features | - Fully sealed waterproof structure for reliable outdoor applications
- High-grade stainless steel casing provides superior corrosion resistance - Hoisting design for faster, safer, and more accurate top-frame mounting - Integrated MOV surge protection prevents electrical backlash damage - No mechanical wear ensuring a completely silent and extended lifetime operation |

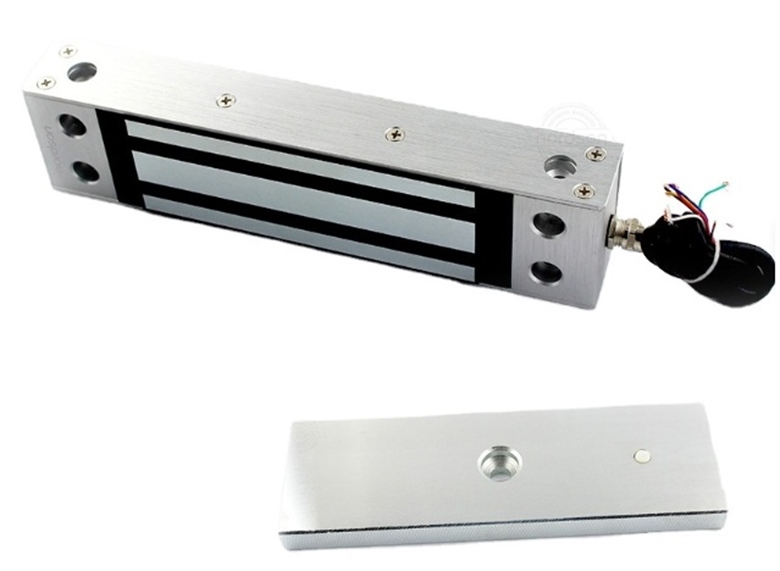

| Package Contents | - 1 x Armature plate
- 1 x Electromagnetic lock body - 1 x Installation manual - 1 x Mounting hardware kit (screws, pins, and tamper nuts) |
Dimensions |
|
| Dimensions (mm) | - Armature plate: 185 x 57 x 13
- Lock body: 266 x 67 x 39 |
| Weight | 4.5 kg |
Warranty
Warranty:
Nordson Electronic Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Nordson Electronic for you. You may also contact Nordson Electronic directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Nordson Electronic and are final.
