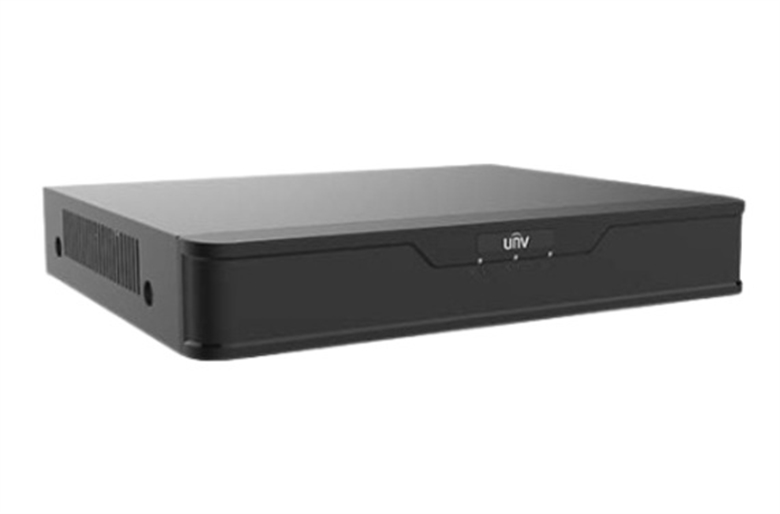

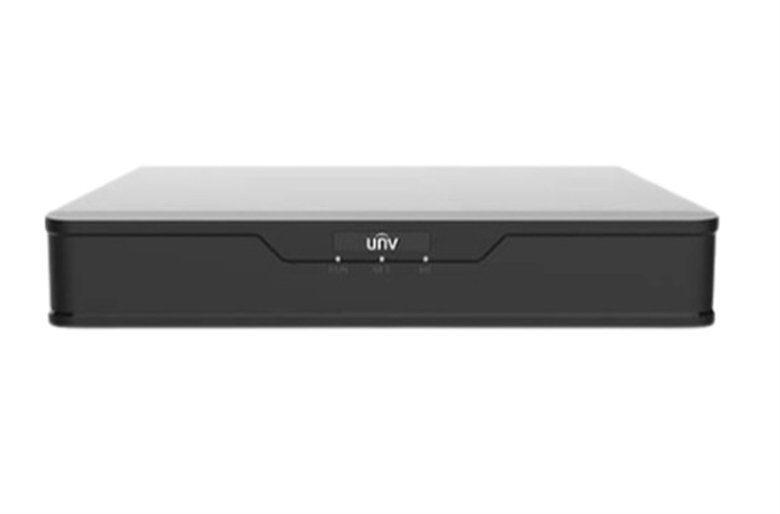

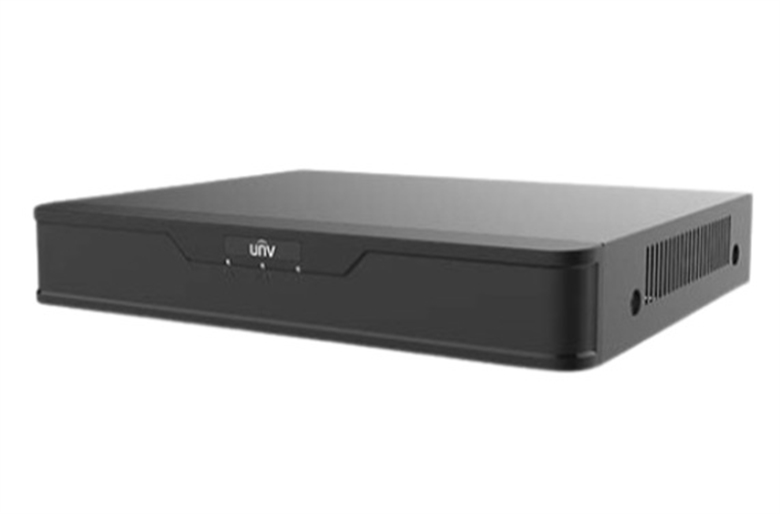

Uniview Series 3 - XVR System, 16 Channels, 5MP Lite, Up to 8TB, HDMI, VGA
-
Uniview Series 3 | XVR | 16 Channels | 5MP LiteIn stock$82.62
-
In stock$99.09
-
In stock$181.49
Optimize and modernize your residential or commercial security system with the Uniview UN-XVR301-16G3 hybrid digital video recorder. Featuring advanced H.265 compression technology and 16 self-adaptive analog channels, this device provides flexible integration for multi-technology cameras up to 5MP Lite. Its support for audio over coax and seamless mobile app connectivity guarantees crisp, round-the-clock remote monitoring and centralized control.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Uniview |
| Model | XVR301-16G3 |
| Serie | UN-XVR301-16G3 |
| Type | DVR |
Recording Details |
|
| Channels | 16 Channels |
| Inputs | 16x Coaxial |
| Audio Inputs | - 1-channel, RCA
- Coaxial audio input (up to 16 channels via compatible TVI cameras) |
| Disk Slots | 1x SATA Interface |
| Max Capacity | Up to 8TB |
| Max Resolution | 1080p |
| Max Frame Rate | - 6 fps at 5MP Lite
- 8 fps at 4MP Lite - 12 fps at 1080p Lite - 12 fps at 720p |
| Compression Format | - H.264
- H.265 |
Outputs Details |
|
| PoE | No |
| Audio Outputs | 1-channel, RCA |
| Other Ports | - 1x RJ-45 10M/100M self-adaptive Ethernet interface
- 2x USB 2.0 ports |
| Video Ports | 1x HDMI 1x VGA |
| Resolution per Ouputs | 1024x768/60Hz, 1280x720/60Hz, 1280x1024/60Hz, 1600x1200/60Hz, 1920x1080/50Hz, 1920x1080/60Hz (Simultaneous HDMI and VGA output)
|
Features |
|
| Features | - 5-in-1 hybrid access (supports TVI, AHD, CVI, CVBS, IP)
- Adaptive signal detection - Audio over coaxial cable support (TVI only) - Long distance transmission over coaxial cabling - ONVIF and RTSP protocol conformance - Simultaneous HDMI and VGA output display |
Dimensions |
|
| Dimensions(cm) | 26.00 × 4.70 × 22.60 |
| Weight | 1.10 kg (Without HDD) |
Warranty
Warranty:
UniView Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with UniView for you. You may also contact UniView directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by UniView and are final.
