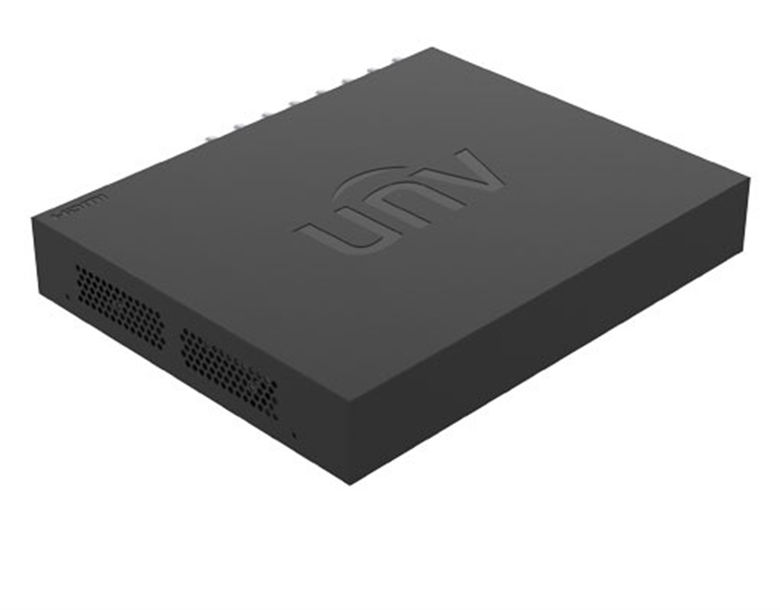

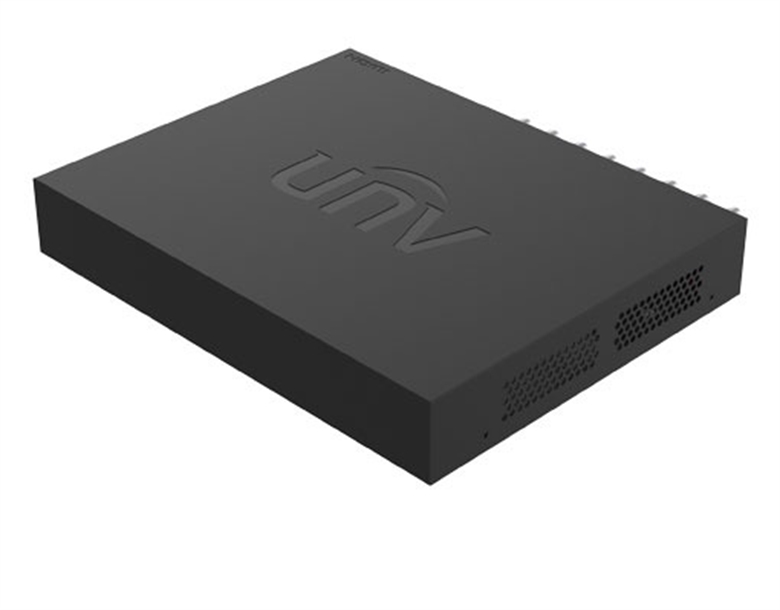

Uniview UN-XVR301-16F - Hybrid XVR Recorder, 16 Analog Channels + 2 IP Channels, 1080P Lite, Up to 6TB, HDMI, VGA
-
In stock$26.69
-
In stock$44.28
-
Uniview UN-XVR301-16F | Hybrid XVR | Up to 6TBIn stock$77.09
The Uniview UN-XVR301-16F is designed for residential, commercial, and legacy infrastructure upgrade surveillance systems. Thanks to its 5-in-1 hybrid compatibility (TVI, AHD, CVI, CVBS, and IP), it delivers excellent performance for managing 16 conventional analog cameras alongside additional high-definition IP channels. Furthermore, it features efficient H.265 compression technology to maximize storage capacity, audio-over-coax support on selected channels, and robust network protection to ensure secure and continuous monitoring.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Uniview |
| Model | UN-XVR301-16F |
| Type | DVR |
Recording Details |
|
| Channels | 16 Channels |
| Inputs | 16x Coaxial |
| Audio Inputs | Audio over coaxial cable (only for TVI cameras)Spanish |
| Disk Slots | 1x SATA Interface |
| Max Capacity | Up to 6TB |
| Max Resolution | 8K |
| Max Frame Rate | - 12 fps @ 1080P Lite
- 15 fps @ 720P -30 fps @ IP (8MP/4MP/1080P/720P/D1) |
| Compression Format | - H.264
- H.265 |
Outputs Details |
|
| PoE | No |
| Audio Outputs | Audio over coaxial cable (Output via HDMI mapping / TVI coaxial support) |
| Other Ports | - 1 x RJ45 10M/100M self-adaptive Ethernet Interface
- 2 x USB2.0 (Rear panel) |
| Video Ports | 1x HDMI 1x VGA |
| Resolution per Ouputs | - VGA :1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- HDMI: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
Features |
|
| Features | - 16-channel BNC input, synchronous playback, and snapshot up to 704*576 resolution
- Audio over coaxial cable and long transmission distance support - Support for adaptive multi-technology cameras and coaxial upgrades - Support for H.265/H.264 formats and standard camera protocols - Simultaneous video outputs and motion detection features |
Dimensions |
|
| Dimensions(cm) | 25.3 cm x 4.2 cm x 21.2 cm |
| Weight | 0.85 kg |
Warranty
Warranty:
UniView Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with UniView for you. You may also contact UniView directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by UniView and are final.
