Uniview UN-XVR301-04F - Hybrid XVR Recorder, 4 Analog Channels + 2 IP Channels, 1080P Lite, Up to 6TB, HDMI, VGA
-
Uniview UN-XVR301-04F | Hybrid XVR | Up to 6TBIn stock$26.69
-
In stock$44.28
-
In stock$77.09
The Uniview UN-XVR301-04F is designed for residential and medium-sized commercial video surveillance systems. Thanks to its 5-in-1 adaptive pentabrid access, it offers excellent performance by automatically integrating TVI, AHD, CVI, CVBS, and IP cameras with 1080P Lite recording resolution. In addition, it features advanced H.265 compression technology to optimize storage, audio-over-coax support for comprehensive security, and full remote compatibility through the EZView app.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Uniview |
| Model | UN-XVR301-04F |
| Serie | XVR301-F Series |
| Type | DVR |
Recording Details |
|
| Inputs | 4x Coaxial |
| Audio Inputs | 4-Ch audio-over-coaxial cable (only for TVI cameras) |
| Disk Slots | 1x SATA Interface |
| Max Capacity | Up to 6TB |
| Max Resolution | 1080p |
| Max Frame Rate | - 25 fps
- 30 fps |
| Compression Format | - H.264
- H.265 |
Outputs Details |
|
| PoE | No |
| Other Ports | - 1 RJ45 10 M/100 M self-adaptive Ethernet Interface
- 2x USB 2.0 (Rear panel) |

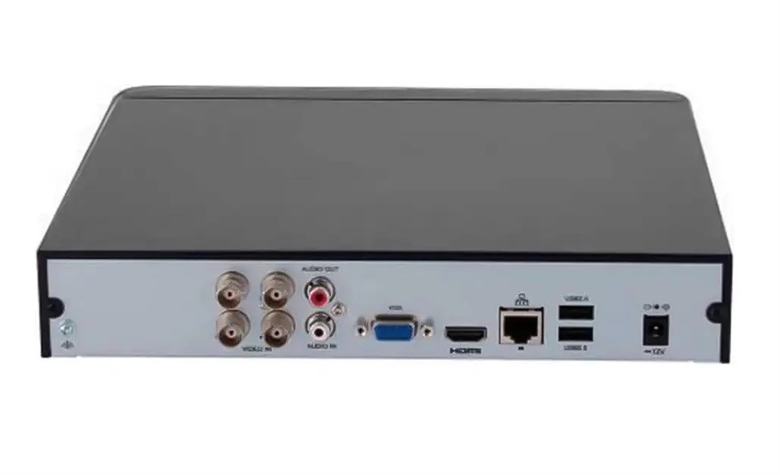

| Video Ports | 1x HDMI 1x VGA |
| Resolution per Ouputs | - HDMI: Up to 1920x1080 / 60Hz
- VGA: Up to 1920x1080 / 60Hz |
Features |
|
| Features | - 5-in-1 Adaptive entry (TVI, AHD, CVI, CVBS, IP)
- Coaxial upgrade for analog cameras - Dual-light control for UNV analog cameras under TVI - HDMI and VGA simultaneous output - Long transmission distance over coaxial cable - ONVIF and RTSP protocols support - Ultra Motion Detection (UMD) / Behavior search |
Dimensions |
|
| Dimensions(cm) | 19.0 cm × 4.2 cm × 20.2 cm |
| Weight | 0.60 kg |
Warranty
Warranty:
UniView Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with UniView for you. You may also contact UniView directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by UniView and are final.
