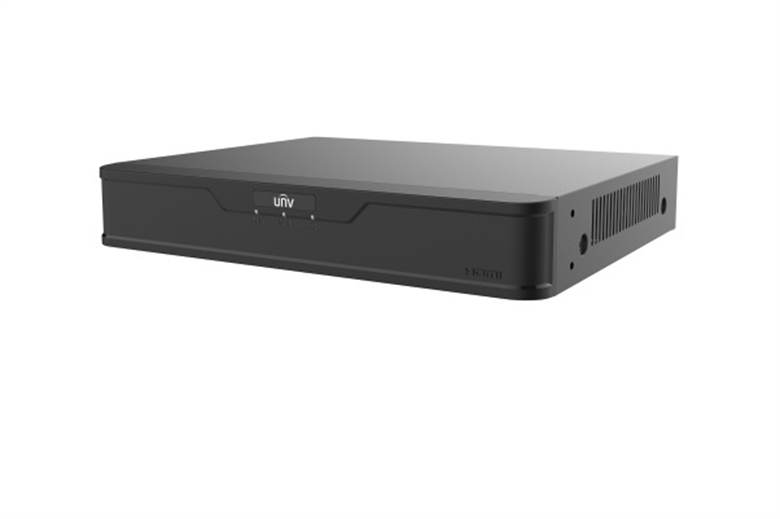

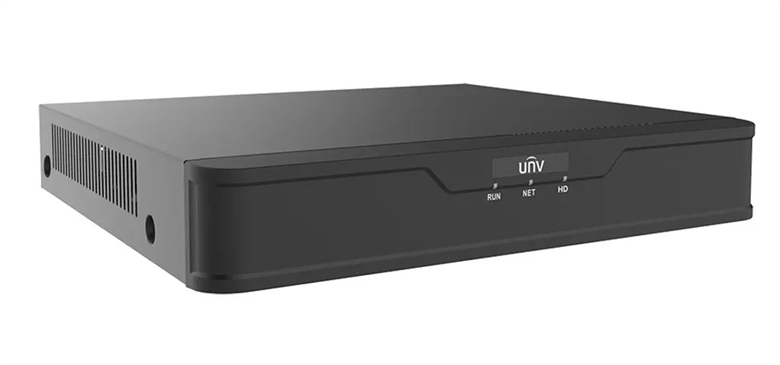

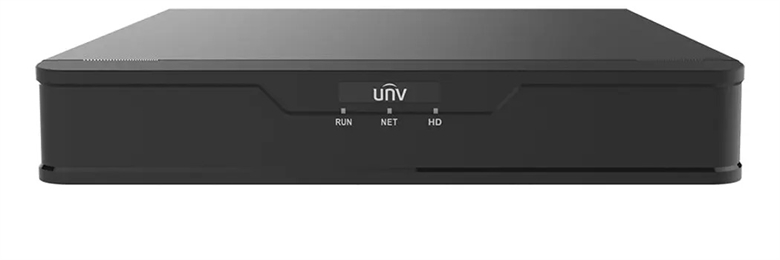

Uniview UN-XVR301-04G3 - Hybrid XVR Recorder, 4 Analog Channels + 2 IP Channels, 5MP, Up to 8TB, Smart Motion Detection, HDMI, VGA
-
Uniview UN-XVR301-04G3 | Hybrid XVR | Up to 8TBIn stock$34.22
-
In stock$49.10
The Uniview UN-XVR301-04G3 hybrid digital video recorder is designed for professional video surveillance systems in homes, businesses, and offices. Thanks to its self-adaptive pentabrid technology, it seamlessly integrates high-definition analog cameras up to 5MP and digital IP channels simultaneously. It features an advanced Smart Motion Detection (UMD) algorithm that filters alerts by humans and vehicles to significantly reduce false alarms. Additionally, it optimizes storage using H.265 compression, supports audio over coaxial, and accommodates a hard drive up to 8TB for reliable, long-term recording.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Uniview |
| Model | UN-XVR301-04G3 |
| Serie | Serie XVR301-G3 |
| Type | DVR |
Recording Details |
|
| Channels | 4 Channels |
| Inputs | 4x Coaxial |
| Audio Inputs | - 1x RCA Interface
- Audio over coaxial support (TVI cameras) |
| Disk Slots | 1x SATA Interface |
| Max Capacity | Up to 8TB |
| Max Resolution | 3K |
| Max Frame Rate | - Main stream: 5MP Lite @ 12fps
- Sub stream: D1 @ 12fp |
| Compression Format | - H.264
- H.265 |
Outputs Details |
|
| PoE | No |
| Audio Outputs | 1-ch, RCA |
| Other Ports | - 1x RJ45 10M/100M self-adaptive Ethernet Interface
- 2x USB 2.0 (Rear Panel) |
| Video Ports | 1x HDMI 1x VGA |
| Resolution per Ouputs | - HDMI: Up to 1920x1080p / 60Hz
- VGA: Up to 1920x1080p / 60Hz |
Features |
|
| Features | - 4-channel BNC adaptive input
- Control the dual-light of UNV analog cameras under TVI - HDMI and VGA simultaneous output - Long transmission distance over coaxial cable - Support audio over coaxial cable (only for TVI cameras) - Support H.265/H.264 video formats - Support mainstream cameras of ONVIF and RTSP protocols - Ultra Motion Detection (UMD) for 4 analog channels |
Dimensions |
|
| Dimensions(cm) | 26.0 cm × 4.7 cm × 22.6 cm |
| Weight | 0.9Kg |
Warranty
Warranty:
UniView Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with UniView for you. You may also contact UniView directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by UniView and are final.
