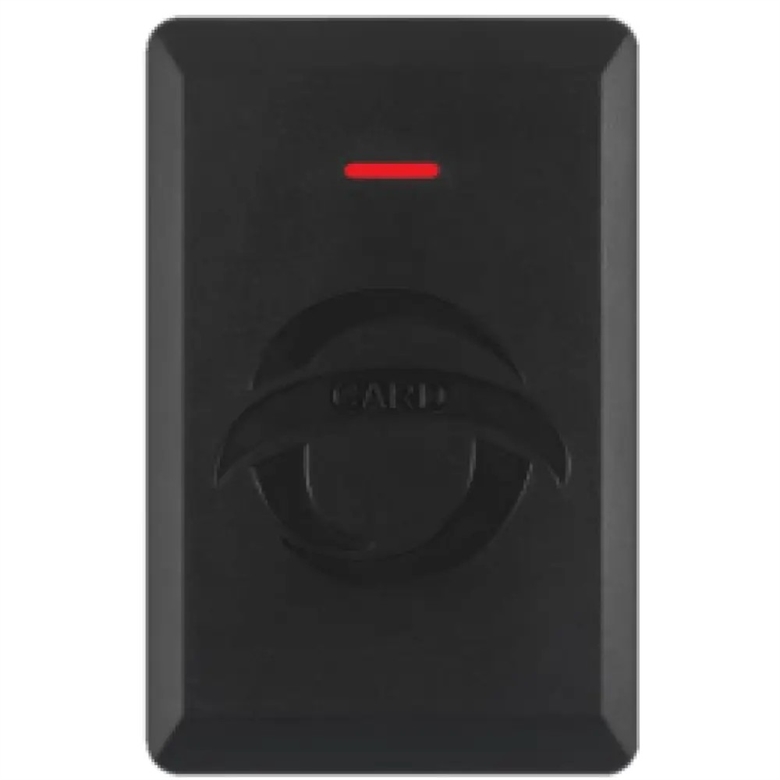

UNV UN-OEC-R1H-M - MIFARE IC Card Reader, Wiegand, Indoor/Outdoor, IP65, Black
-
UNV UN-OEC-R1H-M | MIFARE IC Card Reader | Wiegand | Indoor/Outdoor | IP65 | BlackIn stock$19.57* Taxes not included
The UNV UN-OEC-R1H-M is a contactless RF IC card reader designed for use with Uniview access controllers. It supports MIFARE I and MIFARE LITE IC cards and provides a reading distance of 0 to 3 cm with a response time of 0.2 seconds. The reader features Wiegand 26/34 output, built-in blue/green LED and buzzer indicators, and supports indoor or outdoor installation. With low operating current and a single DC power supply, it is suitable for access control, attendance management and other access-related applications.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | UNV |
| Model | UN-OEC-R1H-M |
| Type | Card Reader |
Specifications |
|
| Specifications | - Reader type: Contactless RF IC card reader
- Application: Access control, attendance management, and other scenarios - Protection: Rain, water, and dust resistant (IP65 rating) - Compatible cards: MIFARE I and MIFARE LITE IC cards - Reading distance: 0 to 3 cm - Response time: 0.2 s - Distance to terminal: 5 m - Interface: 1 × Wiegand output - Wiegand: Wiegand 26/34 - Operating frequency: 13.56 MHz - Installation: Indoor/Outdoor - LED indicator: Built-in blue/green LED - Audible indicator: Built-in buzzer - Power supply: Single DC power supply |
Features |
|
| Features | 1 × Card reader
1 × Mounting kit 1 × User guide and installation template |
Dimensions |
|

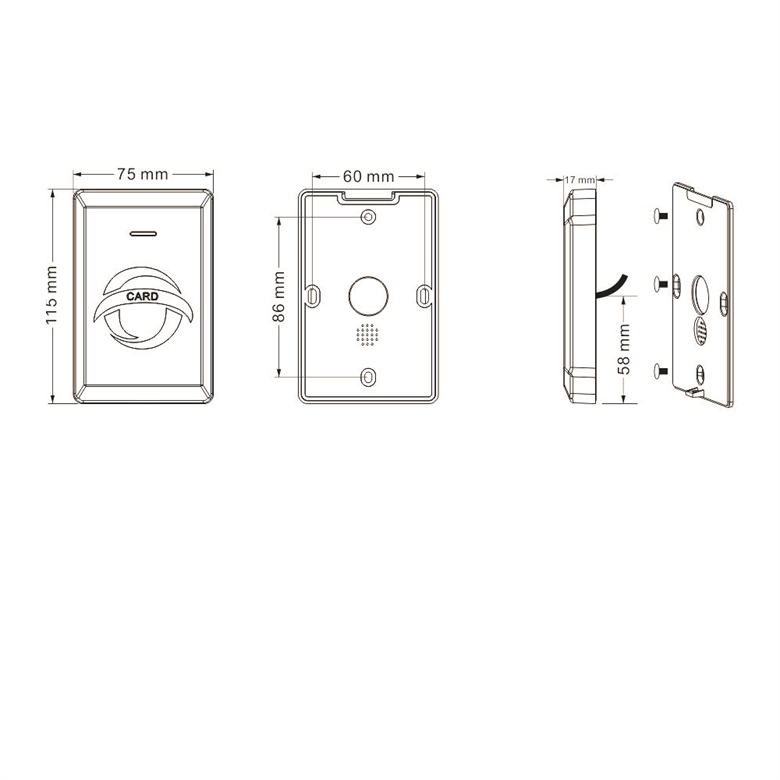

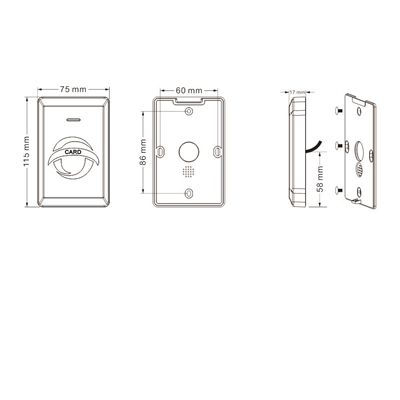

| Dimensions (mm) | 115 × 75 × 17 mm |
| Weight | 120 g |
Warranty
Warranty:
UniView Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with UniView for you. You may also contact UniView directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by UniView and are final.
