Uniview Series 3 - XVR System, 16 Channels, 8MP Lite, Up to 16TB, Dual SATA, HDMI 4K, VGA
-
In stock$82.62
-
In stock$99.09
-
Uniview Series 3 | XVR | 16 Channels | 8MP Lite 2-SATAIn stock$181.49
Maximize video retention and security resolution with the Uniview UN-XVR302-16Q3 professional hybrid video recorder. Featuring 16 self-adaptive analog channels and support for cameras up to 8MP Lite (4K), this device is engineered with a dual-bay SATA design for massive, long-term storage capacity. Its true 4K HDMI output, advanced H.265 compression, and audio-over-coax capabilities guarantee fluid, ultra-sharp, enterprise-grade centralized monitoring 24/7.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Uniview |
| Model | XVR302-16Q3 |
| Serie | UN-XVR302-16Q3 |
| Type | DVR |
Recording Details |
|
| Channels | 16 Channels |
| Inputs | 16x Coaxial |
| Audio Inputs | - 1-channel, RCA
- Coaxial audio input (up to 16 channels via compatible TVI cameras) |
| Disk Slots | 2x SATA Interfaces |
| Max Capacity | Up to 16TB |
| Max Resolution | 4k |
| Max Frame Rate | - 8 fps at 8MP Lite
- 12 fps at 5MP Lite - 15 fps at 4MP Lite - 15 fps at 3MP - 15 fps at 1080p |
| Compression Format | - H.264
- H.265 |
Outputs Details |
|
| PoE | No |
| Audio Outputs | 1-channel, RCA |

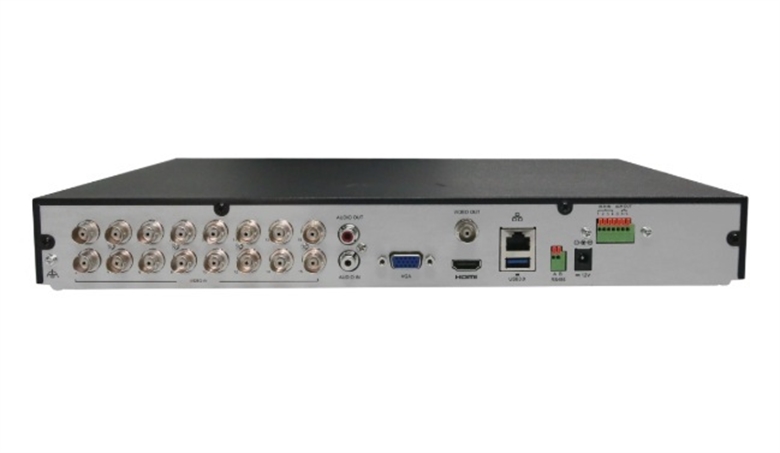

| Other Ports | - 1x CVBS output (BNC)
- 1x RJ-45 10M/100M/1000M self-adaptive Ethernet interface - 1x RS485 serial interface - 2x USB ports (1x USB 2.0 front, 1x USB 3.0 rear) - 4-channel Alarm Output - 8-channel Alarm Input |
| Video Ports | 1x HDMI 1x VGA |
| Resolution per Ouputs | - HDMI: 1024x768/60Hz, 1280x720/60Hz, 1280x1024/60Hz, 1920x1080/50Hz, 1920x1080/60Hz, 3840x2160/30Hz (4K)
- VGA: 1024x768/60Hz, 1280x720/60Hz, 1280x1024/60Hz, 1920x1080/50Hz, 1920x1080/60Hz |
Features |
|
| Features | - 5-in-1 hybrid access (supports TVI, AHD, CVI, CVBS, IP)
- Adaptive signal detection - Audio over coaxial cable support - Long distance transmission over coaxial cabling - ONVIF and RTSP protocol conformance - Support for 1-channel CVBS output - Support for HDMI output up to 4K resolution |
Dimensions |
|
| Dimensions(cm) | 38.00 × 5.30 × 32.60 |
| Weight | 2.00 kg (Without HDD) |
Warranty
Warranty:
UniView Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with UniView for you. You may also contact UniView directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by UniView and are final.
