Uniview Series 3 - XVR System, 32 Channels, 8MP Lite, Up to 16TB, Dual SATA, HDMI 4K, VGA
-
Uniview Series 3 | XVR | 32 Channels | 8MP Lite 2-SATAIn stock$202.97
Centralize and scale up your surveillance system with the high-density Uniview UN-XVR302-32Q3 hybrid video recorder. Engineered with 32 self-adaptive analog channels, this powerful device supports security cameras up to 8MP Lite (4K) and features a dual-bay SATA design for massive long-term storage capacity. Its true 4K HDMI output, Ultra H.265 compression, and audio-over-coax capabilities deliver fluid, crystal-clear, enterprise-grade monitoring for large-scale security projects 24/7.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Uniview |
| Model | XVR302-32Q3 |
| Serie | UN-XVR302-32Q3 |
| Type | DVR |
Recording Details |
|
| Channels | 32 Channels |
| Inputs | 32x Coaxial |
| Audio Inputs | - 1-channel, RCA
- Coaxial audio input (up to 32 channels via compatible cameras) |
| Disk Slots | 2x SATA Interfaces |
| Max Capacity | Up to 16TB |
| Max Resolution | 4k |
| Max Frame Rate | - 8 fps at 8MP Lite
- 12 fps at 5MP Lite - 15 fps at 4MP Lite - 15 fps at 1080p - 30 fps at 720p |
| Compression Format | - H.264
- H.265 |
Outputs Details |
|
| PoE | No |
| Audio Outputs | 1-channel, RCA |

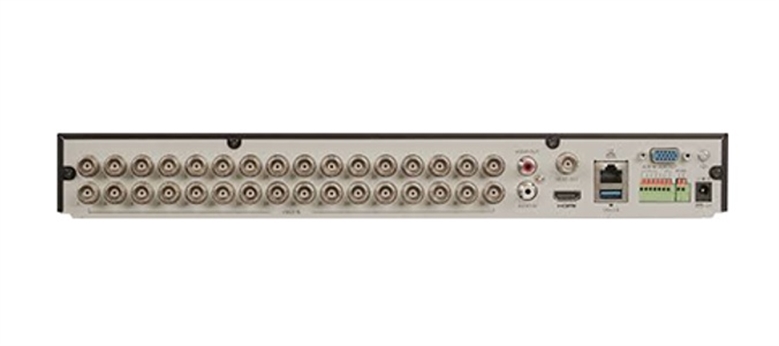

| Other Ports | - 1x CVBS output (BNC)
- 1x RJ-45 10M/100M/1000M self-adaptive Ethernet interface - 1x RS485 serial interface - 2x USB ports (1x USB 2.0, 1x USB 3.0) - 4-channel Alarm Input - 1-channel Alarm Output |
| Video Ports | 1x HDMI 1x VGA |
| Resolution per Ouputs | - HDMI: 1024x768/60Hz, 1280x720/60Hz, 1280x1024/60Hz, 1920x1080/50Hz, 1920x1080/60Hz, 3840x2160/30Hz (4K)
- VGA: 1024x768/60Hz, 1280x720/60Hz, 1280x1024/60Hz, 1600x1200/60Hz, 1920x1080/50Hz, 1920x1080/60Hz |
Features |
|
| Features | - 5-in-1 hybrid connection with adaptive access (TVI, AHD, CVI, CVBS, IP)
- Audio over coaxial cable support - Long distance transmission reliability over coaxial cabling - ONVIF and RTSP mainstream protocols conformance - Simultaneous HDMI and VGA output display - Support for 1-channel CVBS output - Support for HDMI output up to 4K resolution - Ultra Motion Detection (UMD) support on 16 channels |
Dimensions |
|
| Dimensions(cm) | 38.00 × 5.30 × 32.60 |
| Weight | 2.60 kg (Without HDD) |
Warranty
Warranty:
UniView Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with UniView for you. You may also contact UniView directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by UniView and are final.
