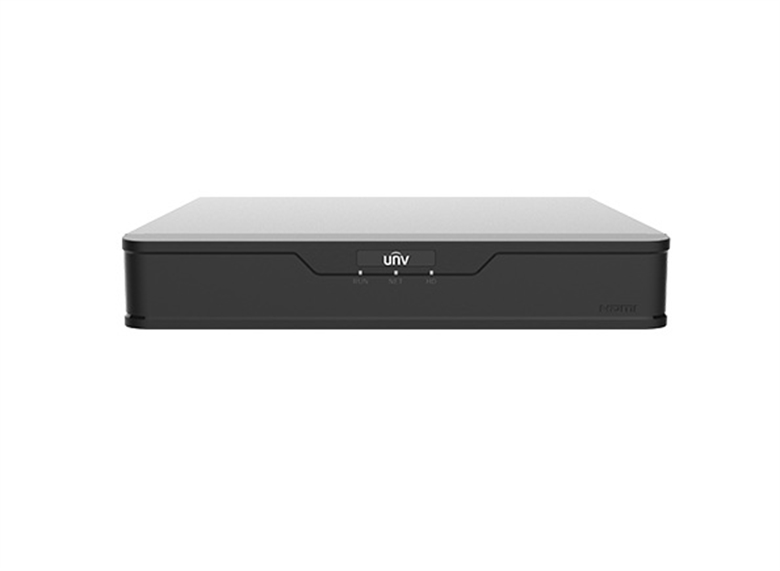

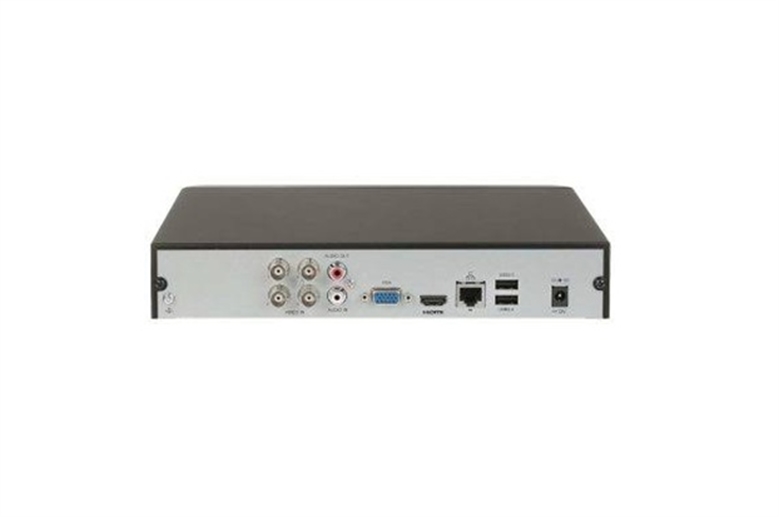

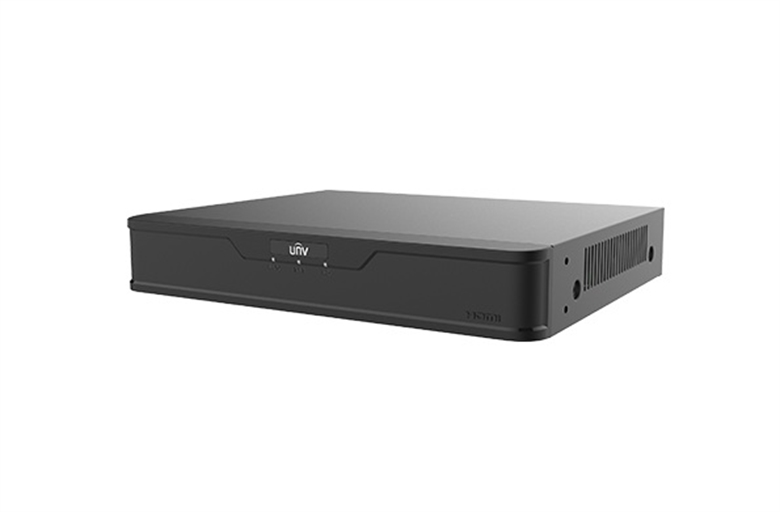

Uniview UN-XVR301-04Q3 - Hybrid XVR Recorder, 4 Analog Channels + 2 IP Channels, 8MP (4K Lite), Up to 8TB/16TB, HDMI, VGA
-
In stock$34.22
-
Uniview UN-XVR301-04Q3 | Hybrid XVR | Up to 8TB/16TBIn stock$49.10
The Uniview UN-XVR301-04Q3 is designed for residential, commercial, and corporate video surveillance systems. Thanks to its hybrid pentabrid compatibility and Audio over Coaxial (AoC) support, it offers excellent performance for high-definition video viewing and recording up to 5MP and even 8MP (4K Lite), as well as fast and smooth management of additional IP cameras. Additionally, it features H.265 compression technology to optimize storage, 4K UHD resolution HDMI video output, and a robust, reliable professional-grade design.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Uniview |
| Model | UN-XVR301-04Q3 |
| Serie | XVR301-Q3 |
| Type | DVR |
Recording Details |
|
| Channels | 4 Channels |
| Inputs | 4x Coaxial |
| Audio Inputs | - 1-ch, RCA
- Support Audio over Coaxial Cable (only for TVI cameras) |
| Disk Slots | 1x SATA Interface |
| Max Capacity | Up to 16TB |
| Max Resolution | 4k |
| Max Frame Rate | - 8fps at 8MP Lite
- 12fps at 5MP Lite - 12fps at 3K Lite -15fps at 4MP Lite - 15fps at 1080p - 30fps at 4MP (IP input) - 30fps at 720p |
| Compression Format | - H.264
- H.265 |
Outputs Details |
|
| PoE | No |
| Audio Outputs | 1-ch, RCA |
| Other Ports | - 1x RJ45 10M/100M self-adaptive Ethernet Interface
- 1x RS485 - 2x USB 2.0 |
| Video Ports | 1x HDMI 1x VGA |
| Resolution per Ouputs | - CVBS Output: 1-ch, BNC (Resolution: PAL: 704576, NTSC: 704480)
- HDMI Output: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz - VGA Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
Features |
|
| Features | - Adaptive technology for AHD, CVI, CVBS, TVI, and IP inputs
- Audio over Coaxial cable integration (exclusively for TVI standard) - High-efficiency H.265 compression protocols - Long transmission connectivity distances over traditional coaxial - ONVIF and RTSP third-party camera compatibility network protocols - Simultaneous visualization layout configuration via HDMI and VGA |
Dimensions |
|
| Dimensions(cm) | 26.0 cm × 22.6 cm × 4.7 cm |
| Weight | 1.10 kg |
Warranty
Warranty:
UniView Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with UniView for you. You may also contact UniView directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by UniView and are final.
