Uniview Uniarch Series S3 - NVR System, 16 Channels IP, Up to 6MP, Up to 6TB, HDMI, VGA
-
Uniview Uniarch Series S3 | NVR | 16-Channels IP | Up to 6MPOut of stock$61.76

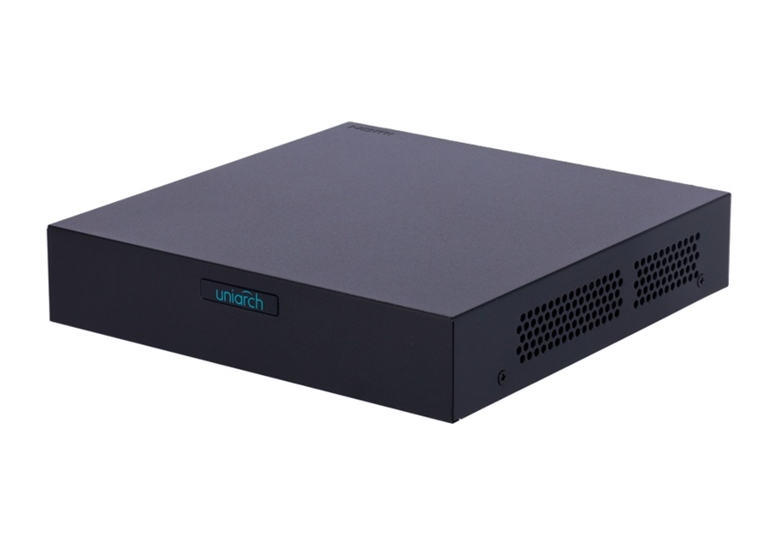

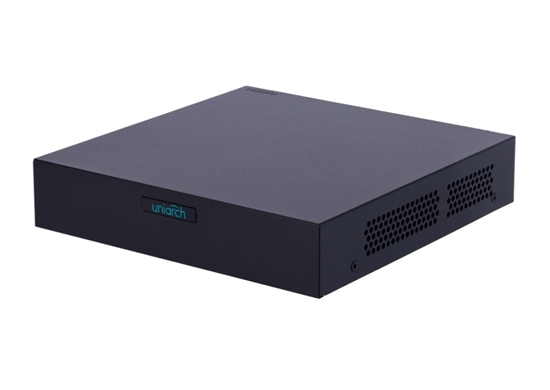

Streamline and centralize your IP network surveillance with the Uniview Uniarch UN-NVR-116S3 network video recorder. Built for residential or mid-sized commercial projects requiring high channel density, this standalone unit manages up to 16 IP channels supporting resolutions up to 6MP. Equipped with advanced camera-driven analytics including Smart Intrusion Prevention (SIP) and Ultra Motion Detection (UMD), it drastically lowers false alarm rates while its high-efficiency Ultra 265 codec minimizes storage overhead on its single 6TB SATA bay.
How to buy this product?
- 1. Add the product to your cart and proceed to checkout
- 2. Select “pickup in a store” or “delivery to house or office”
- 3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
- 4. After the payment you will receive an email with your delivery or pickup date
Specifications
Model |
|
|---|---|
| Brand | Uniarch by Uniview |
| Model | UN-NVR-116S3 |
| Serie | S3 Series |
| Type | NVR |
Recording Details |
|
| Channels | 16 Channels |
| Inputs | 1x RJ-45 |
| Audio Inputs | 1-ch, 3.5mm (Nota: Entrada de audio bidireccional mediante interfaz compartida). |
| Disk Slots | 1x SATA Interface |
| Max Capacity | Up to 64TB |
| Max Resolution | 3K |
| Max Frame Rate | - 30 fps at 1080p (6 channels decoding)
- 30 fps at 4MP (4 channels decoding) - 30 fps at 6MP (2 channels decoding) |
| Compression Format | - H.264
- H.265 - Ultra 265 |
Outputs Details |
|
| PoE | No |
| Audio Outputs | 1-channel, RCA |

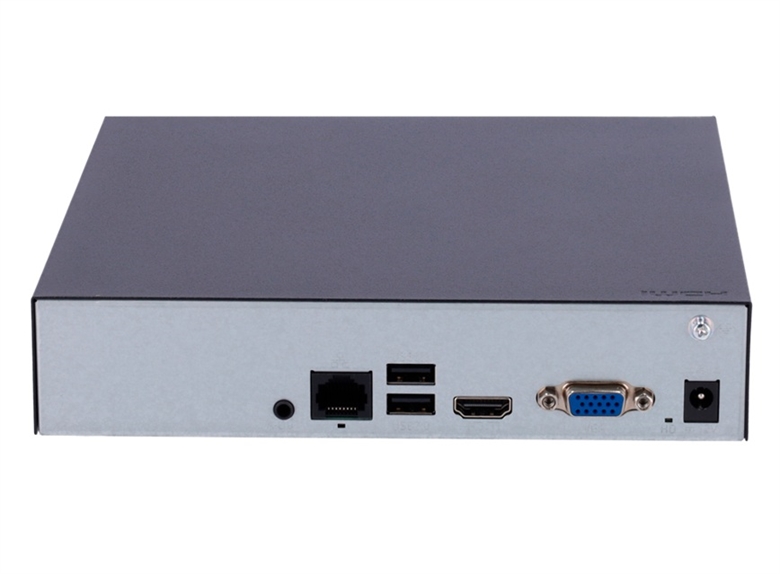

| Other Ports | - 1x RJ-45 10M/100M self-adaptive Ethernet interface
- 2x USB 2.0 ports |
| Video Ports | 1x HDMI 1x VGA |
| Resolution per Ouputs | - HDMI: 1024x768/60Hz, 1280x720/60Hz, 1280x1024/60Hz, 1600x1200/60Hz, 1920x1080/50Hz, 1920x1080/60Hz
- VGA: 1024x768/60Hz, 1280x720/60Hz, 1280x1024/60Hz, 1600x1200/60Hz, 1920x1080/50Hz, 1920x1080/60Hz |
Features |
|
| Features | - Cloud upgrade support
- HDMI and VGA simultaneous output display - ONVIF profile conformance (Profile S, Profile G, Profile T) - Smart Intrusion Prevention (SIP) analytics integration - Ultra Motion Detection (UMD) filter compatibility |
Dimensions |
|
| Dimensions(cm) | 26.00 × 4.60 × 24.30 |
| Weight | 0.79 kg (Without HDD) |
Warranty
Warranty:
Uniarch Standard Warranty
Warranty Period:
1 Year Warranty
Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with Uniarch for you. You may also contact Uniarch directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by Uniarch and are final.
